3.2 inch Inch IPS Round Circular LCD panel 480x480 Screen for Industrial LCD Smart Home Monitor

1, Product model : ZXTLCD-BAR320MGD ; 2, Screen size : 3.2" LCD Panel ; 3, Active display area : 53.5(H) X 53.5(V)mm ; 4, Resolution : 480(V) X 480(H) ; 5, Interfaces : RGB(24BITS)+SPI.

Description Package Information Inquiry

Nowadays,round display’s request is becoming larger and larger,they are mainly used on high-end wearable devices.

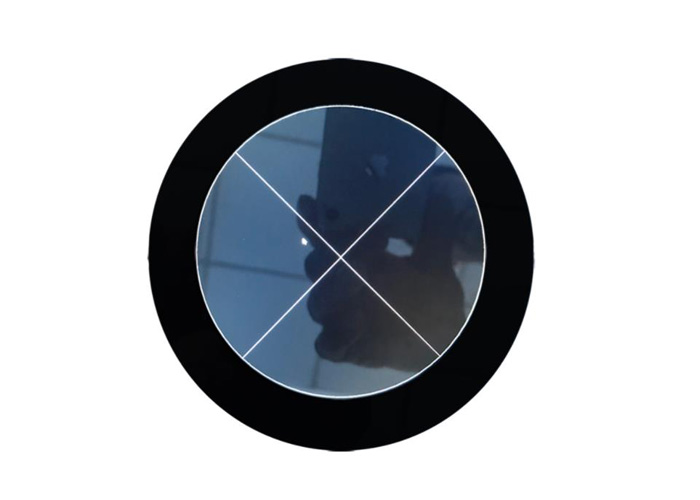

round lcd panel.jpg

The specification:

Product model	ZXTLCD-BAR320MGD
Screen size	3.2" LCD Panel
Active display area	53.5(H) X 53.5(V)mm
Resolution	480(V) X 480(H)
Brightness	450cd/m2
Contrast ratio	800:1
Display color	16.7M
Product dimension	58.0(Typ.) X 61.5(Typ.)
Interfaces	RGB(24BITS)+SPI

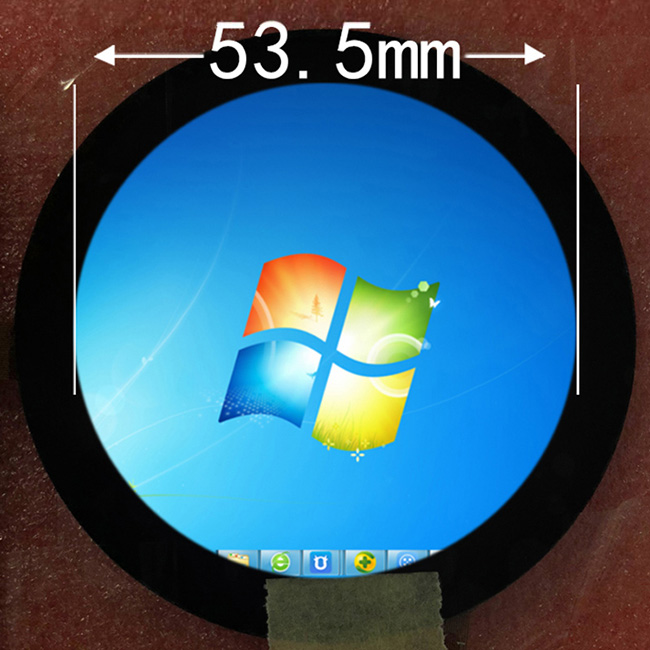

circular tft display.jpg

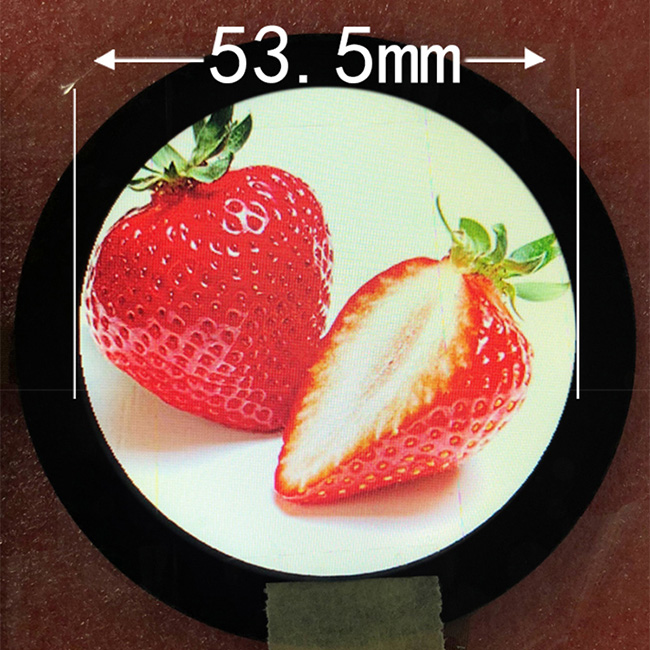

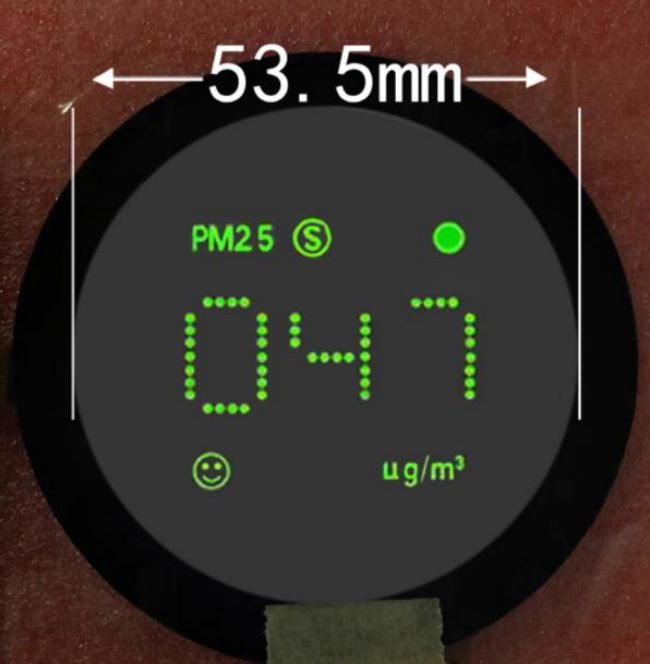

Physical Photp as follows :

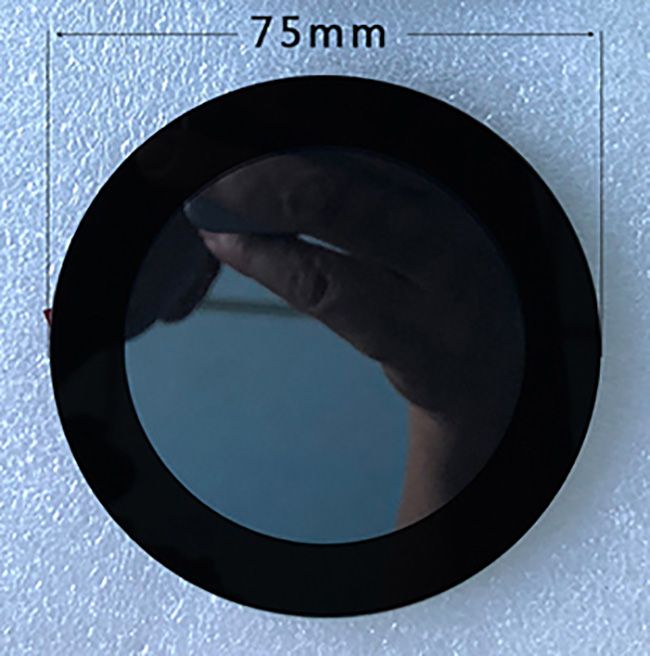

ZXTLCD providing different size of round display, it contains round lcd display and round amoled display.

If you would like to discuss your requirement or need any additional information on our 3.2 inch round lcd panel, then please do not hesitate to contact our sales team.
