26.5 inch square lcd screen
26.5 inch square lcd screen
Multiple options available including square panel, panel and kit as well as enclosed square LCD monitor, and square chassis monitors. Interactive touchscreen options are also available as well as fully customized solutions to specifically meet your project requirements whether that be high brightness, ruggedization, extra thick touchscreens, or various input options such as HDMI, VGA, DVI etc.
The specification | ||
Model No | Product model | ZXTLCD-BAR265ADGT |
LCD Screen Panel | Screen size | 26.5" LCD Panel |
Active display area | 475.776(H) X 475.776(V)mm | |
Resolution | 1920V) X 1920(H) | |
Brightness | 500cd/m2 | |
Contrast ratio | 1000:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89/89/89/89U/D/L/R) | |
Response time | 30ms | |
Lifespan | 50000 hours | |
PCB Board | CPU | MSTAR V56(TSUMV56RUU) |
Interfaces | USB2.0 | |
HDMI*2 | ||
TF/Audio/DC IN | ||
machine specification | Operating voltage | AC 100V - 240V |
Power consumption | ≤44W | |
Product size | 494.4(H)X494.4(V)X23.9(D)mm | |
Installation | wall-mounted | |
Apperance material | Metal shell | |
Net weight | ≤2.6KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature:-20℃~60℃ |
Humidity:5%~95% | ||
Atmospheric Pressure:86kPa~104kPa | ||
Working Environment | Temperature:0℃~50℃ | |
Humidity:10%~85% | ||
Atmospheric Pressure:86KPa~104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1pcs | |

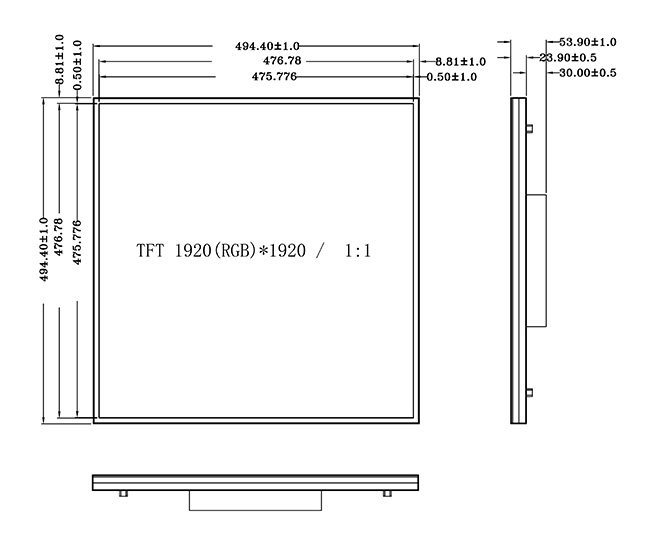

The design drawing as follows |

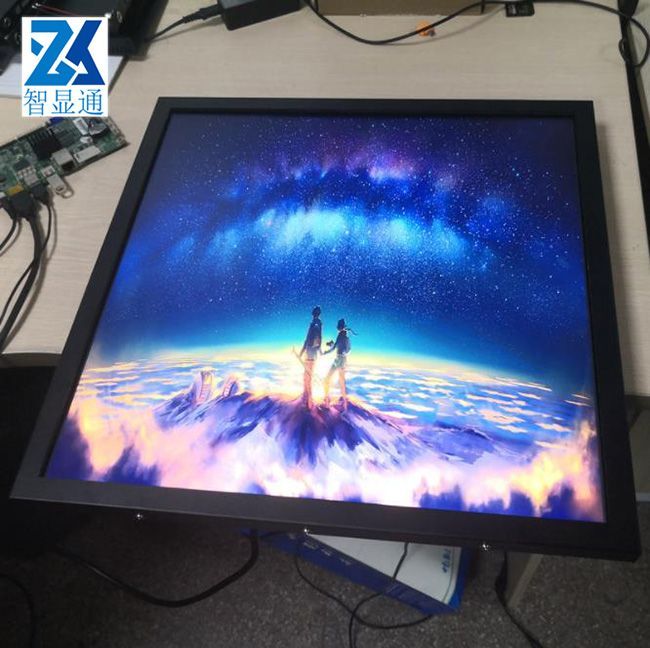

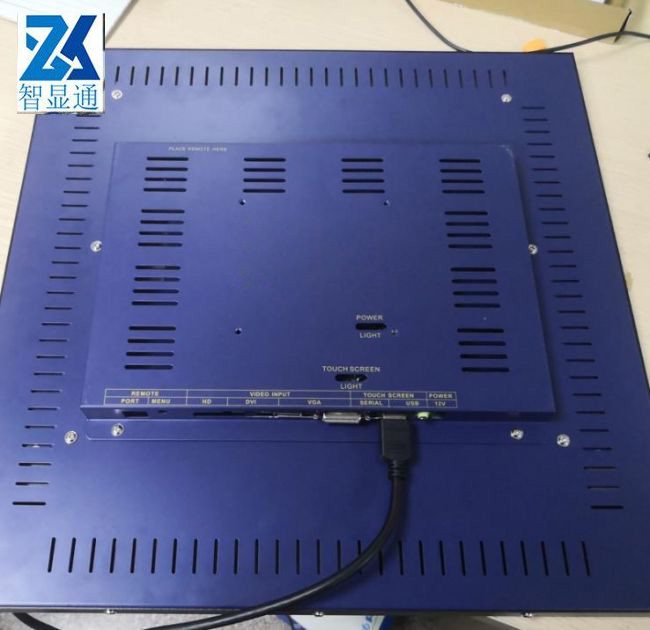

The physical photo as follows :
If you would like to discuss your requirement or need any additional information on our 26.5 inch square lcd screen, then please do not hesitate to contact our sales team.
