33.1 inch square lcd displays all in one PC

1)Resolution : 1910(RGB) X 1910 ; 2)Active screen size: 594(Length) x 594(Width)mm ; 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) ; 4)Display colors : 16.7M ; 5)Contrast ratio : 4000:1 ; 6)Response Time : 9.5ms ; 7)Brightness: 400 cd/㎡(Typ.) ; 8) Power & Consumption : DC 12V 2A, 40w ; 9) Installation : Embedded, wall-mounted ; 10) CPU : MSTAR V56(TSUMV56RUU) ; 11) Intweface : HDMI*2/USB/AV/TF/Audio/DC IN . 12)Outline dimension:647(L)*647(W)X49.5(D)mm

Description Package Information Inquiry

Square LCD displays, square screens, and square monitors are increasingly popular in retail, museum, digital art, amusement and Gaming design installs where a niche and unique display is required. Particularly popular in Museum displays and display designs as well as art installs.

monitor ultra wide.jpg

The specification
Model No	Product model	ZXTLCD-BAR331MHMJ
LCD Screen Panel	Screen size	33.1" LCD Panel
	Active display area	594(H) X 594(V)mm
	Resolution	942(V) X 942(H)
	Brightness	400cd/m2
	Contrast ratio	4000:1
	Display color	1.07B 68% NTSC
	Backlight type	a-Si TFT-LCD
	Viewing angles	89/89/89/89 (Typ.)(CR≥10)
	Response time	8 (Typ.)(G to G) ms
	Lifespan	>30000 Hrs（24Hrs*7)
Main board	CPU	Intel I5 processor
	Ram	4GB DDR4
	Flash memory	64GB EMMC
	Interfaces	2 x USB2.0
		HDMI
		DC/Audio/VGA/LAN
machine specification	Operating voltage	AC100 ~ 230V
	Power consumption	≤40W
	Product size	647(H)X647(V)X49.5(D)mm
	Speaker	Speaker*2
	Installation	Wall hanging
	Appearance material	Metal shell
	Net weight	≤9KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-10℃～50℃
	Storage Environment	Humidity：10%～60% Non-Condensing
	Working Environment	Temperature：-20℃～60℃
	Working Environment	Humidity：≤ 90℃ Non-Condensing
Packing list	Squad lcd Monitor	1pcs
Packing list	Power Cable	1Pcs

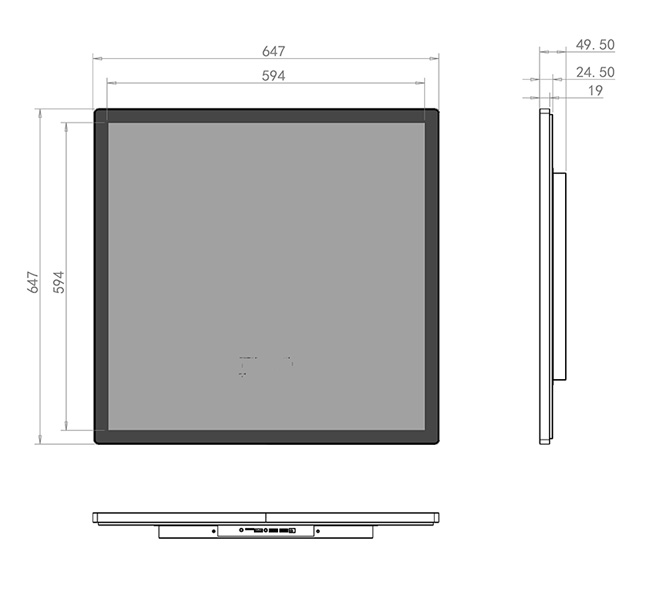

the design drawing as follows

Squad lcd tv.jpg

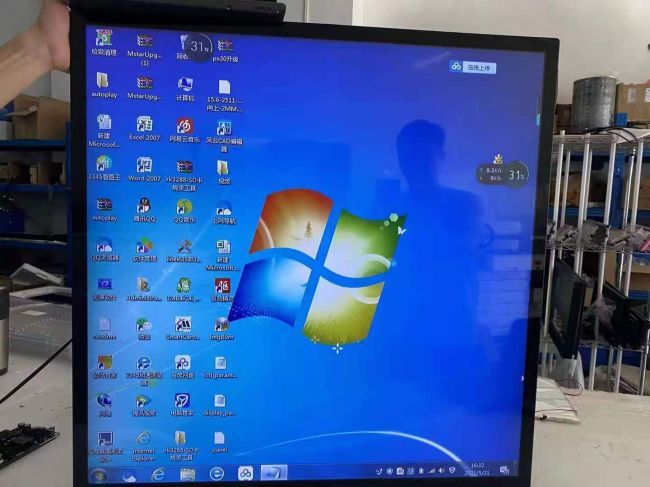

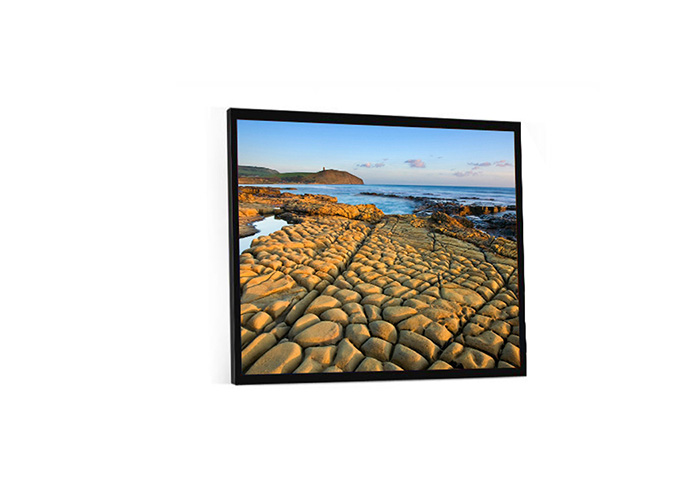

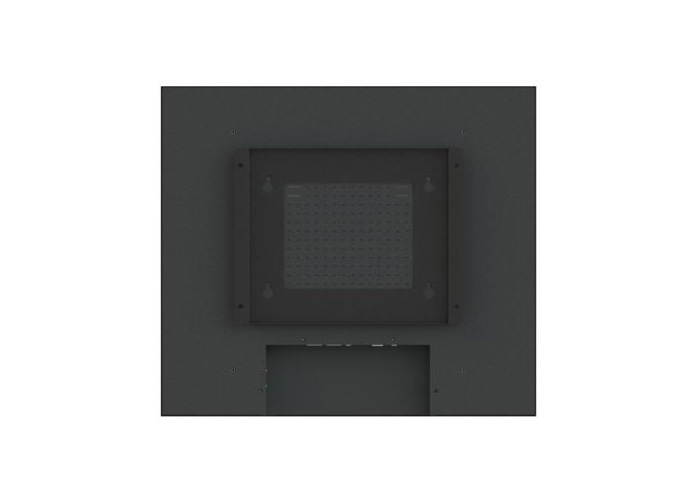

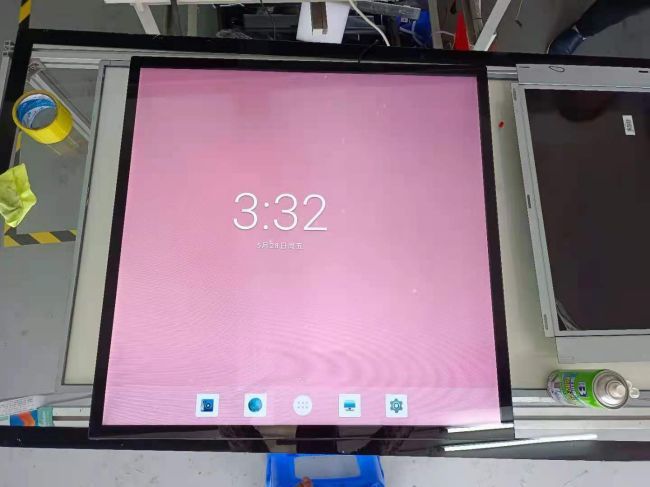

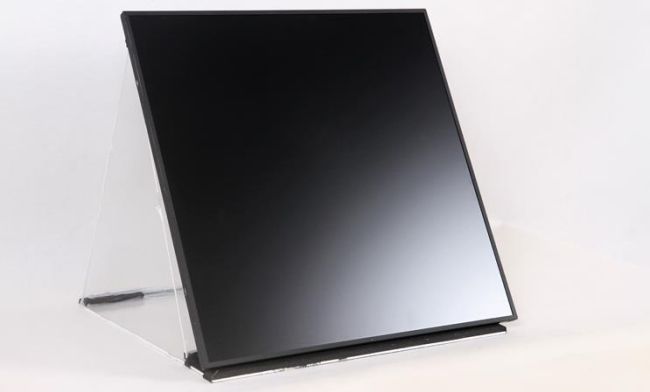

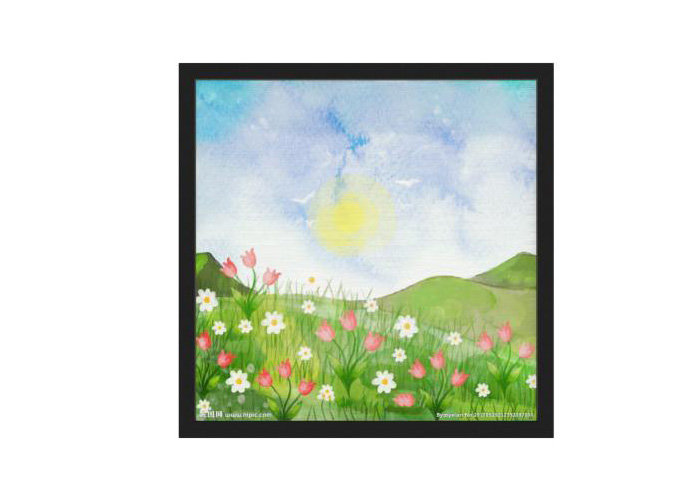

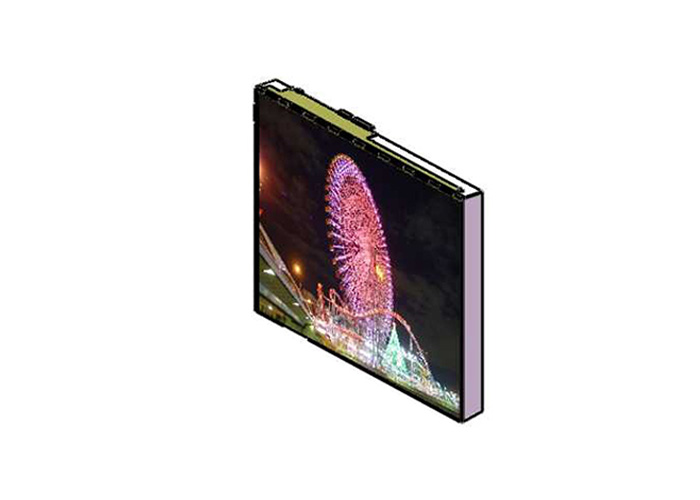

The physical photo as follows :

ultra wide screen.jpg

ultra wide display.jpg

If you would like to discuss your requirement or need any additional information on our 33.1 inch square lcd displays, then please do not hesitate to contact our sales team.
