Shelf Mounting 35 inch digital shelf display LCD advertising player for Retail shop shelf advertising
Shelf Mounting 35 inch digital shelf display LCD advertising player for Retail shop shelf advertising
Shelf display is a new concept lcd advertising screen designed for the shelf. Compared with the traditional lcd screen, it can be customized according to the size of the shelf, with high definition, high luminous efficiency and high color saturation and ultra thin for branding or advertising on various shelves as well as price tags and information display on the edge of shelf.
The specification | ||
Model No | Product model | ZXTLCD-BAR350AXCG |
LCD Screen Panel | Screen size | 35" LCD Panel |
Active display area | 878.4(H) X 48.19(V)mm | |
Resolution | 2880(V) X 158(H) | |
Brightness | 400cd/m2 | |
Contrast ratio | 3000:1 | |
Display color | 16.7M | |
Backlight type | LED | |
Viewing angles | 178(H)/178(V) | |
Response time | 9.5ms | |
Lifespan | >30000 Hrs（24Hrs*7) | |
Main board | CPU | T972 ,Quad core A35 |
RAM | 2gb | |
ROM | 8gb EMMC | |
System | Android 9.0 | |
Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI | |
RTC real time clock | Support timing on / off function | |
Interfaces | 1*USB2.0 | |
1*OTG USB | ||
1*RJ45 | ||
Video formats | AVI,H.264 ,MKV,MP4,MPEG etc. | |
Audio formats | MP4、WAV、APE、FLAC、AAC etc. | |
Photo formats | PG, JPEG, BMP, PNG, GIF, | |
machine specification | Operating voltage | DC 12V / 2A |
Power consumption | ≤24W | |

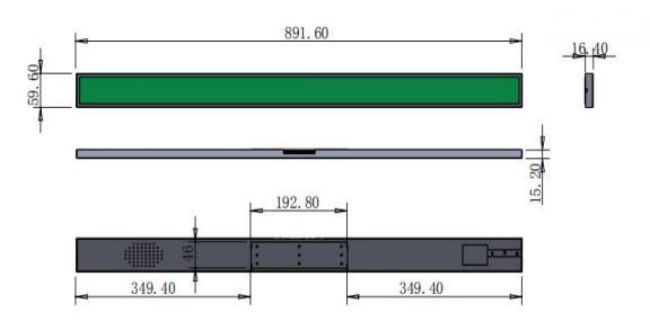

Product size | 891.6(H)X59.6(V)X15.2(D）mm | |
Speaker | no | |
Installation | wall-mounted | |
Appearance material | Metal shell | |
Net weight | ≤1.4KG | |
Appearance color | Black | |
Environmental | Storage Environment | Temperature：-10℃～55℃ |
Humidity：10%～60% Non-Condensing | ||
Working Environment | Temperature：0℃～45℃ | |
Humidity：≤ 90℃ Non-Condensing | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |
Support special requirements customization | ||

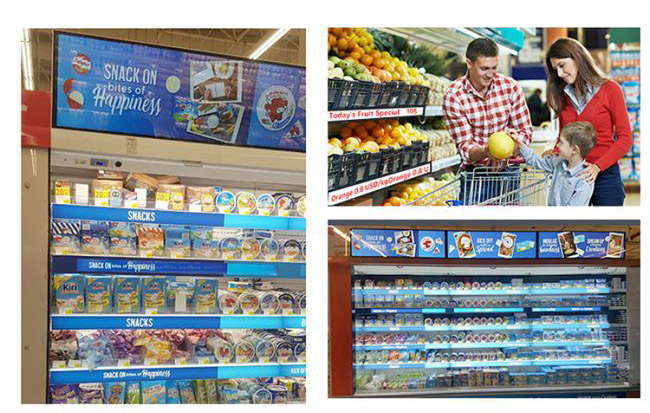

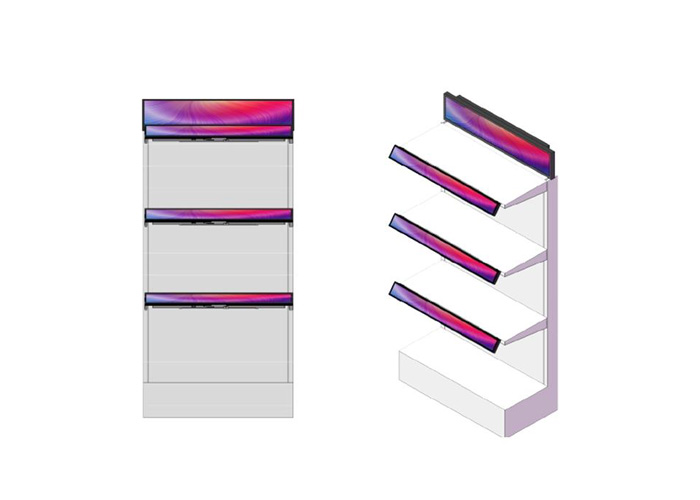

Application
Want To Get In Touch?
If you would like to discuss your requirement or need any additional information on our Shelf display, and then please do not hesitate to contact our sales team.
| Packing size | ||
| Product size | 891.6(H)X59.6(V)X15.2(D)mm | |
| Net weight | 1.4kg | |
| Outer package size(wooden box) | 100(H)X72(V)X8(D)Cm | |
| Gross weight | 5kg | |
