Buy Stretched Bar lcd player 75 inch lcd digital signage totem

1)Resolution : 3840(RGB) X1440 2)Active screen size: 1649.66(L) x 535(W)mm 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) 4)Display colors : 16.7M 5)Contrast ratio : 2000:1 6)Response Time : 9ms 7)Brightness: 500 cd/㎡(Typ.) 8) Power & Consumption : 100-240V(50/60Hz), 60w 9) Installation : standing 10) CPU : T972 A55 processer; 11) RAM : 2GB ; ROM : 8GB 12) OS Version : Android 9.0 13)Outline dimension:1712(L)*598(W)X47.3(D)mm
Description Package Information Inquiry

Buy Stretched Bar lcd player 75 inch lcd digital signage totem


        Stretched Bar lcd player adopts closed-type design, which has strong safety performance, simple and elegant design, and adopts industrial quality, stable low-power operation; using templated independent design, easy installation and easy maintenance;

ultra wide lcd.jpg

The specification

Model No

Product model

ZXTLCD-BAR750AKJSY

LCD Screen Panel

Screen size

75" LCD Panel

Active display area

1649.66(H) X 535(V)mm

Resolution

3840(V) X 1440(H)

Brightness

500cd/m2

Contrast ratio

2000:1

Display color

16.7M

Backlight type

WLED

Viewing angles

178°(H) X 178°(V)

Response time

9ms

Lifespan

50000 hours

Monitor PCB Board

CPU

T972 ,Quad core A35

RAM

2gb

ROM

8gb EMMC

System

Android 9.0

Network support

10M/100M Auto-adjust Gigabit Ethernet , WIFI

RTC real time clock

Support timing on / off function

Interfaces

1*USB2.0

1*OTG USB

1*RJ45

Video formats

wmvaviflvrmrmvbmpeg tsmp4

Photo formats

BMPJPEGPNGGIF

machine specification

Operating voltage

100-240V(50/60Hz)

Power consumption

60W

Product size

1712(H)X598(V)X47.3(D)mm

Installation

Embedded, wall-mounted

Apperance material

Metal shell

Net weight

38KG

Surface treatment

Black metal paint

Environmental

Storage Environment

Temperature-20℃60℃

Humidity5%95%

Atmospheric Pressure86kPa104kPa

Working Environment

Temperature-10℃50℃

Humidity10%85%

Atmospheric Pressure86KPa104KPa

Packing list

Bar lcd display

1pcs

Power Cable

1Pcs

Support special requirements customization

black stretch monitor.jpg

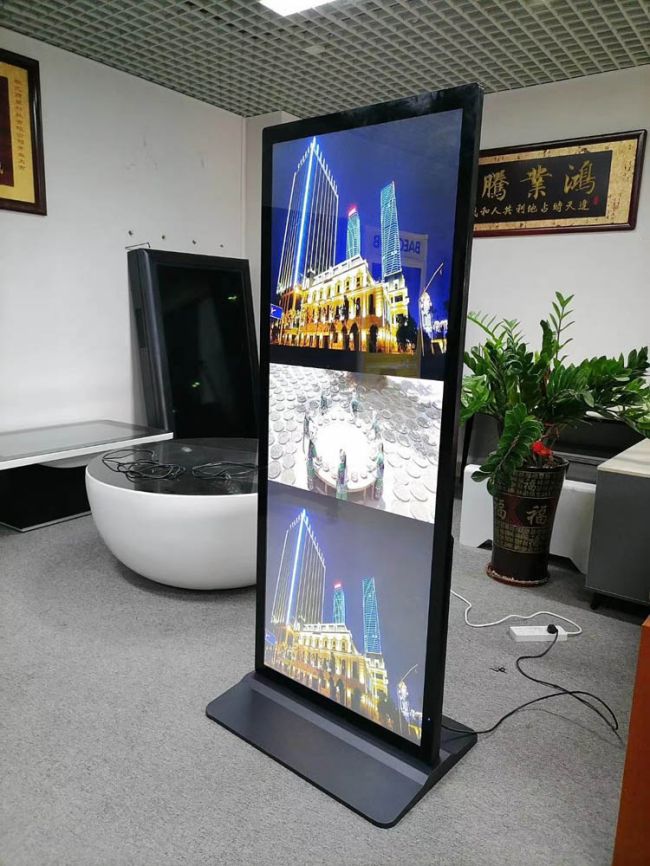

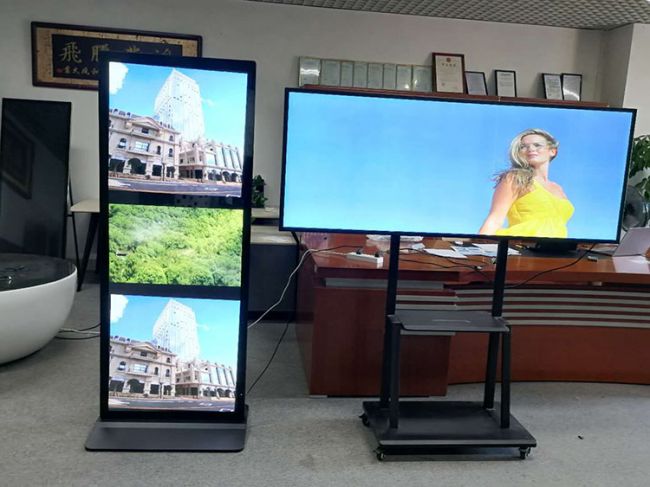

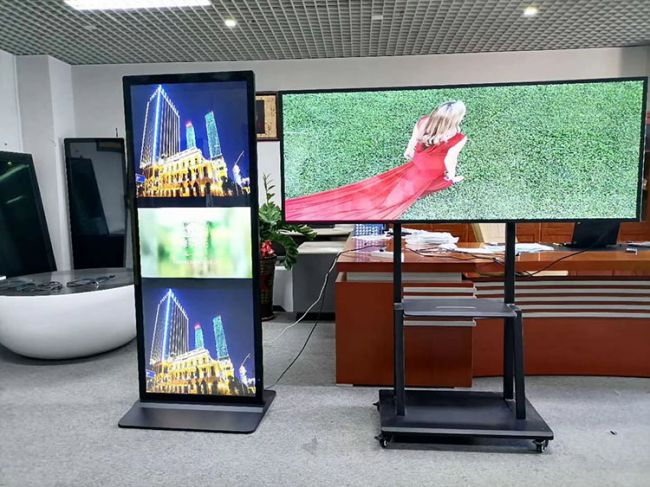

Physical Photo as follows :

lcd shelf screen.jpg

custom lcd screen.jpg

Want To Get In Touch?

If you would like to discuss your requirement or need any additional information on our Stretched Bar lcd player 75 inch, and then please do not hesitate to contact our sales team.
