69.3 inch LCD Bar Panorama stretched display for super market

1)Resolution : 3840(RGB) X1440 2)Active screen size: 617(L) x 1648.66(W)mm 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) 4)Display colors : 16.7M 5)Contrast ratio : 1200:1 6)Response Time : 25ms 7)Brightness: 500 cd/㎡(Typ.) 8) Power & Consumption : 100-240V(50/60Hz), 60w 9) Touchscreen : 10 points Infrared Touchscreen 10) Installation : standing 10) CPU : T972 A55 processer; 11) RAM : 2GB ; ROM : 8GB 12) OS Version : Android 9.0 14)Outline dimension:1787(L)*697(W)X43(D)mm
Description Package Information Inquiry

69.3 inch LCD Bar Panorama stretched display for super market

        The Bar Panorama stretched display is a brand new hip and fashionable stretching bar lcd display screen. The back of the display frame is covered with a dust cover, and it is stretched bar, lcd display. Ultra wide foldable and easy carry folding, save space in a suitcase suitcase easily slips into your luggage or handbag for easy storage in the trunk of any size and shape of a stretched bar. Meanwhile, this is a brand new and high quality cable tie down narrow stretch bar lcd display. This is the most economical and cost effective way to display your merchandise, which is a stretched bar lcd screen.

lcd stretched display.jpg

The specification

Model No

Product model

ZXTLCD-BAR693AWJSY

LCD Screen Panel

Screen size

69.3" LCD Panel

Active display area

618(H) X 1649.50(V)mm

Resolution

3840(V) X 1440(H)

Brightness

500cd/m2

Contrast ratio

2000:1

Display color

16.7M

Backlight type

WLED

Viewing angles

89/89/89/89 (Typ.)(CR≥10)

Response time

9ms

Lifespan

50000 hours

Monitor PCB Board

CPU

T972 ,Quad core A35

RAM

2gb

ROM

8gb EMMC

System

Android 9.0

Network support

10M/100M Auto-adjust Gigabit Ethernet , WIFI

RTC real time clock

Support timing on / off function

Interfaces

1*USB2.0

1*OTG USB

1*RJ45

Video formats

wmvaviflvrmrmvbmpeg tsmp4

Photo formats

BMPJPEGPNGGIF

machine specification

Operating voltage

100-240V(50/60Hz)

Power consumption

60W

Product size

1688.5(H)X557(V)X45.5(D)mm

Installation

Embedded, wall-mounted

Apperance material

Metal shell

Net weight

36KG

Surface treatment

Black metal paint

Environmental

Storage Environment

Temperature-20℃60℃

Humidity5%95%

Atmospheric Pressure86kPa104kPa

Working Environment

Temperature-10℃50℃

Humidity10%85%

Atmospheric Pressure86KPa104KPa

Packing list

Bar lcd display

1pcs

Power Cable

1Pcs

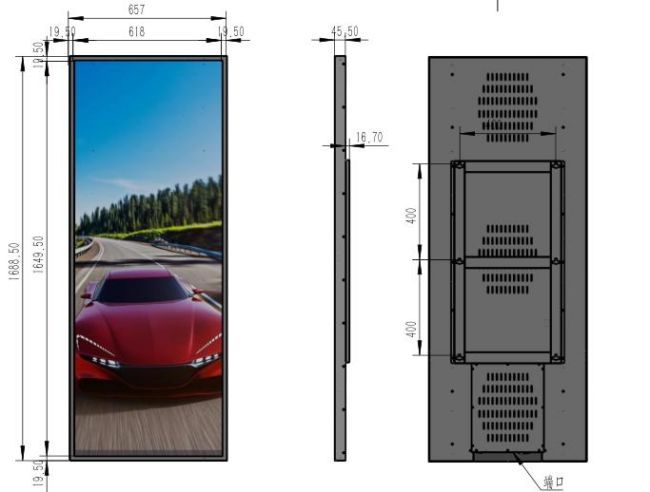

The design drawing as follows

stretched lcd monitor.jpg

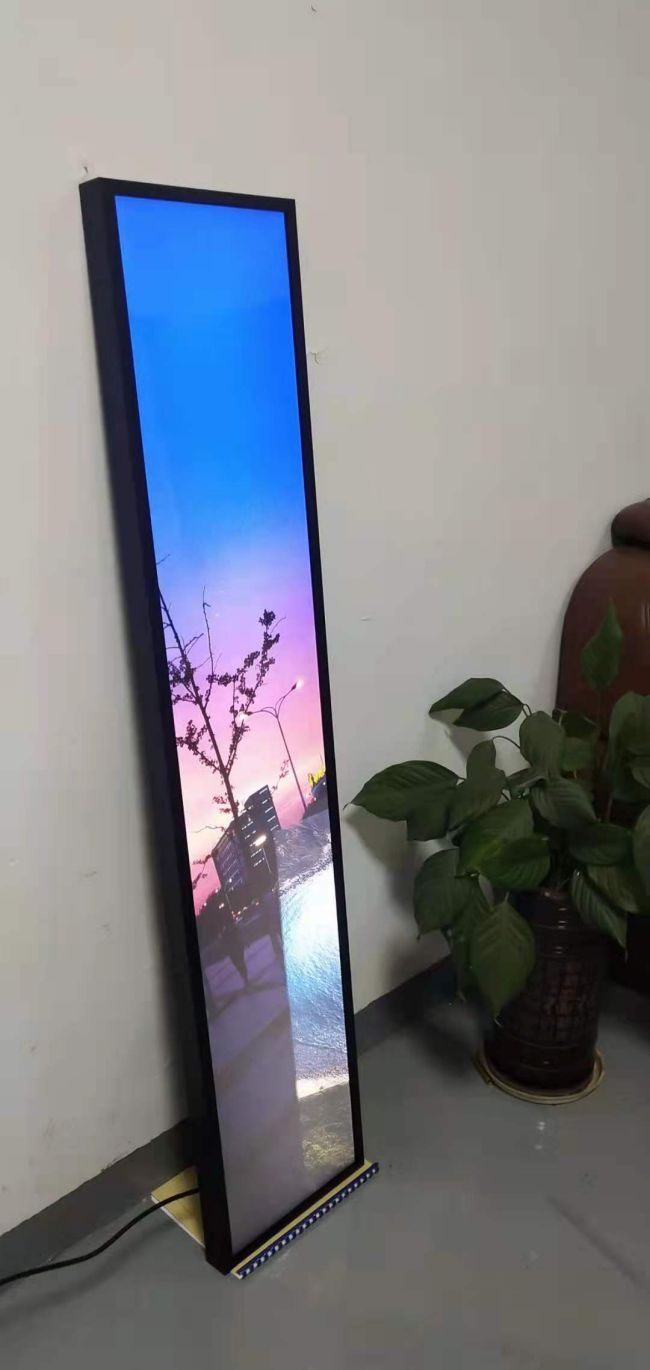

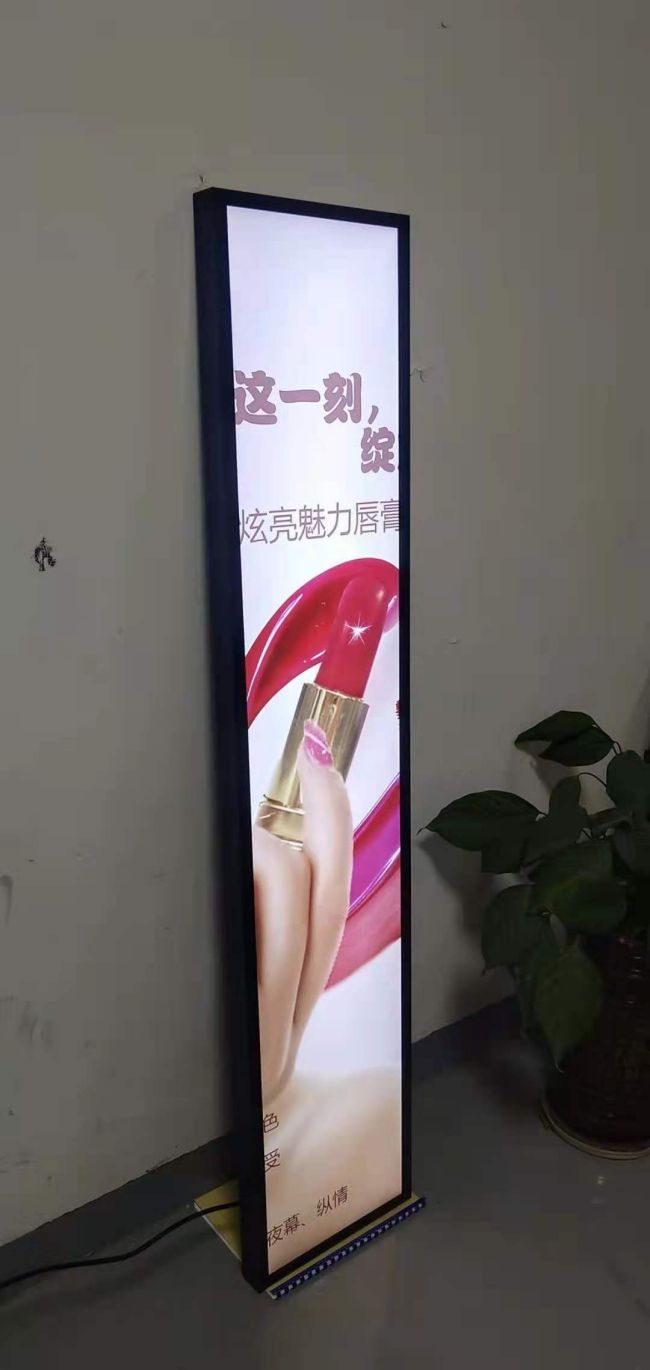

Physical Photo as follows:

stretch bar LCD Display.jpg
