68.2 inch Wall Mount Ultra-wide stretched Bar Type Lcd Display for Shopping mall
68.2 inch Wall Mount Ultra-wide stretched Bar Type Lcd Display for Shopping mall
Stretched Bar Type Lcd Display, also known as bar type / ultra-wide displays,are available in a variety of sizes, configurations, and brightness options making them a perfect versatile solution for digital signage needs. These amazing displays can be used in a wide, varied amount of applications but can be seen to be tailored perfectly for gaming, vending, transportation, Museums and other LCD signage projects. The contrast of brilliant cutting displays and high brightness displays can also expand your application field into the outdoor markets.
The specification | ||
Model No | Product model | ZXTLCD-BAR682WAJSY |
LCD Screen Panel | Screen size | 68.2" LCD Panel |
Active display area | 1649.66(H) X 535(V)mm | |
Resolution | 3840(V) X 1440(H) | |
Brightness | 500cd/m2 | |
Contrast ratio | 2000:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89/89/89/89 (Typ.)(CR≥10) | |
Response time | 9ms | |
Lifespan | 50000 hours | |
Monitor PCB Board | CPU | T972 ,Quad core A35 |
RAM | 2gb | |
ROM | 8gb EMMC | |
System | Android 9.0 | |
Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI | |
RTC real time clock | Support timing on / off function | |
Interfaces | 1*USB2.0 | |
1*OTG USB | ||
1*RJ45 | ||
Video formats | wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 | |
Photo formats | BMP、JPEG、PNG、GIF | |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤60W | |
Product size | 1712(H)X598(V)X47.3(D)mm | |
Installation | Embedded, wall-mounted | |
Apperance material | Metal shell | |
Net weight | ≤36KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

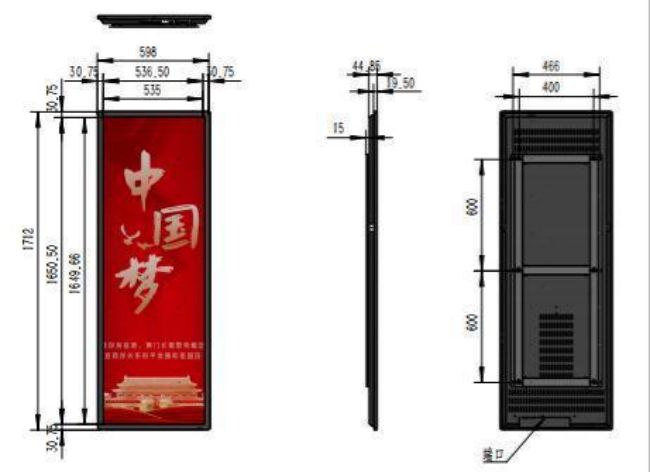

The design drawing as follows | ||

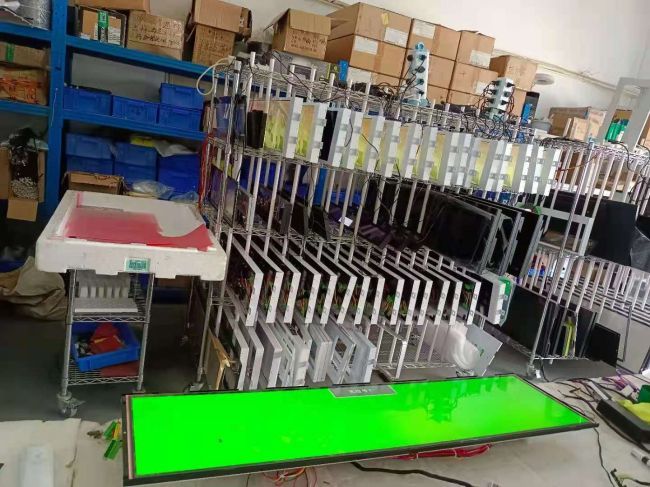

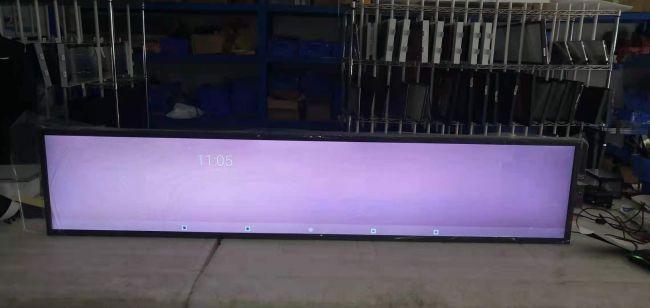

Physical Photo as follows:
Want To Get In Touch?
If you would like to discuss your requirement or need any additional information on our 68.2 inch Wall Mount Ultra-wide stretched Bar Type Lcd Display for Shopping mall, and then please do not hesitate to contact our sales team.
