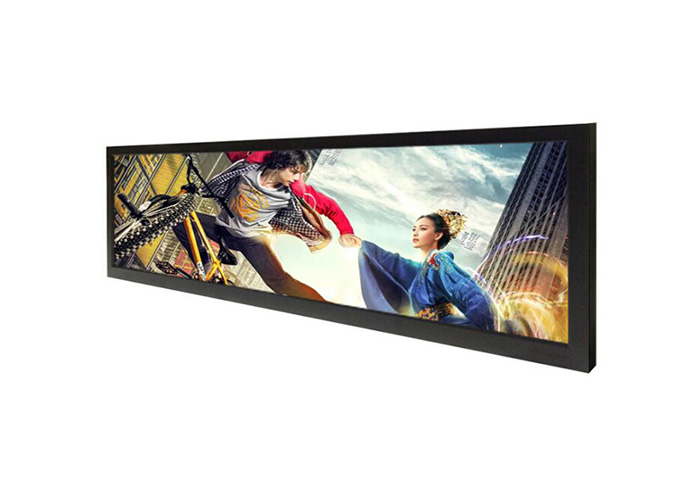

Ultra Wide View, custom 58.4 inch stretched Bar-Type TFT display
Ultra Wide View, custom 58.4 inch stretched Bar-Type TFT display
Our line of high-quality stretched Bar-Type TFT display shows offer awesome extensive aspect ratios as wide as 16:1 and in sizes ranging from 8 inches to 100 inches. Large ultra huge presentations are ideal for displaying panoramic content and catching an audience's attention in advertising and virtual signage packages, even as smaller sizes are commonly utilized in home equipment, kiosks, cell devices, flight simulators, and gaming machines.
The specification | ||
Model No | Product model | ZXTLCD-BAR584AHMJ |
LCD Screen Panel | Screen size | 58.4" LCD Panel |
Active display area | 1428(H) X 401.5(V)mm | |
Resolution | 3840(V) X 1920(H) | |
Brightness | 500cd/m2 | |
Contrast ratio | 2000:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89/89/89/89 (Typ.)(CR≥10) | |
Response time | 9ms | |
Lifespan | 50000 hours | |
Monitor PCB Board | CPU | T972 ,Quad core A35 |
RAM | 2gb | |
ROM | 8gb EMMC | |
System | Android 9.0 | |
Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI | |
RTC real time clock | Support timing on / off function | |
Interfaces | 1*USB2.0 | |
1*OTG USB | ||
1*RJ45 | ||
Video formats | wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 | |
Photo formats | BMP、JPEG、PNG、GIF | |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤60W | |
Product size | 1465(H)X437.5(V)X58(D)mm | |
Installation | Embedded, wall-mounted | |
Apperance material | Metal shell | |
Net weight | ≤28KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

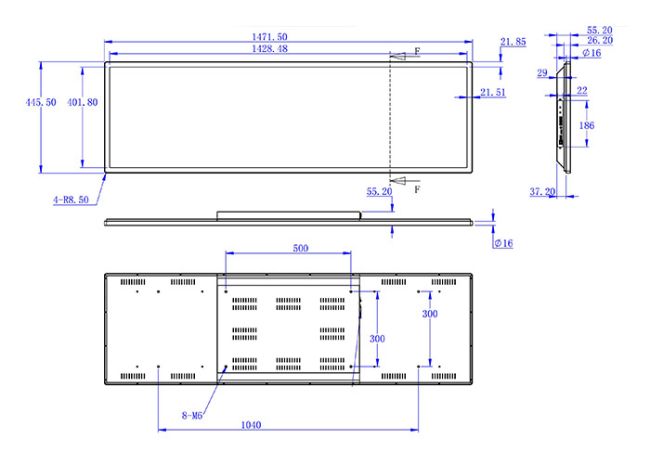

The design drawing as follows | ||
Want To Get In Touch?
If you would like to discuss your requirement or need any additional information on our Bar-Type TFT display, and then please do not hesitate to contact our sales team.
