ZXT LCD 19 inch wall mounted stretched bar type supermarket shelf lcd advertising player
ZXT LCD 19 inch wall mounted stretched bar type supermarket shelf lcd advertising player
Stretched bar type lcd display is a commercial display product with an ultra wide LCD screen. In order to meet different needs, it has various of display ratios of length and width. Based on common usage and customer requirements, ZXTLCD provides dozens of all-in-one digital signage stretched displays and stretched lcd monitors, as a way to offer cost-effective overall solutions, while remaining open to more possibilities.
The specification | ||
Model No | Product model | ZXTLCD-BAR195AJSY |
LCD Screen Panel | Screen size | 19.5" LCD Panel |
Active display area | 476.60(H) X 135.4(V)mm | |
Resolution | 1920(V) X540(H) | |
Brightness | 500cd/m2 | |
Contrast ratio | 1200:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89°/89°/ 89°/89°(U/D/L/R) | |
Response time | 25ms | |
Lifespan | 30000 hours | |
Main board | CPU | Rockchip PX30 Quad core ARM Cotex-A35 |
RAM | 1G DDR3(1 G/2G for optional ) | |
ROM | 8G EMMC(8G/16G/32G/64GEMMC for optional) | |
Memory extension | TF Card extension with the highest support for 64GB | |
System | Android 8.1 | |
Internet | Support 2.4G WIFI connection | |
RTC real time clock | Support timing on / off function | |
Interfaces | 1xTF card slot | |
1*micro USB(OTG) | ||
1*Type-c(DC 12V input,Need to match with our company's special adapter for power supply) | ||
machine specification | Operating voltage | 6V - 36V |
Power consumption | ≤20W | |
Product size | 518.5(H)X176.5(V)X47.3(D）mm | |
Installation | wall-mounted | |
Apperance material | Metal shell | |
Net weight | ≤2.5KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：0℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
OTG Cable | 1Pcs（OTG cable，micro USB to USB 2.0） | |
Adapter | 1Pcs (12V, 6A) | |

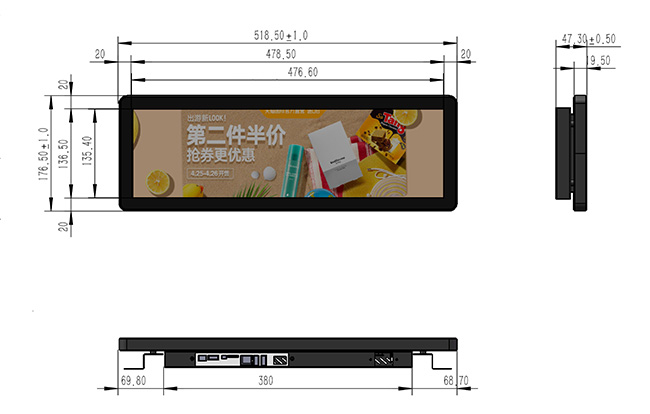

The design drawing as follows:

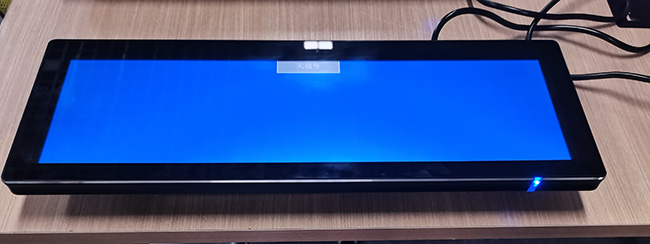

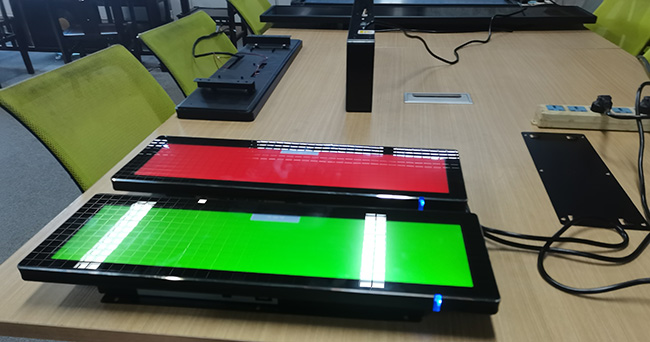

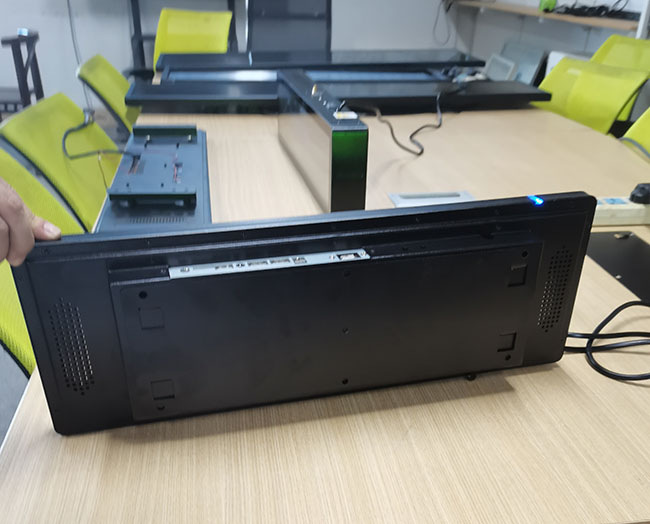

Physical photo as follows :
If you would like to discuss your requirement or need any additional information on our 19 inch wall mounted stretched bar type supermarket shelf lcd advertising player, then please do not hesitate to contact our sales team.
