48.8 inch stretched bar lcd player
48.8 inch stretched bar lcd player
ZXTLCD’s Super wide stretched bar lcd player is ideal for digital signage commercial advertisement and menu board. Stretched bar output aspect ratio of 32:9 wide. Energy-efficient and featuring ultra-bright LED backlights, you can be sure your message will be seen in any environment. Stretched bar monitor displays can be mounted either in portrait or landscape modes using standard VESA mounting options.
The specification | ||
Model No | Product model | ZXTLCD-BAR488AJSY |
LCD Screen Panel | Screen size | 48.8" LCD Panel |
Active display area | 1209.6(H) X 226(V)mm | |
Resolution | 3840(V) X 720(H) | |
Brightness | 500cd/m2 | |
Contrast ratio | 2000:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89/89/89/89 (Typ.)(CR≥10) | |
Response time | 9ms | |
Lifespan | 50000 hours | |
Monitor PCB Board | CPU | T972 ,Quad core A35 |
RAM | 2gb | |
ROM | 8gb EMMC | |
System | Android 9.0 | |
Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI | |
RTC real time clock | Support timing on / off function | |
Interfaces | 1*USB2.0 | |
1*OTG USB | ||
1*RJ45 | ||
Video formats | wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 | |
Photo formats | BMP、JPEG、PNG、GIF | |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤60W | |
Product size | 1242(H)X258(V)X53(D)mm | |
Installation | Embedded, wall-mounted | |
Apperance material | Metal shell | |
Net weight | ≤26KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

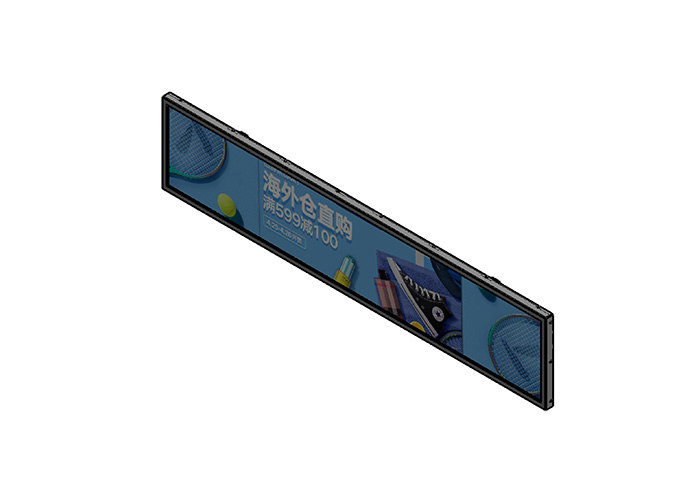

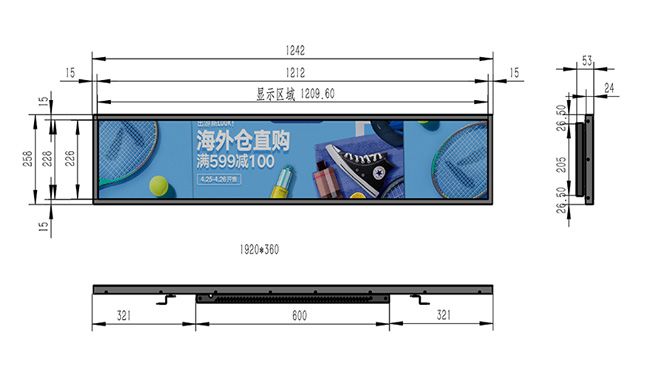

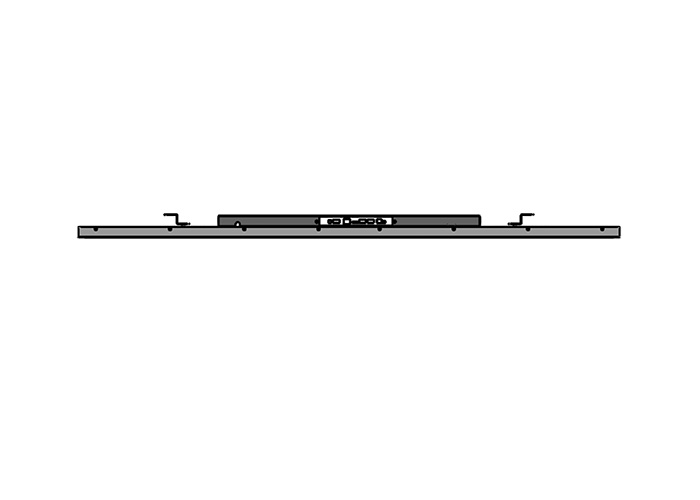

the design drawing as follows | ||

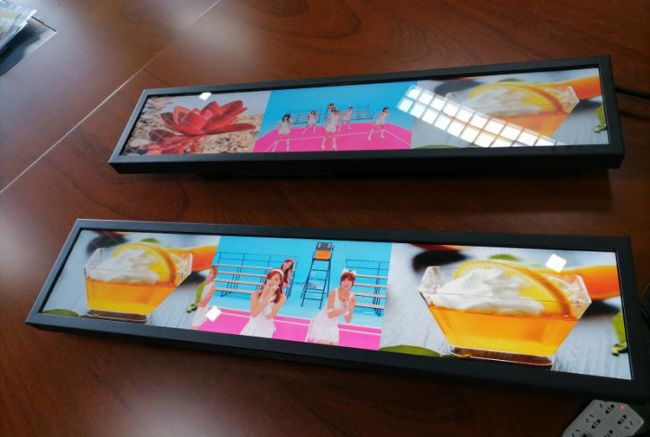

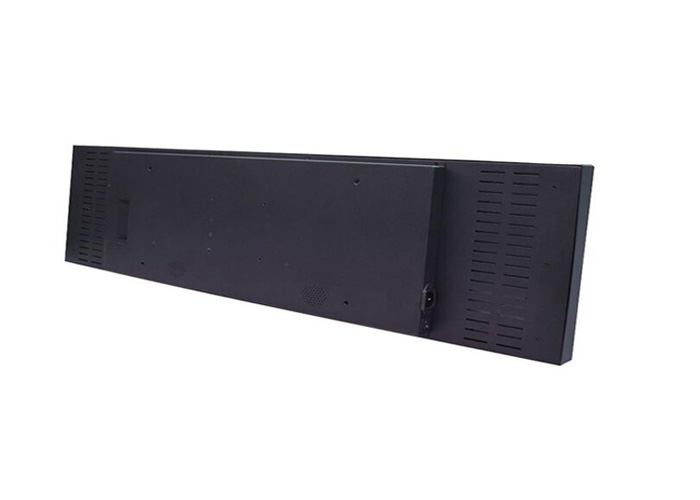

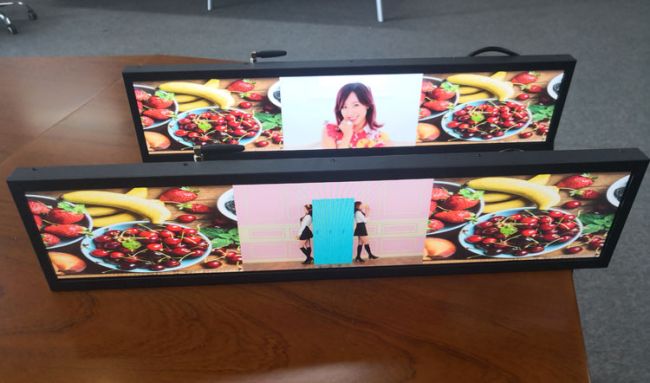

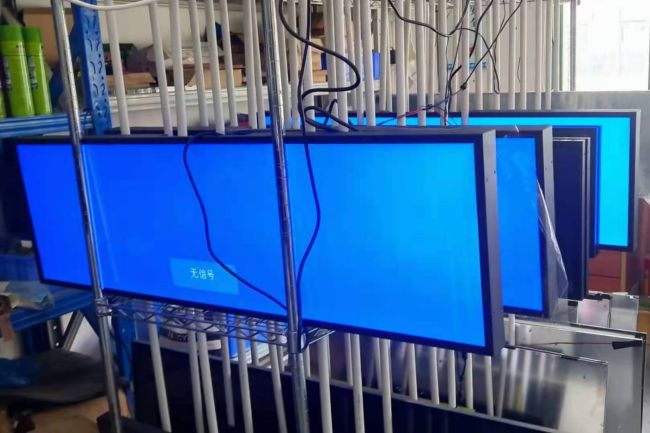

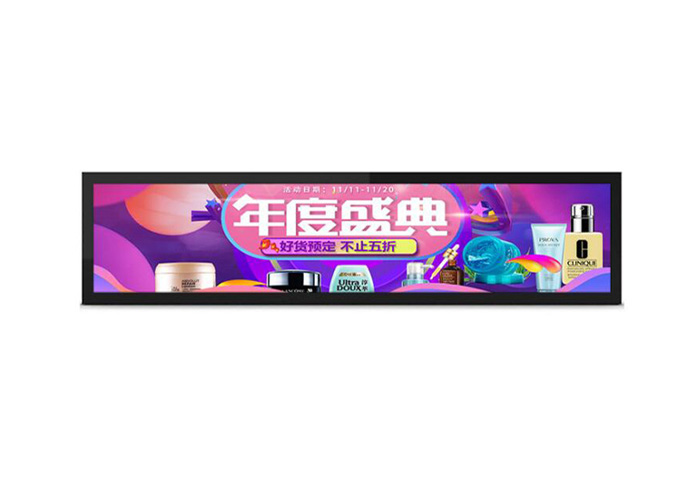

Physical Photo as follows :
If you would like to discuss your requirements or need any additional information on our 48.8 inch stretched bar lcd player, then please do not hesitate to contact our sales team.
