43.9 inch stretched bar lcd android
43.9 inch stretched bar lcd android
Ultra-wide stretched bar lcd android Advertising display is designed for super market shelf or other part which don't need standard 16:9 screens, with it's super slim and ultra width design, attracted more and more attentions, comparing to LED, it's displaying is more clear and lighter in weight.
The specification | ||
Model No | Product model | ZXTLCD-BAR439AQSP4K |
LCD Screen Panel | Screen size | 43.9" LCD Panel |
Active display area | 1073.78(H) X 302(V)mm | |
Resolution | 3840(V) X 1080(H) | |
Brightness | 500cd/m2 or higher brightness optional | |
Contrast ratio | 2000:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89/89/89/89 (Typ.)(CR≥10) | |
Response time | 9ms | |
Lifespan | 50000 hours | |
Monitor PCB Board | CPU | T972 ,Quad core A55 |
RAM | 2gb | |
ROM | 8gb EMMC | |
System | Android 9.0 | |
Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI | |
RTC real time clock | Support timing on / off function | |
Interfaces | 1*USB2.0 | |
1*OTG USB | ||
1*RJ45 | ||
Video formats | wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 | |
Photo formats | BMP、JPEG、PNG、GIF | |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤60W | |
Product size | 1112(H)X340(V)X52(D)mm | |
Installation | Flush mounted or wall-mounted optional | |
Apperance material | Metal structure shell + Tempered glass or Aluminum profile + Tempered glass optional | |
Net weight | ≤13.8KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

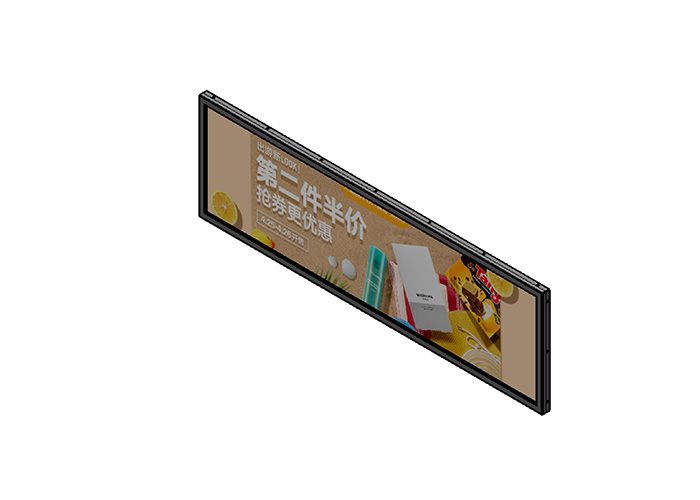

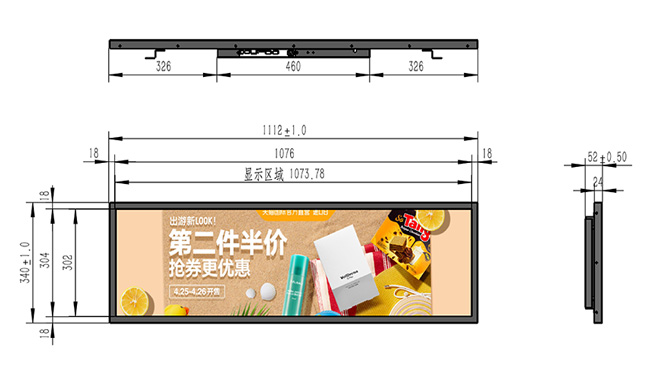

the design drawing as follows | ||

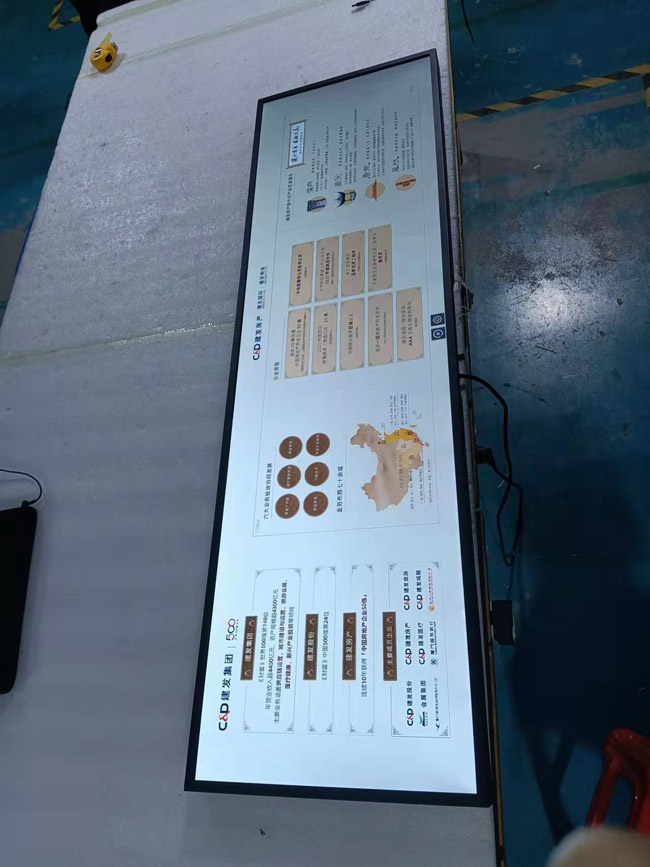

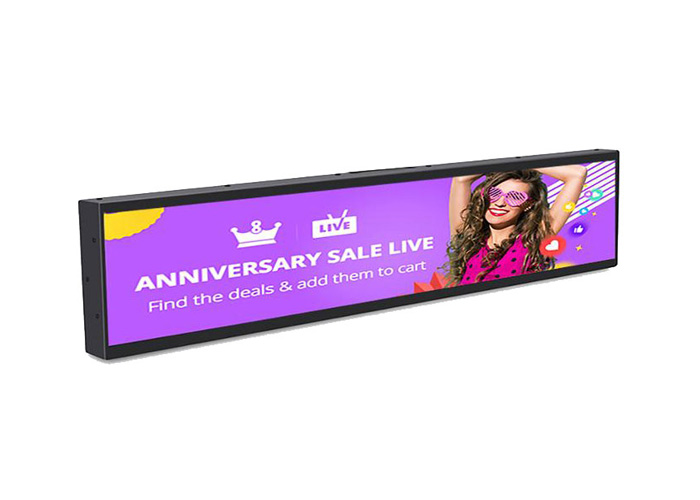

We will default Metal structure shell + Tempered glass as the enclosure appearance, the Physical Photo as follows :
The video for 43.9 inch 4K stretched bar lcd android with Metal structure shell + Tempered glass as follows :
If you don't like Metal structure shell + Tempered glass as the enclosure appearance, we also offer Aluminum profile + Tempered glass for choice, the physical photo as follows :
The video for 43.9 inch 4K stretched bar lcd android with Aluminum profile + Tempered glass as follows :
If you would like to discuss your requirement or need any additional information on our 43.9 inch stretched bar lcd android, then please do not hesitate to contact our sales team.
| Packing List | |
| Net weight | 13.8kg |
| Inner standard package size | 1175*405*150mm |

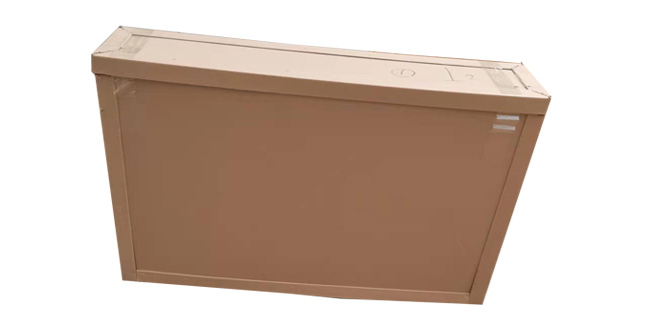

Outer package soloution A - Customized honeycomb Carton Box Package
| Packing List | |
| Gross weight | 20kg per unit |
| Honeycomb Carton box | 122X43X15cm |

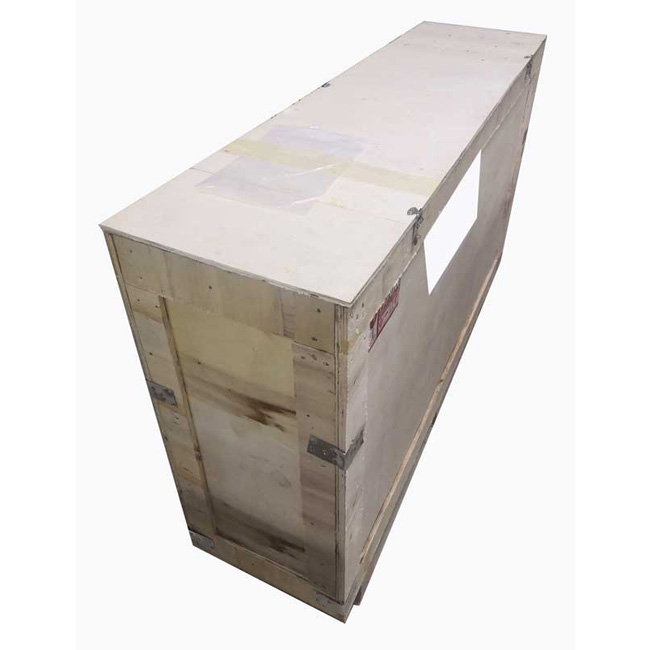

Outer package soloution B - Customized wooden Box Package
| Packing List | |
| Gross weight | 25kg per unit |
| Honeycomb Carton box | 125X55X15cm |
