28 inch Stretched Bar Ultrathin Display

1)Resolution : 1920(RGB) X 357 2)Active screen size: 698.4(L) x 129.86(W)mm 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) 4)Display colors : 16.7M 5)Contrast ratio : 2000:1 6)Response Time : 9.5ms 7)Brightness: 400 cd/㎡(Typ.) 8) Power & Consumption : AC 100~240V, 20w 9) Installation : Embedded, wall-mounted 10) CPU : Rockchip PX30 Quad core ARM Cotex-A35 processer ; 11) RAM : 1GB ; ROM : 8GB ; 12) OS Version : Android 8.1 ; 13)Outline dimension:737(L)*168.5(W)X40.5(D)mm
Description Package Information Inquiry

28 inch Stretched Bar Ultrathin Display


        ZXTLCD Stretched Bar Ultrathin Display have many sizes, configurations and features, making them adaptable to all sorts of digital signage projects. We offer professional installation advice and after-sales service, helping you to get started in no time. It’s time to stretch your view as well as your imagination to complete an unprecedented digital experience.

shelf edge lcd.jpg

The specification

Model No

Product model

ZXTLCD-BAR280AHMJ

LCD Screen Panel

Screen size

28.1" LCD Panel

Active display area

698.4(H) X 129.86(V)mm

Resolution

1920(V) X 357(H)

Brightness

700cd/m2

Contrast ratio

1200:1

Display color

16.7M

Backlight type

WLED

Viewing angles

89°/89°/89°/89°(U/D/L/R)

Response time

9.5ms

Lifespan

50000 hours

Monitor PCB Board

CPU

Rockchip PX30 Quad core ARM Cotex-A35

RAM

1G DDR3(1 G/2G for optional )

ROM

8G EMMC(8G/16G/32G/64GEMMC for optional)

Memory extension

TF Card extension with the highest support for 64GB

System

Android 8.1

Internet

Support 2.4G WIFI connection

Interfaces

1*USB2.0

1*OTG USB

1*RJ45

Video formats

wmvaviflvrmrmvbmpeg tsmp4

Photo formats

BMPJPEGPNGGIF

machine specification

Operating voltage

100-240V(50/60Hz)

Power consumption

30W

Product size

737(H)X168.5(V)X40.5(D)mm

Installation

Embedded, wall-mounted

Appearance material

Metal shell

Net weight

3.8KG

Surface treatment

Black metal paint

Environmental

Storage Environment

Temperature-20℃60℃

Humidity5%95%

Atmospheric Pressure86kPa104kPa

Working Environment

Temperature-10℃50℃

Humidity10%85%

Atmospheric Pressure86KPa104KPa

Packing list

Bar lcd display

1pcs

Power Cable

1Pcs

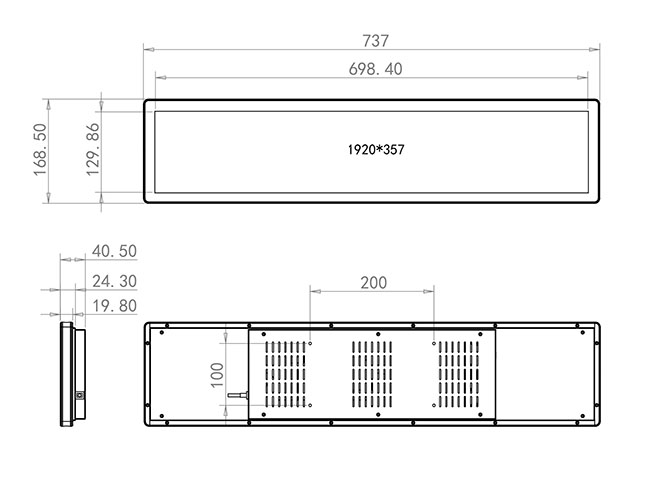

The design drawing as follows

stretched bar lcd.jpg

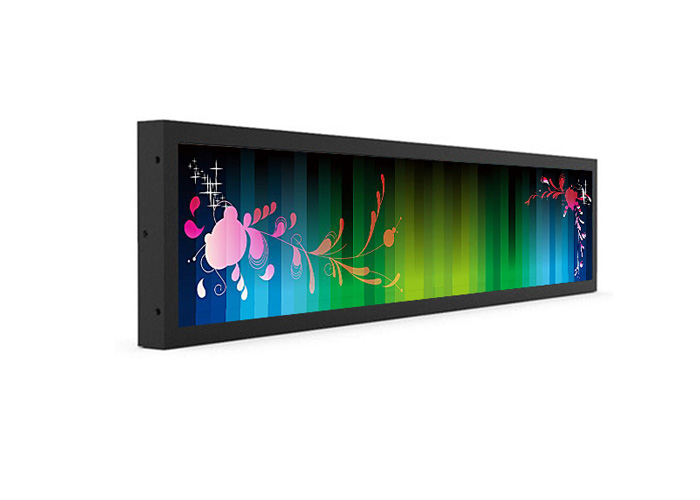

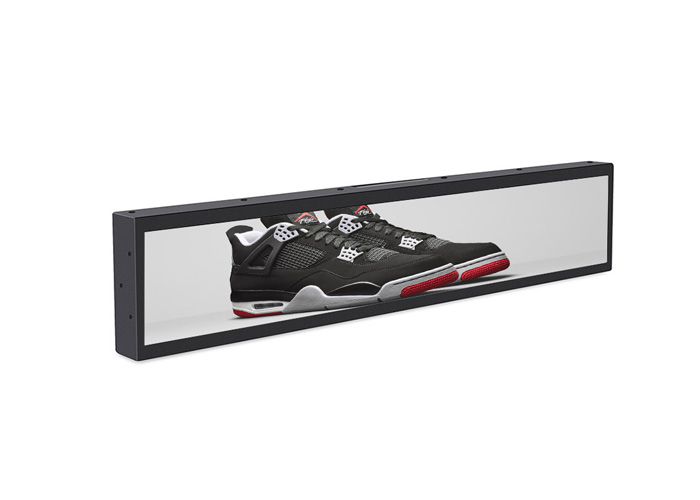

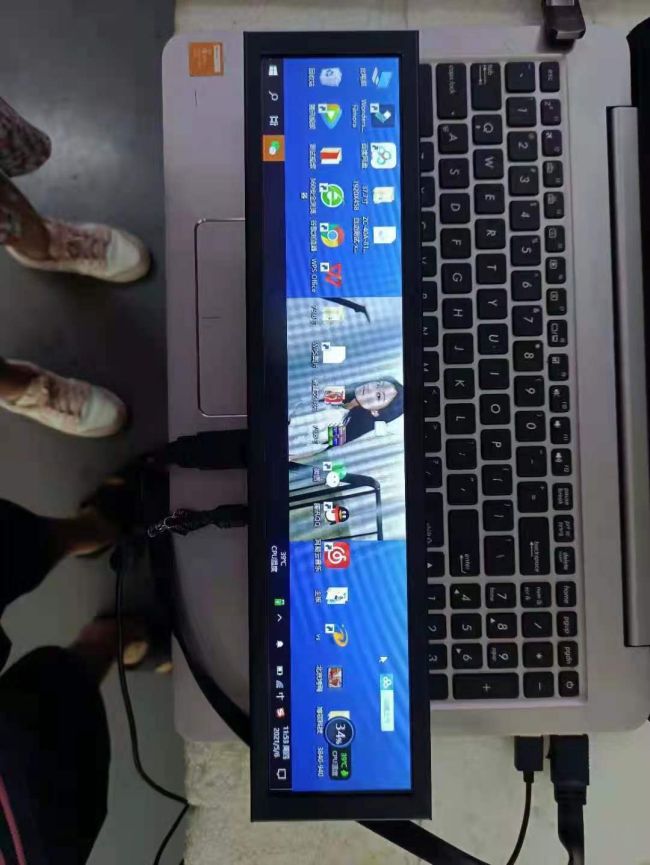

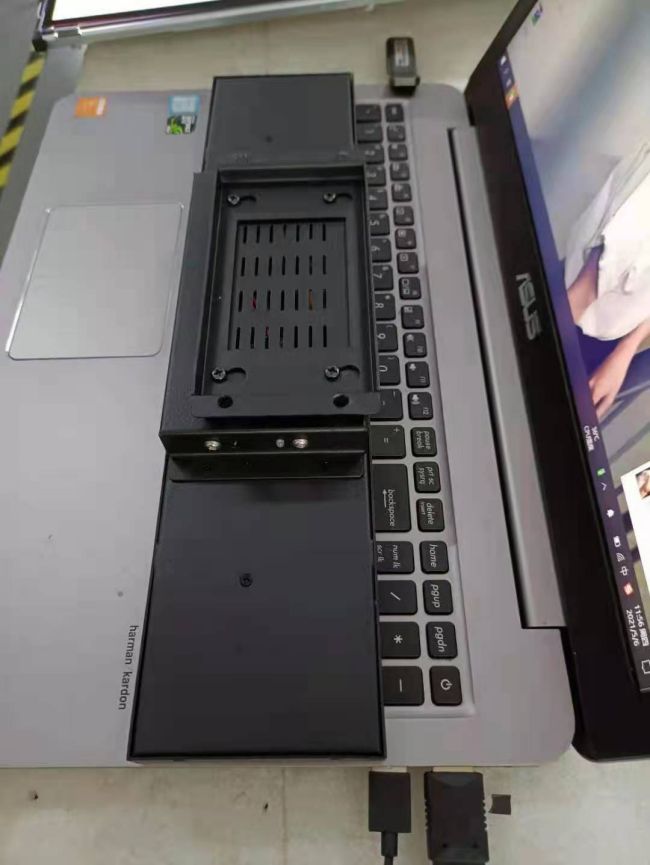

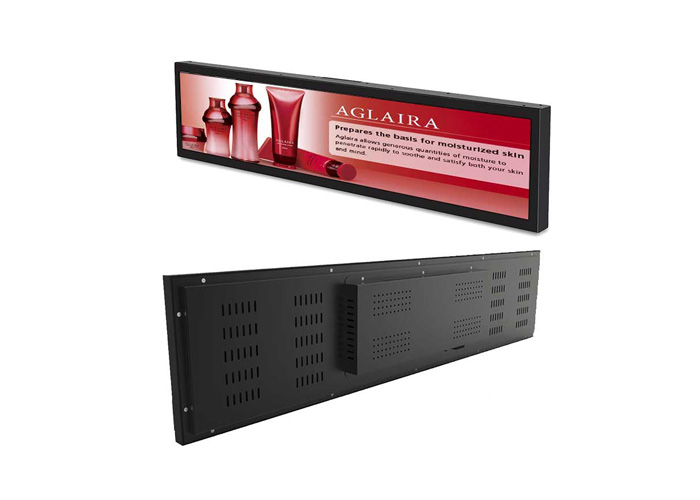

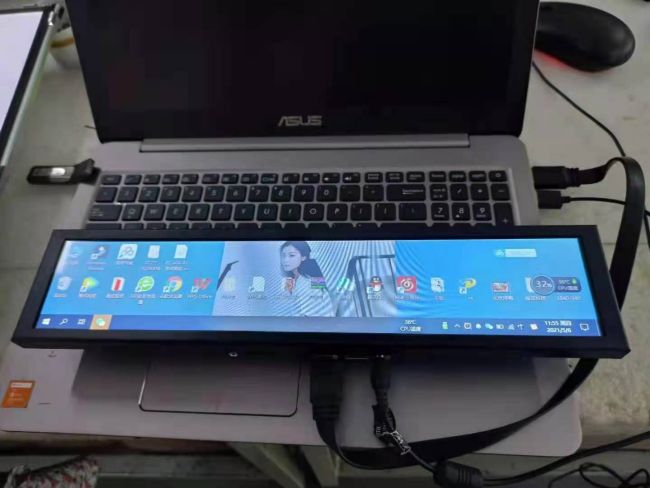

Physical Photo as follows :

lcd stretched display.jpg

bar lcd panel.jpg

stretched bar.jpg

If you would like to discuss your requirement or need any additional information on our 28 inch Stretched Bar Ultrathin Display, then please do not hesitate to contact our sales team
