Model No

Product model

ZXTLCD-BAR286AJSY

LCD Screen Panel

Screen size

28.6" LCD Panel

Active display area

698.4(H) X 196.43(V)mm

Resolution

1920(V) X 540(H)

Brightness

700cd/m2

Contrast ratio

1200:1

Display color

16.7M

Backlight type

WLED

Viewing angles

89°/89°/89°/89°(U/D/L/R)

Response time

9.5ms

Lifespan

50000 hours

Monitor PCB Board

CPU

Rockchip PX30 Quad core ARM Cotex-A35

RAM

1G DDR3(1 G/2G for optional )

ROM

8G EMMC(8G/16G/32G/64GEMMC for optional)

Memory extension

TF Card extension with the highest support for 64GB

System

Android 8.1

Internet

Support 2.4G WIFI connection

Interfaces

1*USB2.0

1*OTG USB

1*RJ45

Video formats

wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4

Photo formats

BMP、JPEG、PNG、GIF

machine specification

Operating voltage

100-240V(50/60Hz)

Power consumption

≤30W

Product size

733.5(H)X235(V)X51(D)mm

Installation

Embedded, wall-mounted

Appearance material

Metal shell

Net weight

≤4.5KG

Surface treatment

Black metal paint

Environmental

Storage Environment

Temperature：-20℃～60℃

Humidity：5%～95%

Atmospheric Pressure：86kPa～104kPa

Working Environment

Temperature：-10℃～50℃

Humidity：10%～85%

Atmospheric Pressure：86KPa～104KPa

Packing list

Bar lcd display

1pcs

Power Cable

1Pcs

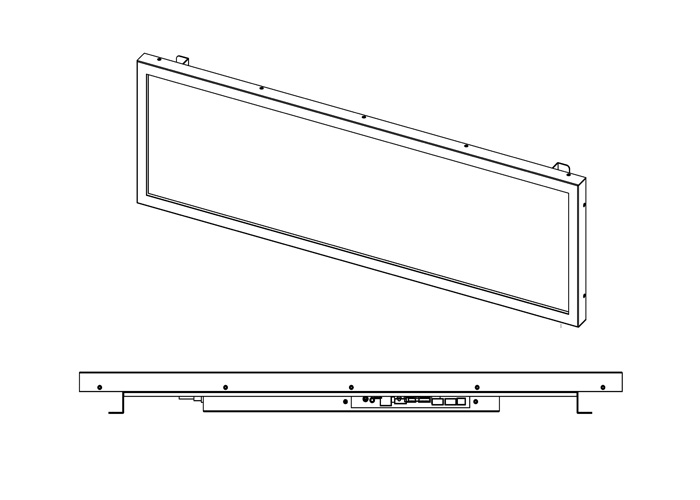

The design drawing as follows
