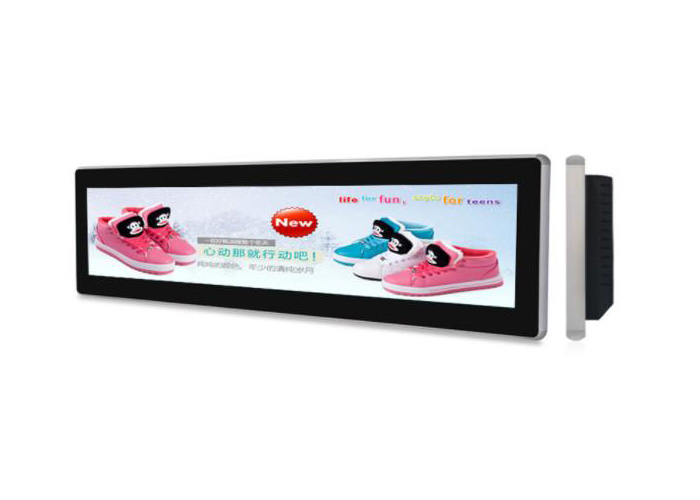

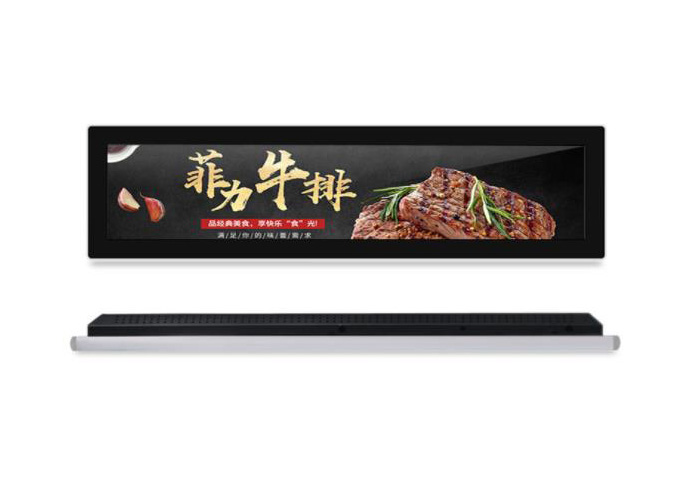

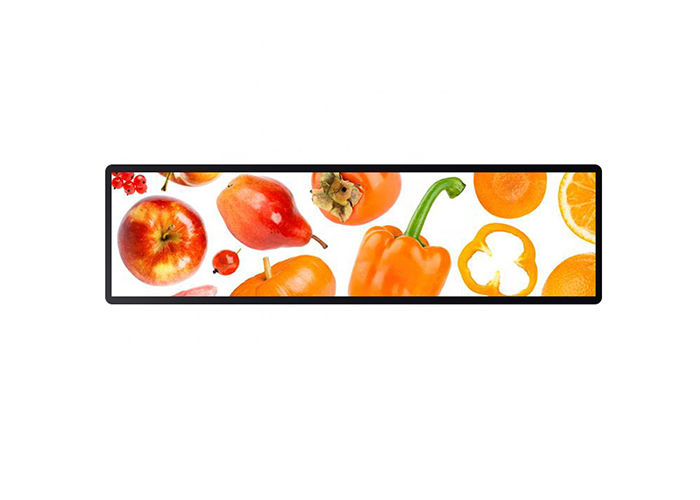

28.1 inch stretched bar digital signage
28.1 inch stretched bar digital signage

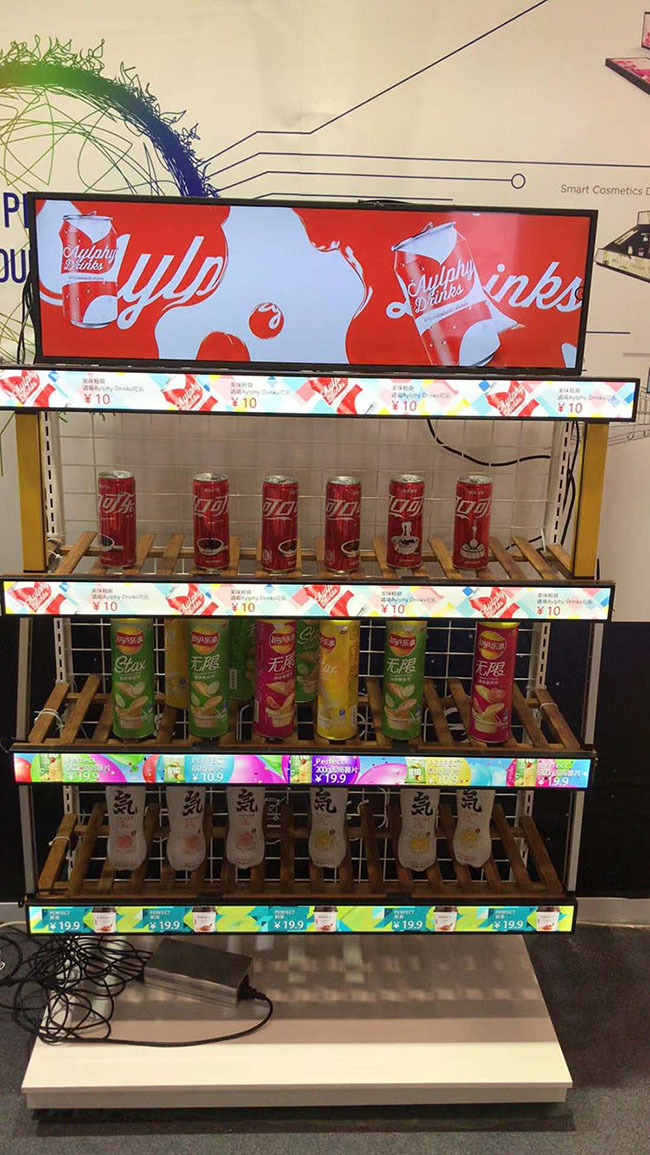

Our line of stretched bar digital signage provide super wide aspect ratios as wide as 16:1 and in sizes ranging from 6 inches to 60 inches. Large ultra wide displays are ideal for displaying panoramic content and catching an audience's attention in advertising and digital signage applications, while smaller sizes are commonly used in appliances, kiosks, mobile devices, flight simulators, and gaming machines.
The specification | ||
Model No | Product model | ZXTLCD-BAR281AJSY |
LCD Screen Panel | Screen size | 28.1" LCD Panel |
Active display area | 698.4(H) X 196.43(V)mm | |
Resolution | 1920(V) X 360(H) | |
Brightness | 400cd/m2 | |
Contrast ratio | 1200:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89°/89°/89°/89°(U/D/L/R) | |
Response time | 9.5ms | |
Lifespan | 50000 hours | |
Monitor PCB Board | CPU | Rockchip PX30 Quad core ARM Cotex-A35 |
RAM | 1G DDR3(1 G/2G for optional ) | |
ROM | 8G EMMC(8G/16G/32G/64GEMMC for optional) | |
Memory extension | TF Card extension with the highest support for 64GB | |
System | Android 8.1 | |
Internet | Support 2.4G WIFI connection | |
Interfaces | 1*USB2.0 | |
1*OTG USB | ||
1*RJ45 | ||
Video formats | wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 | |
Photo formats | BMP、JPEG、PNG、GIF | |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤30W | |

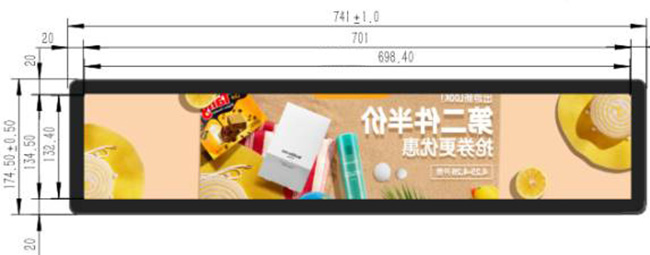

Product size | 741(H)X238.5(V)X47.3(D)mm | |
Installation | Embedded, wall-mounted | |
Appearance material | Metal shell | |
Net weight | ≤4.5KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature:-20℃~60℃ |
Humidity:5%~95% | ||
Atmospheric Pressure:86kPa~104kPa | ||
Working Environment | Temperature:-10℃~50℃ | |
Humidity:10%~85% | ||
Atmospheric Pressure:86KPa~104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |
Support special requirements customization |

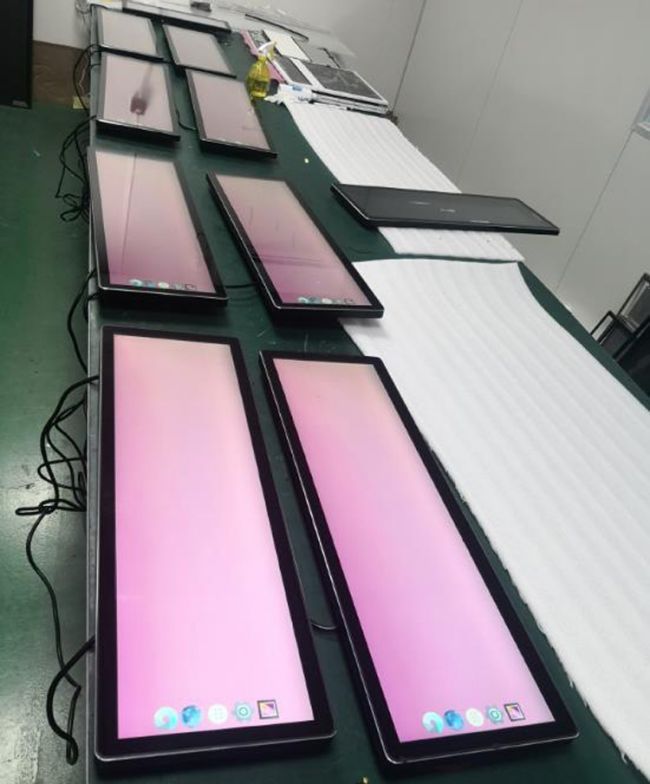

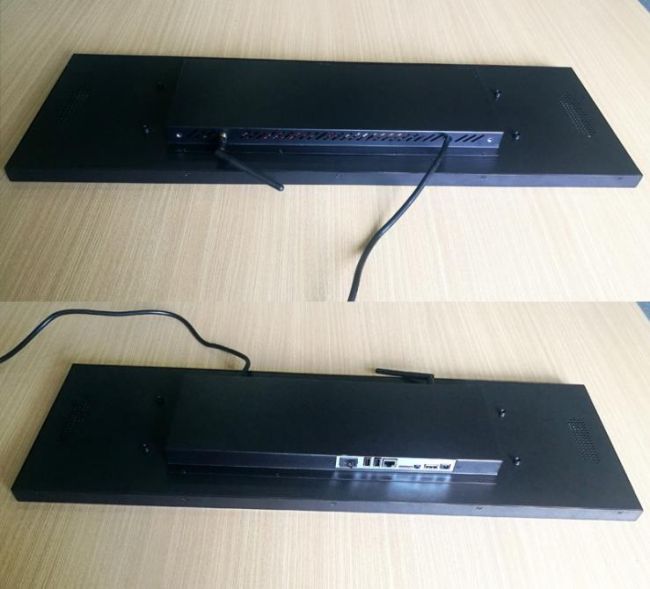

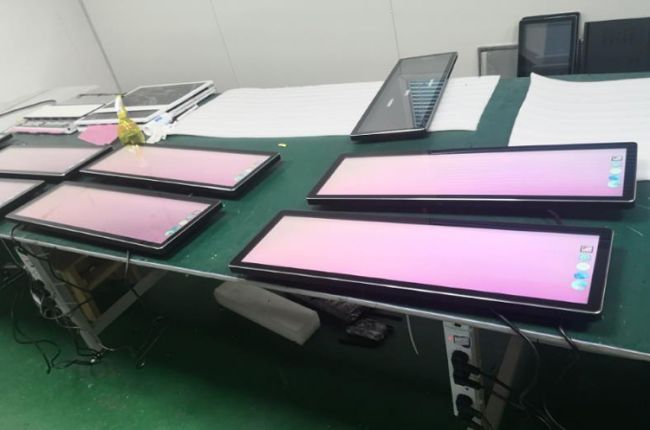

Physical Photo as follows :
If you would like to discuss your requirement or need any additional information on our 28.1 inch stretched bar digital signage, then please do not hesitate to contact our sales team
