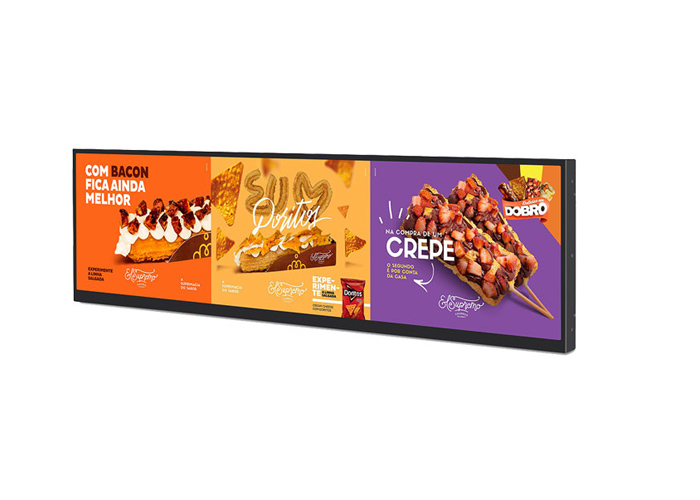

35.1 inch stretched bar advertising screen

1)Resolution : 1920(RGB) X 540 2)Active screen size: 885.6(L) x 249(W)mm 3) Visual angle : 89°/89°/89°/89°(U/D/L/R) 4)Display colors : 16.7M 5)Contrast ratio : 3000:1 6)Response Time : 9.5ms 7)Brightness: 400 cd/㎡(Typ.) 8) Power & Consumption : 100-240V(50/60Hz), 45w 9) Installation : Embedded, wall-mounted 10) CPU : Rockchip PX30 Quad core ARM Cotex-A35 processer ; 11) RAM : 1GB ; ROM : 8GB ; 12) OS Version : Android 8.1 ; 13)Outline dimension:917.5(L)*281(W)*49(D)mm

Description Package Information Inquiry

This is the most economical and cost effective way to display your merchandise, which is a stretched bar advertising screen. It is used as a stretched bar lcd display screen. The gallery wrapped glass provides a high quality, durable and scratch resistant folding backer panel with poly crystalline silicon adhesives for easy installation on any smooth, flat surface.

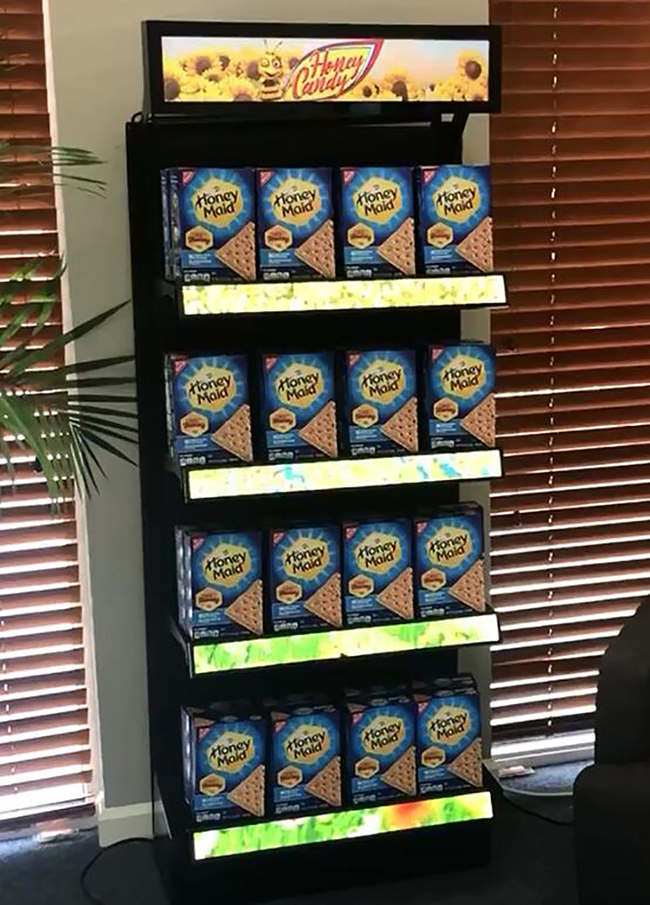

7 shelf lcd.jpg

The specification
Model No	Product model	ZXTLCD-BAR351AHMJ
LCD Screen Panel	Screen size	35.1" LCD Panel
	Active display area	885.6(H) X 249(V)mm
	Resolution	1920(V) X 540(H)
	Brightness	500cd/m2
	Contrast ratio	1200:1
	Display color	16.7M
	Backlight type	WLED
	Viewing angles	89°/89°/89°/89°(U/D/L/R)
	Response time	9.5ms
	Lifespan	50000 hours
Monitor PCB Board	CPU	Rockchip PX30 Quad core ARM Cotex-A35
	RAM	1G DDR3(1 G/2G for optional )
	ROM	8G EMMC(8G/16G/32G/64GEMMC for optional)
	Memory extension	TF Card extension with the highest support for 64GB
	System	Android 8.1
	Internet	Support 2.4G WIFI connection
	Interfaces	1*USB2.0
		1*OTG USB
		1*RJ45
	Video formats	wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
	Photo formats	BMP、JPEG、PNG、GIF
machine specification	Operating voltage	100-240V(50/60Hz)
	Power consumption	≤45W
	Product size	917.5(H)X281(V)X49(D)mm
	Installation	Embedded, wall-mounted
	Appearance material	Metal shell
	Net weight	≤4.5KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-20℃～60℃
		Humidity：5%～95%
		Atmospheric Pressure：86kPa～104kPa
	Working Environment	Temperature：-10℃～50℃
		Humidity：10%～85%
		Atmospheric Pressure：86KPa～104KPa
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

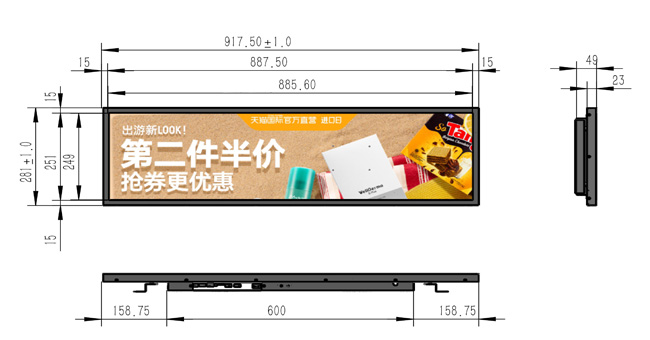

The design drawing as follows

bar lcd panel.jpg

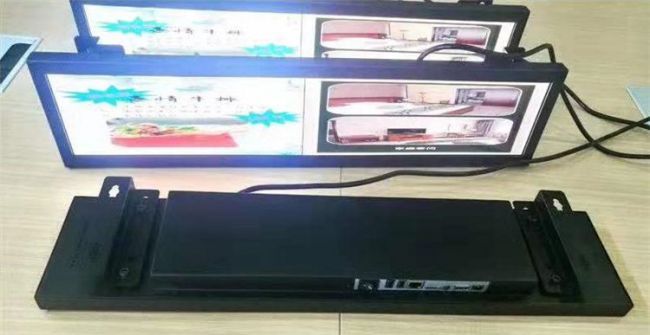

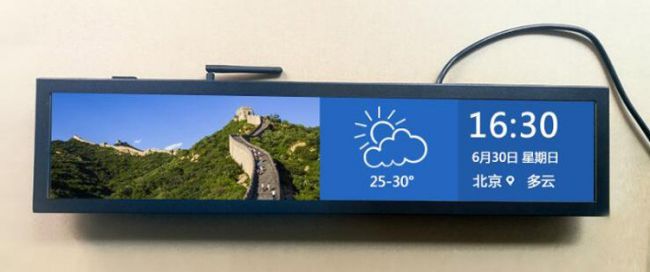

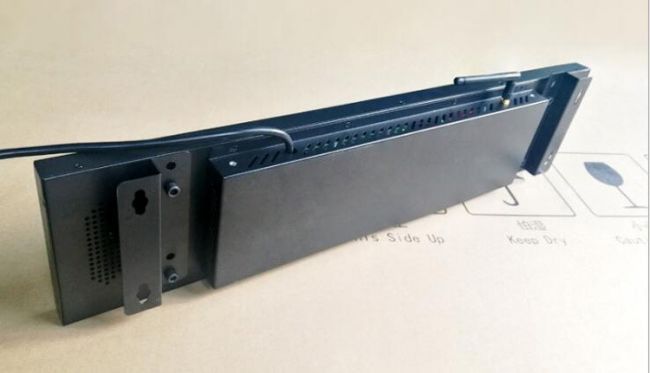

The physical photo as follows:

stretched lcd display 3.jpg

stretched bar display 5.jpg

stretched lcd display 2.jpg

If you would like to discuss your requirement or need any additional information on our 35.1 inch stretched bar advertising screen, then please do not hesitate to contact our sales team
