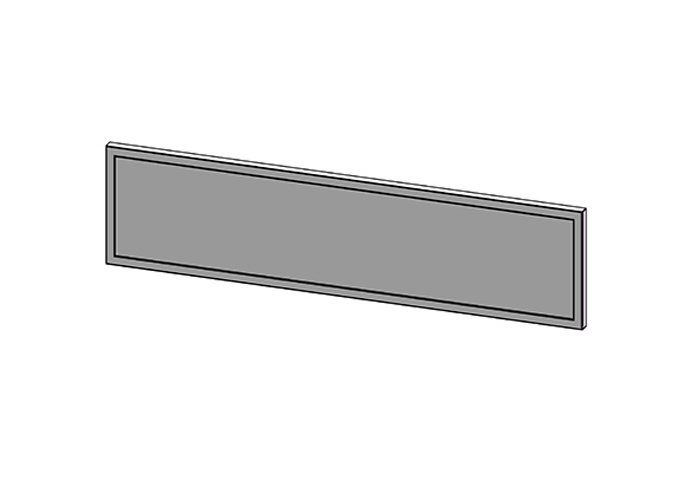

35.5 inch Slim Stretched Bar Type LCD Panel

1)Resolution : 1920(RGB) X 372 2)Active screen size: 885.6(L) x 172(W)mm 3) Visual angle : 178(H)/178(V) 4)Display colors : 16.7M 5)Contrast ratio : 3000:1 6)Response Time : 9.5ms 7)Brightness: 400 cd/㎡(Typ.) 8) Power & Consumption : AC 100~240V, 25w 9) Installation : Embedded, wall-mounted 10) CPU : Rockchip PX30 Quad core ARM Cotex-A35 processer ; 11) RAM : 1GB ; ROM : 8GB ; 12) OS Version : Android 8.1 ; 13)Outline dimension:921(L)*205.7(W)*43(D)mm

Description Package Information Inquiry

Our Slim Stretched Bar Type LCD Panel are specially cut offering a super wide display format which offers an innovative and fresh approach to grab the public’s attention. These stretched format display products, also known as BAR displays, are available in a variety of sizes and aspect ratios, with sunlight readable options, open frame models, making them an ideal solution for digital signage, gaming and way finding style applications.

61 bar tft lcd.jpg

Features of Slim Stretched Bar Type LCD Panel:

1. Full HD 1920*1080, LCD screen, support display models of 16:3, (Horizontal/Vertical,other display scale is acceptable) etc.

2. Multi-groups of on/off time schedule could be setted remotely and control the display through Internet.

3. Interactive optical multi-points touch function, touch in two points simultaneously.

4. Compatible multimedia file formats: MPEG1/2/4, AVI, RM,WMV,DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc.

5. Scrolling texts in English and Chinese version are available, various display modes for titles (Fonts and colors of letters,

background clolors, the relative attributes of rolling dirctions in horizontal or vertical could be adjusted).

6. Support media contents combine by videos, pictures, flashes, marquee etc.

7. Support uploading files through Wifi and cable network.

8. Intelligent system for arranging and playing programs, easy and fast operation.

9. Support displaying in dual screens, play different video files and audio contents in these two screens.

bar lcd display 26.jpg

The specification
Model No	Product model	ZXTLCD-BAR355AHMJ
LCD Screen Panel	Screen size	35.5" LCD Panel
	Active display area	885.6(H) X 172(V)mm
	Resolution	1920(V) X 372(H)
	Brightness	400cd/m2
	Contrast ratio	3000:1
	Display color	16.7M
	Backlight type	WLED
	Viewing angles	178(H)/178(V)
	Response time	9.5ms
	Lifespan	50000 hours
Monitor PCB Board	CPU	Rockchip PX30 Quad core ARM Cotex-A35
	RAM	1G DDR3(1 G/2G for optional )
	ROM	8G EMMC(8G/16G/32G/64GEMMC for optional)
	Memory extension	TF Card extension with the highest support for 64GB
	System	Android 8.1
	Internet	Support 2.4G WIFI connection
	Interfaces	1*USB2.0
		1*OTG USB
		1*RJ45
	Video formats	wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
	Photo formats	BMP、JPEG、PNG、GIF
machine specification	Operating voltage	100-240V(50/60Hz)
	Power consumption	≤60W
	Product size	921(H)X205.7(V)X43(D)mm
	Installation	Embedded, wall-mounted
	Appearance material	Metal shell
	Net weight	≤4.8KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-20℃～60℃
		Humidity：5%～95%
		Atmospheric Pressure：86kPa～104kPa
	Working Environment	Temperature：-10℃～50℃
		Humidity：10%～85%
		Atmospheric Pressure：86KPa～104KPa
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

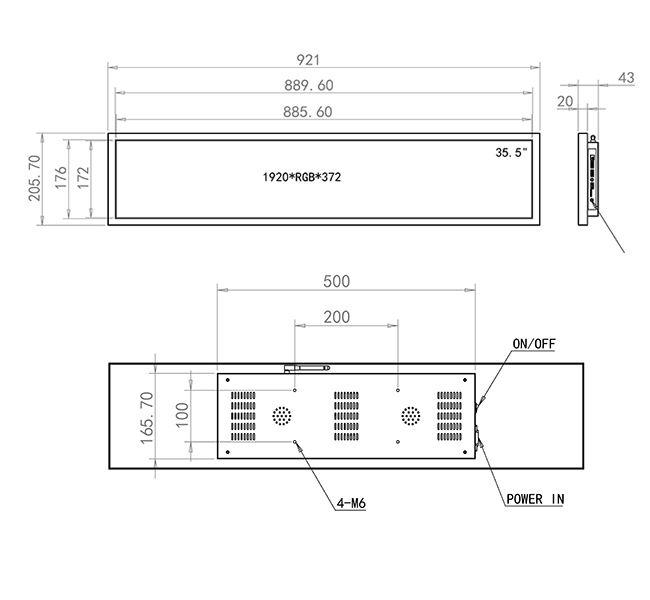

the design drawing as follows

stretched bar lcd.jpg

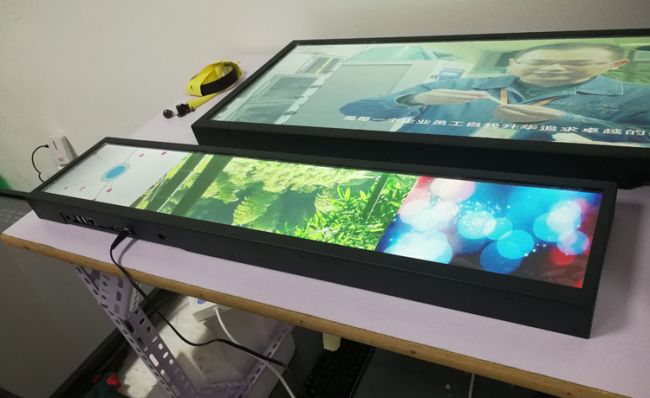

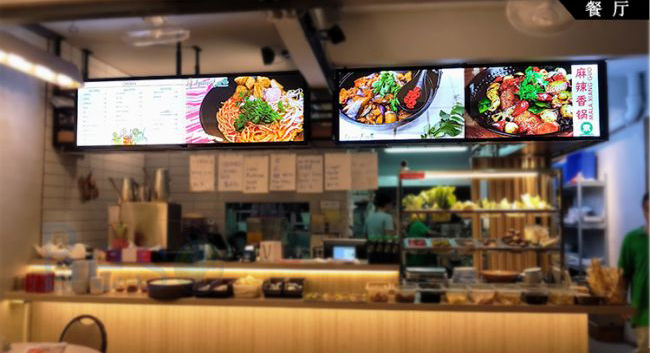

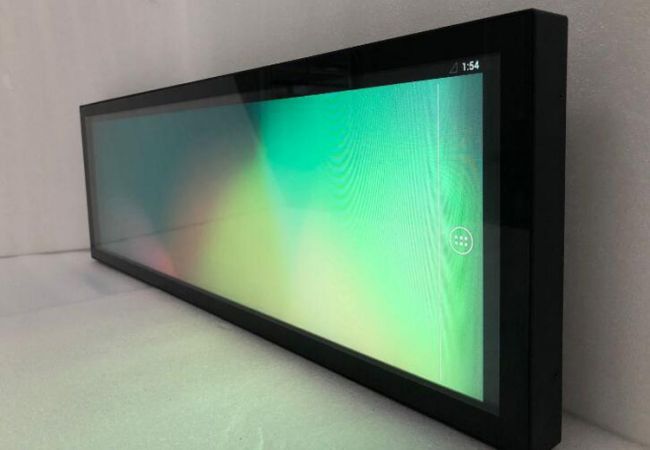

The physical photo as follows:

shelf lcd 5.jpg

bar lcd display 23.jpg

If you would like to discuss your requirement or need any additional information on our 35.5 inch Slim Stretched Bar Type LCD Panel, then please do not hesitate to contact our sales team
