36.6 inch stretched bar lcd ultra wide display

1)Resolution : 1920(RGB) X290 ; 2)Active screen size: 919.29(L) x 139(W)mm ; 3) Visual angle : 178°(H) X 178°(V) ; 4)Display colors : 16.7M ; 5)Contrast ratio : 2000:1 ; 6)Response Time : 9.5ms ; 7)Brightness: 400 cd/㎡(Typ.) ; 8) Power & Consumption : 100-240V(50/60Hz), 50w ; 9) Installation : Wall mounted or mounted on the shelf ; 10) CPU : Rockchip PX30 Quad core ARM Cotex-A35 processer ; 11) RAM : 1GB ; ROM : 8GB ; 12) OS Version : Android 8.1 ; 13)Outline dimension:960(L)*170(W)X48.5(D)mm ;

Description Package Information Inquiry

36.6 inch stretched bar lcd ultra wide display on the shelf

stretched bar lcd ultra wide display, also known as bar type / ultra-wide displays, are available in a variety of sizes, configurations, and brightness options making them a perfect versatile solution for digital signage needs. These amazing displays can be used in a wide, varied amount of applications but can be seen to be tailored perfectly for gaming, vending, transportation, Museums and other LCD signage projects. The contrast of brilliant cutting displays and high brightness displays can also expand your application field into the commercial markets.

bar lcd panel.jpg

The specification
Model No	Product model	ZXTLCD-BAR366AJSY
LCD Screen Panel	Screen size	46.6" LCD Panel
	Active display area	919.29(H) X 139(V)mm
	Resolution	1920(V) X 290(H)
	Brightness	500cd/m2
	Contrast ratio	2000:1
	Display color	16.7M
	Backlight type	WLED
	Viewing angles	178°(H) X 178°(V)
	Response time	8ms
	Lifespan	50000 hours
Monitor PCB Board	CPU	Rockchip PX30 Quad core ARM Cotex-A35
	RAM	1G DDR3(1 G/2G for optional )
	ROM	8G EMMC(8G/16G/32G/64GEMMC for optional)
	Memory extension	TF Card extension with the highest support for 64GB
	System	Android 8.1
	Internet	Support 2.4G WIFI connection
	Interfaces	1*USB2.0
		1*OTG USB
		1*RJ45
	Video formats	wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
	Photo formats	BMP、JPEG、PNG、GIF
machine specification	Operating voltage	100-240V(50/60Hz)
	Power consumption	≤30W
	Product size	960(H)X170(V)X48.5(D)mm
	Installation	Embedded, wall-mounted
	Apperance material	Metal shell
	Net weight	≤5.8KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-20℃～60℃
		Humidity：5%～95%
		Atmospheric Pressure：86kPa～104kPa
	Working Environment	Temperature：-10℃～50℃
		Humidity：10%～85%
		Atmospheric Pressure：86KPa～104KPa
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

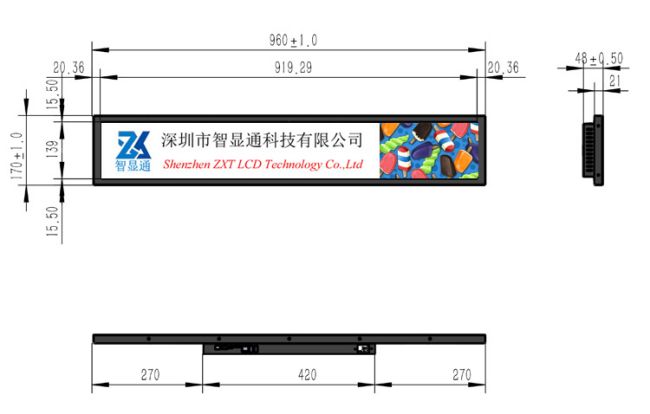

The design drawing as follows

stretched bar.jpg

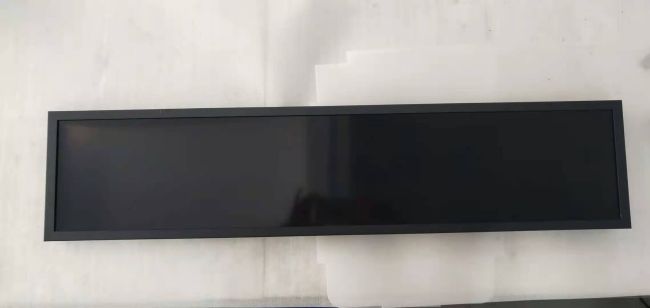

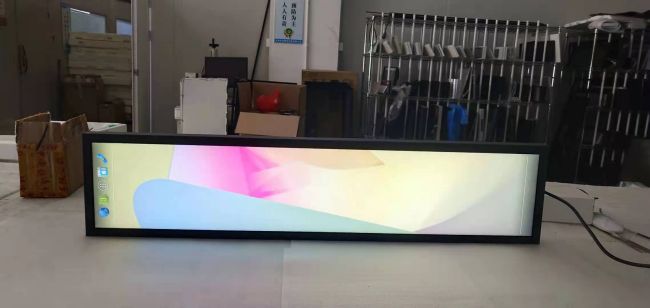

Physical Photo as follows :

bar lcd display.jpg

stretched bar lcd.jpg

If you would like to discuss your requirement or need any additional information on our 36.6 inch stretched bar lcd ultra wide display on the shelf, then please do not hesitate to contact our sales team
