37.6 inch stretched bar lcd screen for advertisement

1)Resolution : 1920(RGB) X 360 2)Active screen size: 919.29(L) x 258.50(W)mm 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) 4)Display colors : 16.7M 5)Contrast ratio : 1000:1 6)Response Time : 9ms 7)Brightness: 500 cd/㎡(Typ.) 8) Power & Consumption : 100-240V(50/60Hz) 9) Installation : Embedded, wall-mounted 10) CPU : T972 A55 processer; 11) RAM : 2GB ; ROM : 8GB 12) OS Version : Android 9.0 13)Outline dimension:958(L)X297(W)X49(D)mm

Description Package Information Inquiry

ZXTLCD stretched bar lcd screen was a serial products which focus on supermarket and transportation area, which mainly use for shows the price information for the goods on the shelf , and bus/train routine and time schedule on metro or bus station, stretched lcd with customized size and screen ratio , can perfectly combine with good idea with business. ZXTLCD have the factory can modify the stretched lcd display size and backlight brightness according to different project requirement, it work with the content management software to remotely manage the advertising and transportation information via network which supply via lan cable, wifi or 4G network connection. ZXTLCD dstretched bar lcd screen also work with CMS system, such as our taxi top stretched digital display screen, make our life become more interesting and make business more attractive.

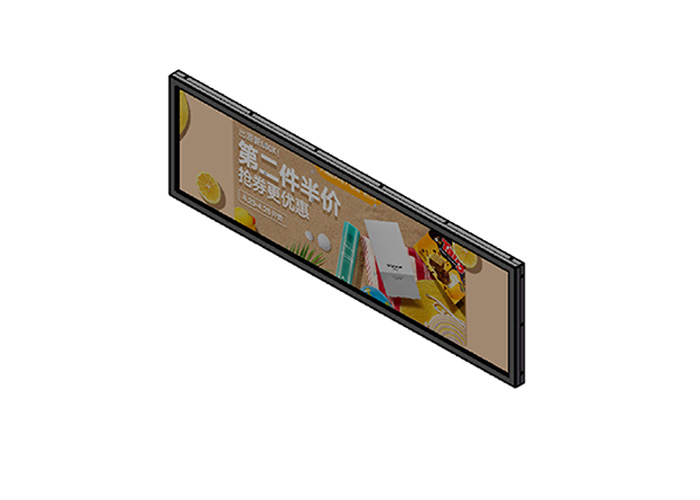

stretched lcd.jpg

The specification
Model No	Product model	ZXTLCD-BAR376AJSY
LCD Screen Panel	Screen size	37.6" LCD Panel
	Active display area	919.29(H) X 258.50(V)mm
	Resolution	1920(V) X 360(H)
	Brightness	500cd/m2
	Contrast ratio	2000:1
	Display color	16.7M
	Backlight type	WLED
	Viewing angles	89/89/89/89 (Typ.)(CR≥10)
	Response time	9ms
	Lifespan	50000 hours
Monitor PCB Board	CPU	T972 ,Quad core A35
	RAM	2gb
	ROM	8gb EMMC
	System	Android 9.0
	Network support	10M/100M Auto-adjust Gigabit Ethernet , WIFI
	RTC real time clock	Support timing on / off function
	Interfaces	1*USB2.0
		1*OTG USB
		1*RJ45
	Video formats	wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
	Photo formats	BMP、JPEG、PNG、GIF
machine specification	Operating voltage	100-240V(50/60Hz)
	Power consumption	≤60W
	Product size	958(H)X297(V)X49(D)mm
	Installation	Embedded, wall-mounted
	Apperance material	Metal shell
	Net weight	≤18KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-20℃～60℃
		Humidity：5%～95%
		Atmospheric Pressure：86kPa～104kPa
	Working Environment	Temperature：-10℃～50℃
		Humidity：10%～85%
		Atmospheric Pressure：86KPa～104KPa
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

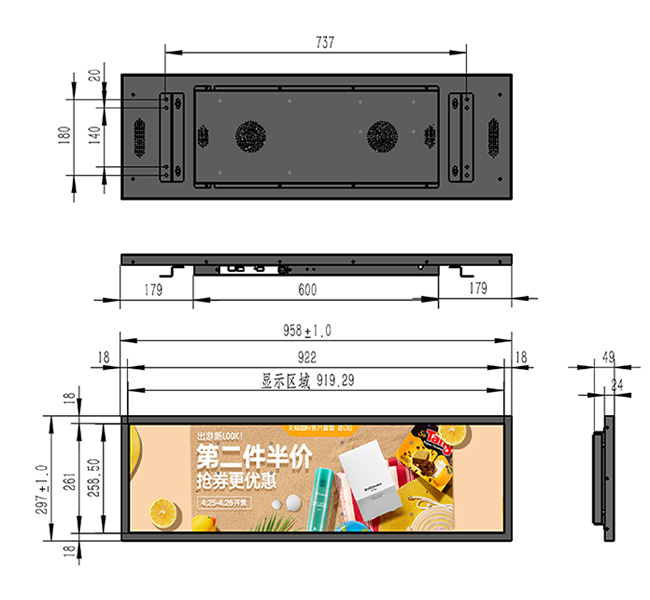

The design drawing as follows

lcd stretched display.jpg

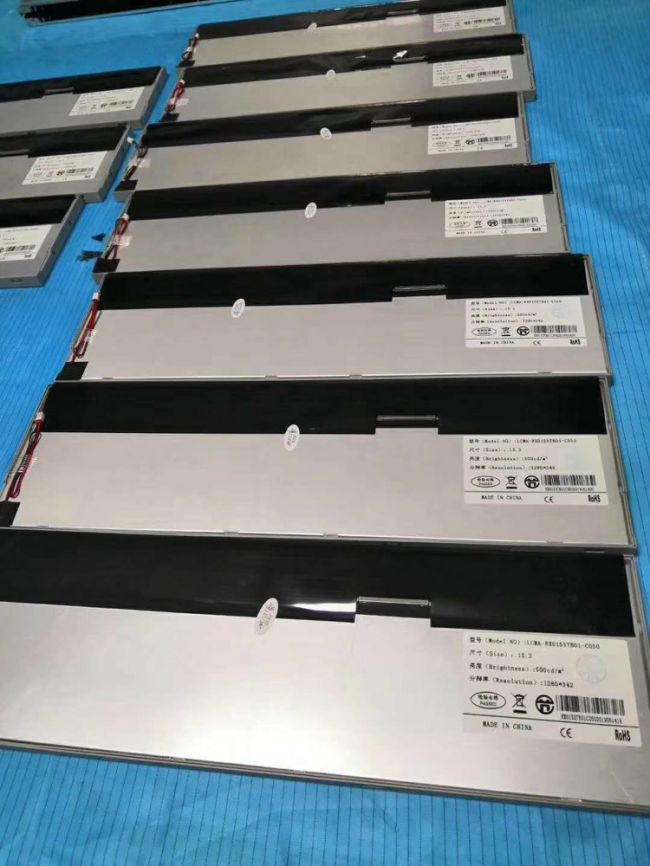

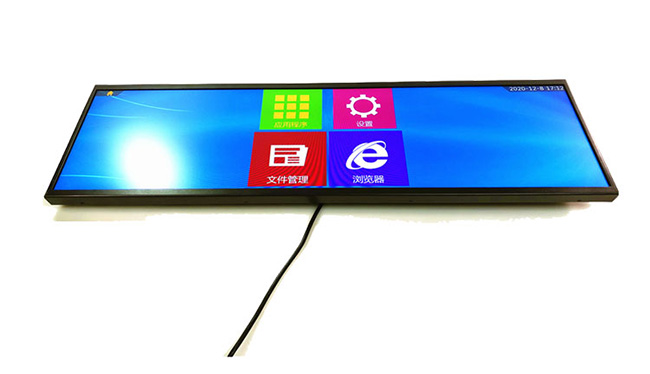

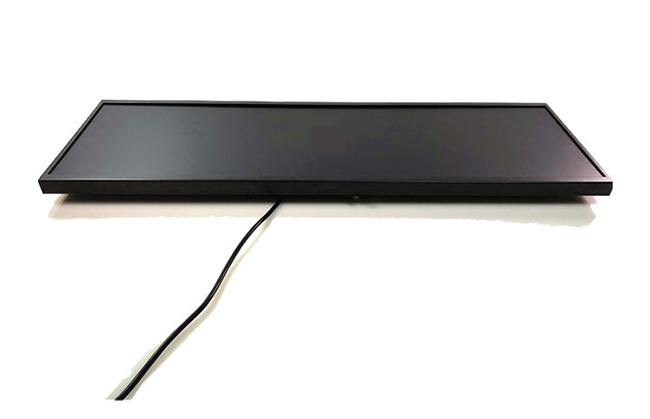

The physical photo as follows :

stretched bar lcd.jpg stretched bar.jpg

If you would like to discuss your requirement or need any additional information on our 37.6 inch stretched bar lcd screen for advertisement, then please do not hesitate to contact our sales team.
