47.7 inch stretched bar lcd digital advertising display on the shelf

1)Resolution : 3840(RGB) X 160 ; 2)Active screen size: 1209.6(Length) x 80(Width)mm ; 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) ; 4)Display colors : 16.7M ; 5)Contrast ratio : 1000:1 ; 6)Response Time : 9.5ms ; 7)Brightness: 400 cd/㎡(Typ.) ; 8) Power & Consumption : DC 12V 2A, 40w ; 9) Installation : Embedded, wall-mounted ; 10) CPU : T972 A55 processer ; 11) RAM : 2GB ; ROM : 8GB ; 12) OS Version : Android 9.0 ; 13)Outline dimension:1241.6(L)X110(W)X32(D)mm.

Description Package Information Inquiry

Stretched bar lcd digital advertising display is a commercial display product with an ultra wide LCD screen. In order to meet different needs, it has various of display ratios of length and width. Based on common usage and customer requirements, ZXTLCD provides dozens of all-in-one digital signage stretched displays and stretched lcd monitors, as a way to offer cost-effective overall solutions, while remaining open to more possibilities.

3 shelf edge lcd.jpg

The specification
Model No	Product model	ZXTLCD-BAR477AQSP
LCD Screen Panel	Screen size	47.7" LCD Panel
	Active display area	1209.6(H) X 80(V)mm
	Resolution	3840(V) X 160(H)
	Brightness	500cd/m2
	Contrast ratio	1000:1
	Display color	16.7M
	Backlight type	LED
	Viewing angles	89/89/89/89 (Typ.)(CR≥10)
	Response time	9.5ms
	Lifespan	Above 60000 hours
Main board	CPU	T972 ,Quad core A35
	RAM	2gb
	ROM	8gb EMMC
	System	Android 9.0
	Network support	10M/100M Auto-adjust Gigabit Ethernet , WIFI
	RTC real time clock	Support timing on / off function
	Interfaces	1*USB2.0
		1*OTG USB
		1*RJ45
	Video formats	wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
	Photo formats	BMP、JPEG、PNG、GIF
machine specification	Operating voltage	DC 12V / 2A
	Power consumption	≤40W
	Product size	1241.60(H)X110(V)X32(D）mm
	Speaker	no
	Installation	wall-mounted
	Apperance material	Metal shell
	Net weight	≤2.8KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-10℃～55℃
	Storage Environment	Humidity：10%～60% Non-Condensing
	Working Environment	Temperature：0℃～45℃
	Working Environment	Humidity：≤ 90℃ Non-Condensing
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

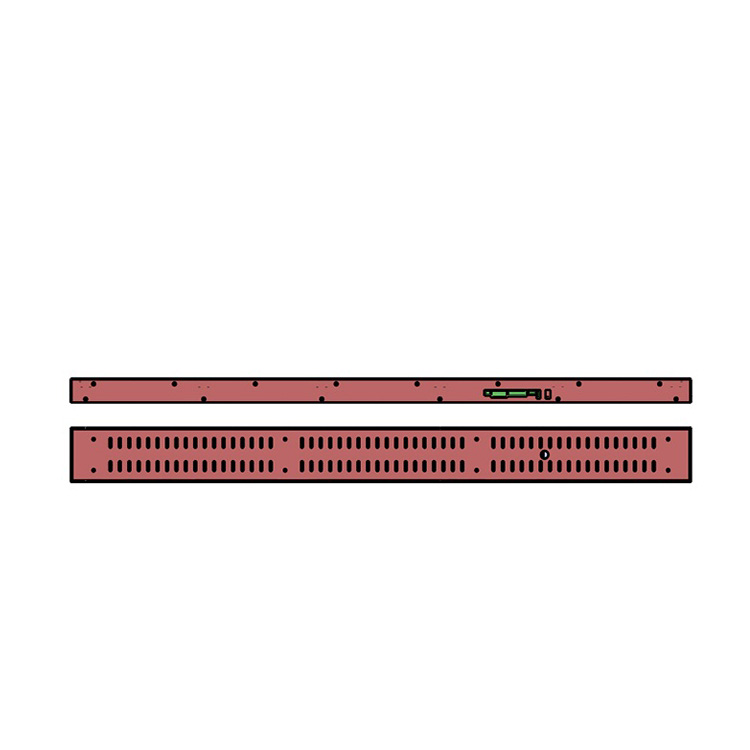

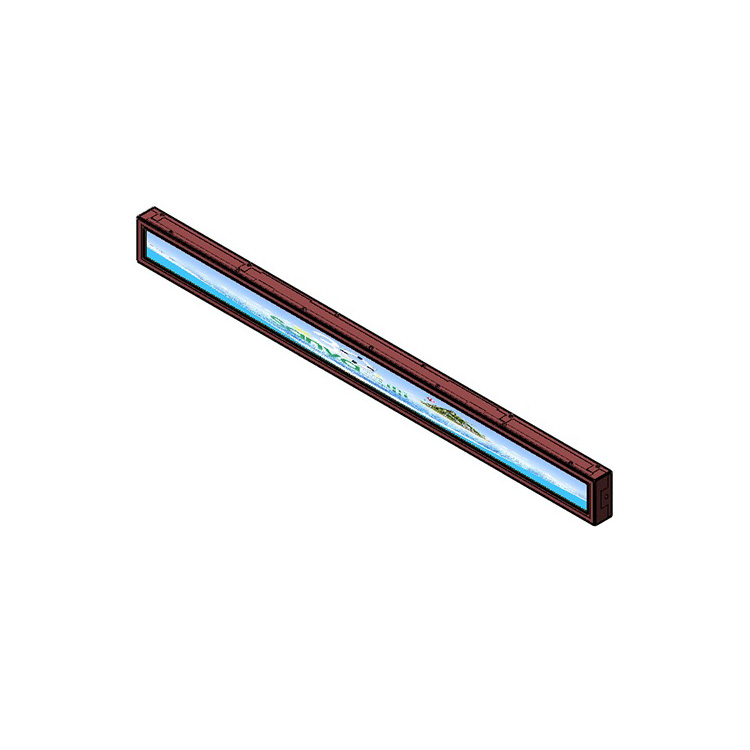

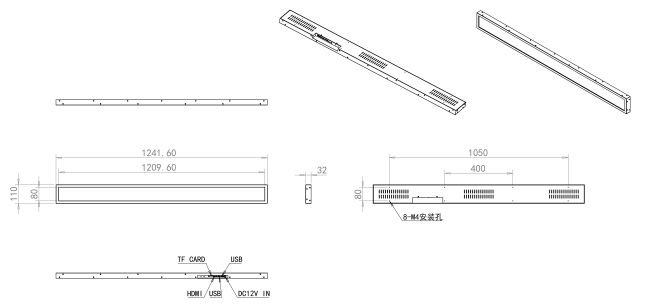

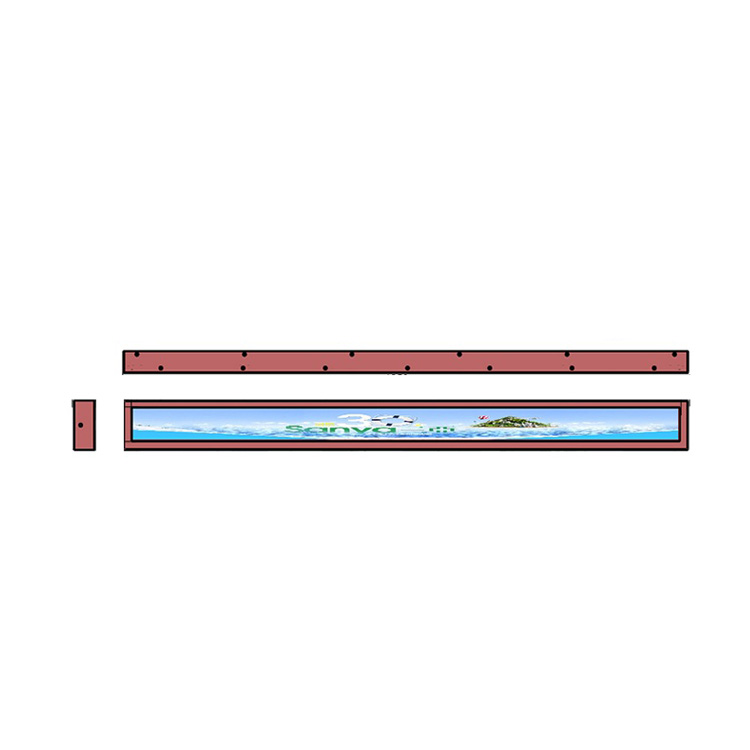

The design drawing as follows

stretched bar lcd.jpg

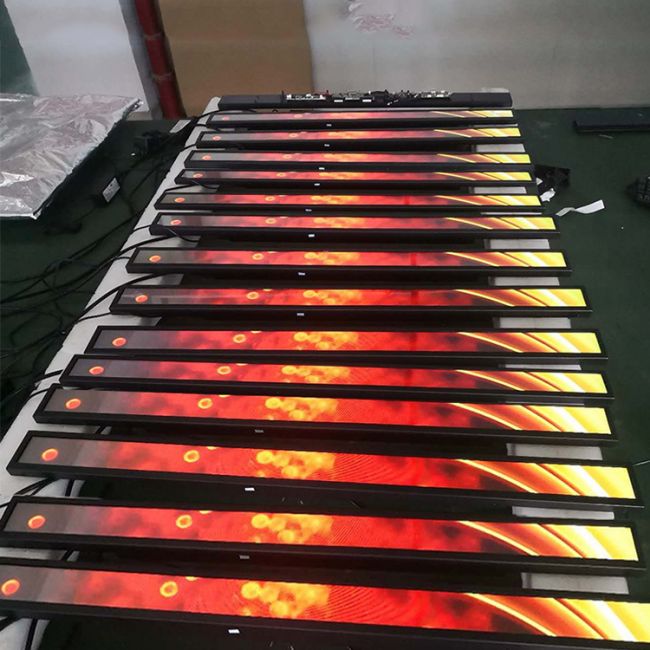

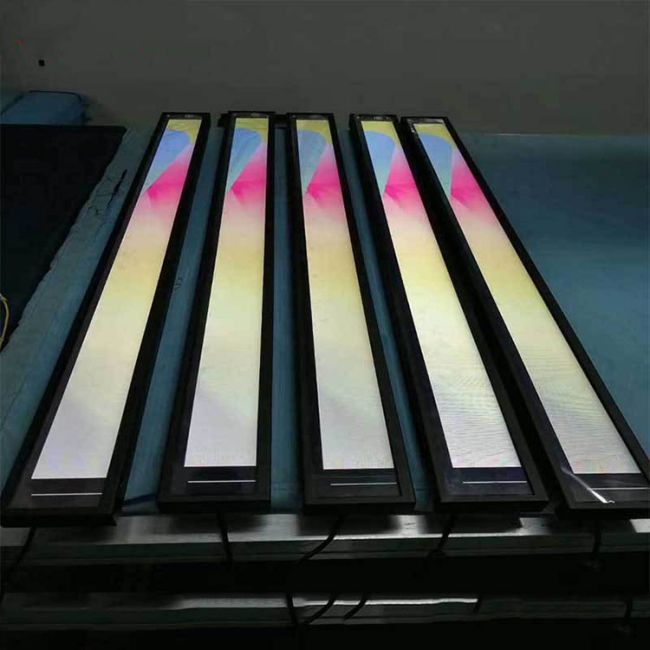

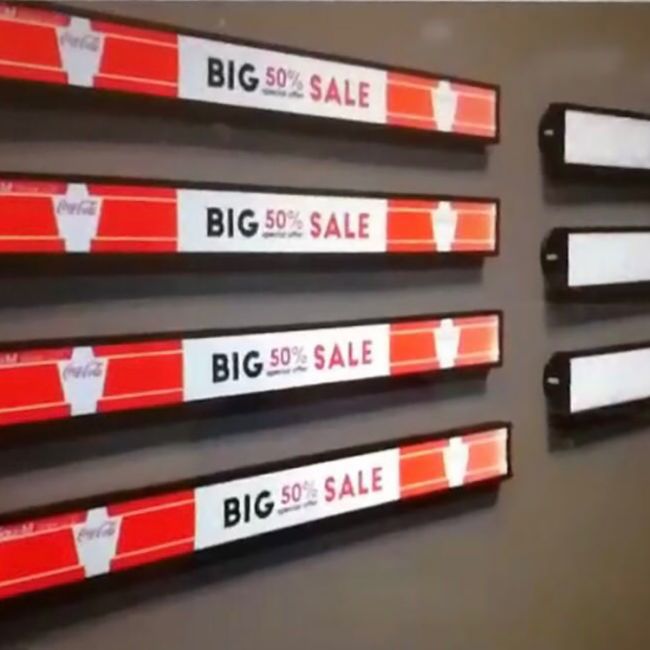

Physical Photo as follows:

1 shelf edge lcd.jpg

lcd shelf edge.jpg

shelf edge lcd.jpg

If you would like to discuss your requirement or need any additional information on our 47.7 inch stretched bar lcd digital advertising display on the shelf, then please do not hesitate to contact our sales team
