47.1 inch stretch bar display for shelf edge

1)Resolution : 3840(RGB) X 160 ; 2)Active screen size: 1196.16(Length) x 49.84(Width)mm ; 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) ; 4)Display colors : 16.7M ; 5)Contrast ratio : 1000:1 ; 6)Response Time : 9.5ms ; 7)Brightness: 500 cd/㎡(Typ.) ; 8) Power & Consumption : DC 12V 2A, 40w ; 9) Installation : Embedded, wall-mounted ; 10) CPU : T972 A55 processer ; 11) RAM : 2GB ; ROM : 8GB ; 12) OS Version : Android 9.0 ; 13)Outline dimension:1211.6(L)*67.5(W)X25.2(D)mm.
Description Package Information Inquiry

47.1 inch stretch bar display for shelf edge


        ZXTLCD Stretch bar display adopts closed-type design, which has strong safety performance, simple and elegant design, and adopts industrial quality, stable low-power operation; using templated independent design, easy installation and easy maintenance;

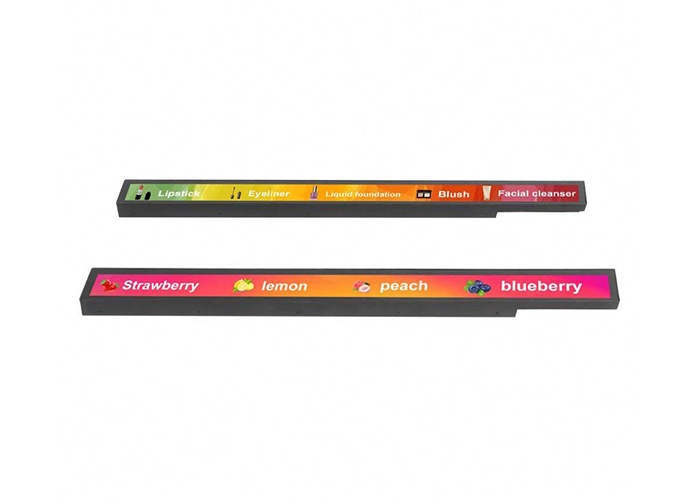

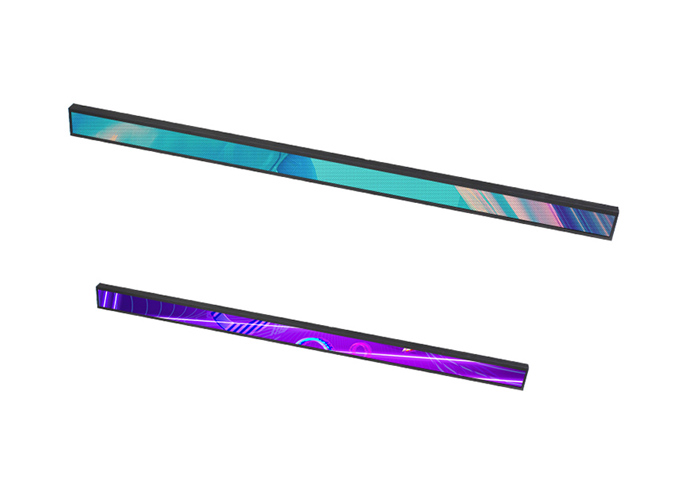

stretched lcd.jpg


The specification

Model No

Product model

ZXTLCD-BAR471AQSP

LCD Screen Panel

Screen size

47.1" LCD Panel

Active display area

1196.16(H) X 49.84(V)mm

Resolution

3840(V) X 160(H)

Brightness

500cd/m2

Contrast ratio

1000:1

Display color

16.7M

Backlight type

LED

Viewing angles

89/89/89/89 (Typ.)(CR≥10)

Response time

9.5ms

Lifespan

Above 60000 hours

Main board

CPU

T972 ,Quad core A35

RAM

2gb

ROM

8gb EMMC

System

Android 9.0

Network support

10M/100M Auto-adjust Gigabit Ethernet , WIFI

RTC real time clock

Support timing on / off function

Interfaces

1*USB2.0

1*OTG USB

1*RJ45

Video formats

wmvaviflvrmrmvbmpeg tsmp4

Photo formats

BMPJPEGPNGGIF

machine specification

Operating voltage

DC 12V / 2A

Power consumption

40W

Product size

1211.60(H)X67.5(V)X25.2(Dmm

Speaker

no

Installation

wall-mounted

Apperance material

Metal shell

Net weight

2.8KG

Surface treatment

Black metal paint

Environmental

Storage Environment

Temperature-10℃55

Humidity10%60% Non-Condensing

Working Environment

Temperature045

Humidity 90 Non-Condensing

Packing list

Bar lcd display

1pcs

Power Cable

1Pcs

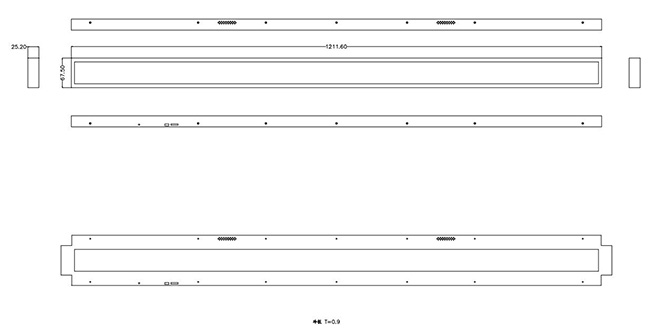

The design drawing as follows

stretched lcd display.jpg

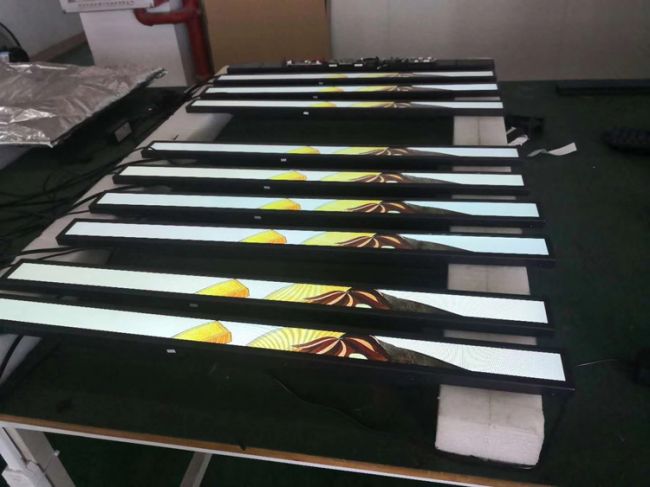

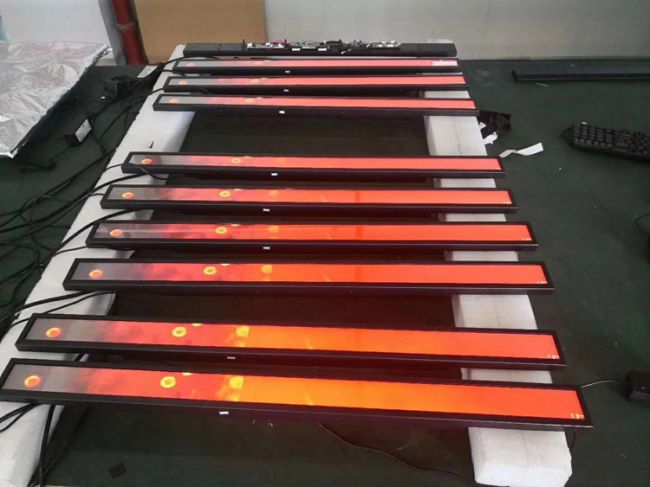

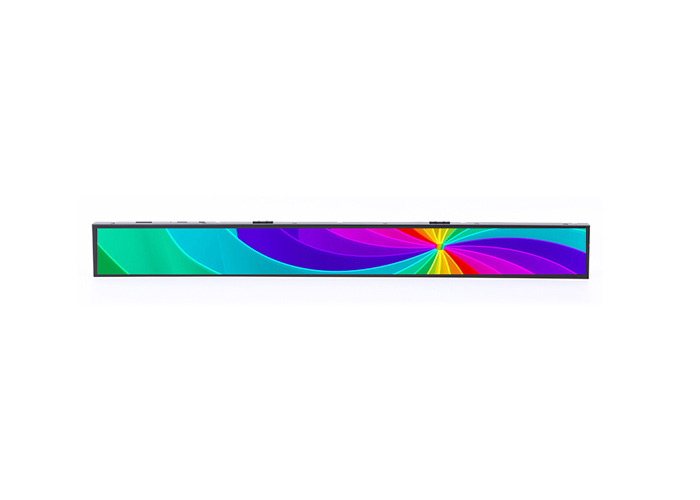

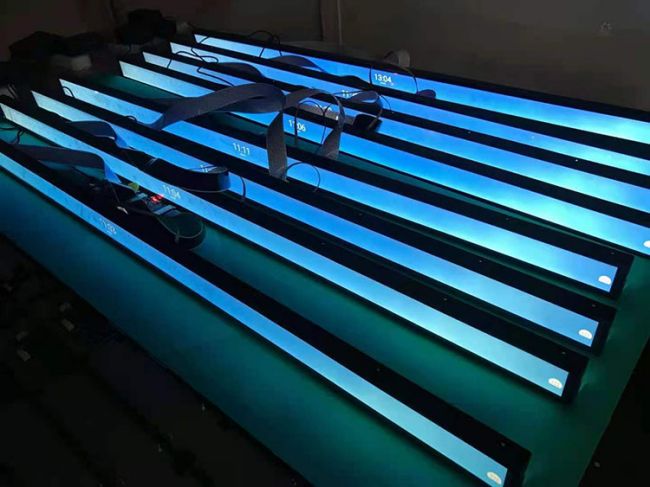

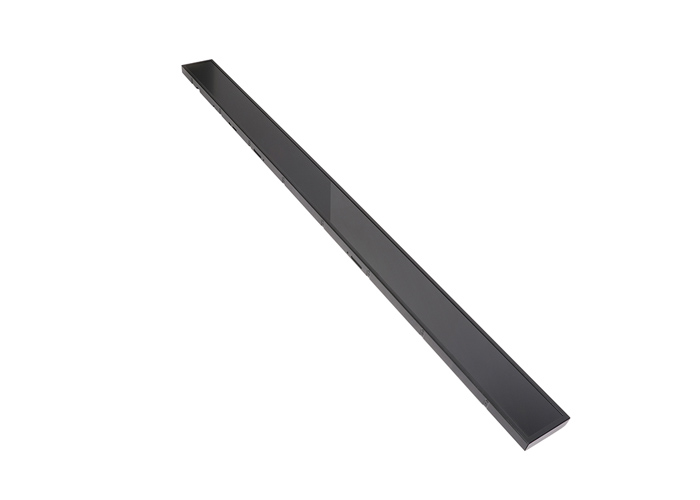

Physical photo as follows :

bar lcd display 7.jpg

stretched bar display 07.jpg

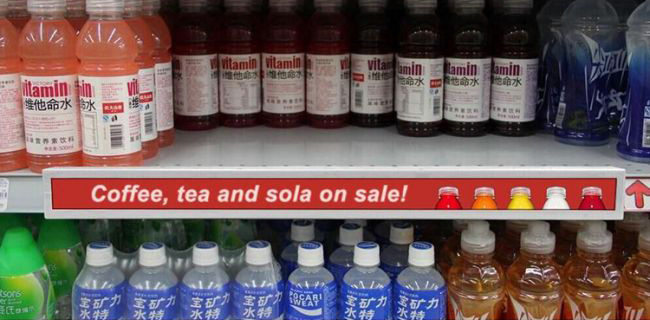

shelf edge lcd display.jpg

If you would like to discuss your requirement or need any additional information on our 47.1 inch stretch bar display for shelf edge, then please do not hesitate to contact our sales team.
