46.6 inch stretched bar display for retail shelf

1)Resolution : 3840(RGB) X 120 ; 2)Active screen size: 1189.7(Length) x 39(Width)mm ; 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) ; 4)Display colors : 16.7M ; 5)Contrast ratio : 3000:1 ; 6)Response Time : 9.5ms ; 7)Brightness: 500 cd/㎡(Typ.) ; 8) Power & Consumption : DC 12V 2A, 40w ; 9) Installation : Embedded, wall-mounted ; 10) CPU : T972 A55 processer ; 11) RAM : 2GB ; ROM : 8GB ; 12) OS Version : Android 9.0 ; 13)Outline dimension:1202.4(L)*52.7(W)X20.3(D)mm ;

Description Package Information Inquiry

Stretched bar display is a new concept lcd advertising screen designed for the shelf. Compared with the traditional lcd screen, it can be customized according to the size of the shelf, with high definition, high luminous efficiency and high color saturation and ultra thin for branding or advertising on various shelves as well as price tags and information display on the edge of shelf.

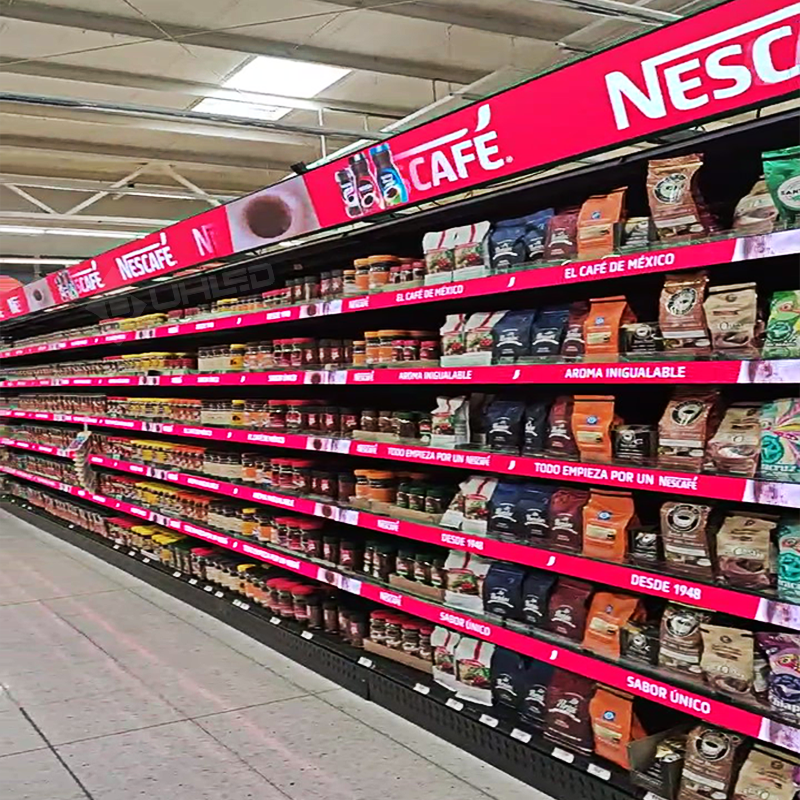

shelf lcd display.png

The specification
Model No	Product model	ZXTLCD-BAR466AQSP
LCD Screen Panel	Screen size	46.6" LCD Panel
	Active display area	1189.7(H) X 39(V)mm
	Resolution	3840(V) X 120(H)
	Brightness	500cd/m2
	Contrast ratio	3000:1
	Display color	16.7M
	Backlight type	LED
	Viewing angles	88/88/88/88 (Typ.)(CR≥10)
	Response time	9.5ms
	Lifespan	Above 60000 hours
Main board	CPU	T972 ,Quad core A35
	RAM	2gb
	ROM	8gb EMMC
	System	Android 9.0
	Network support	10M/100M Auto-adjust Gigabit Ethernet , WIFI
	RTC real time clock	Support timing on / off function
	Interfaces	1*USB2.0
		1*OTG USB
		1*RJ45
	Video formats	wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
	Photo formats	BMP、JPEG、PNG、GIF
machine specification	Operating voltage	DC 12V / 2A
	Power consumption	≤40W
	Product size	1202.4(H)X52.7(V)X20.3(D）mm
	Speaker	no
	Installation	wall-mounted
	Apperance material	Metal shell
	Net weight	≤2.5KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-10℃～55℃
	Storage Environment	Humidity：10%～60% Non-Condensing
	Working Environment	Temperature：0℃～45℃
	Working Environment	Humidity：≤ 90℃ Non-Condensing
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

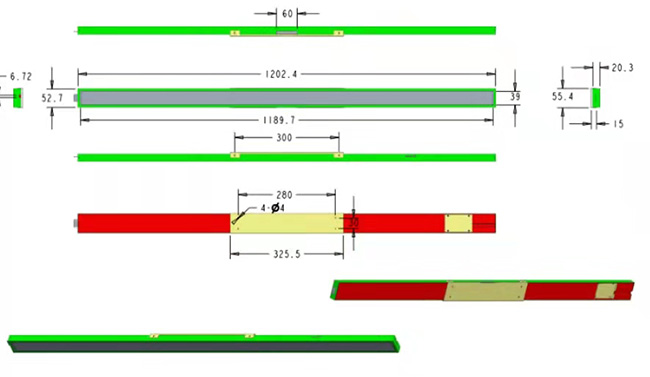

The design drawing as follows

bar lcd display.jpg

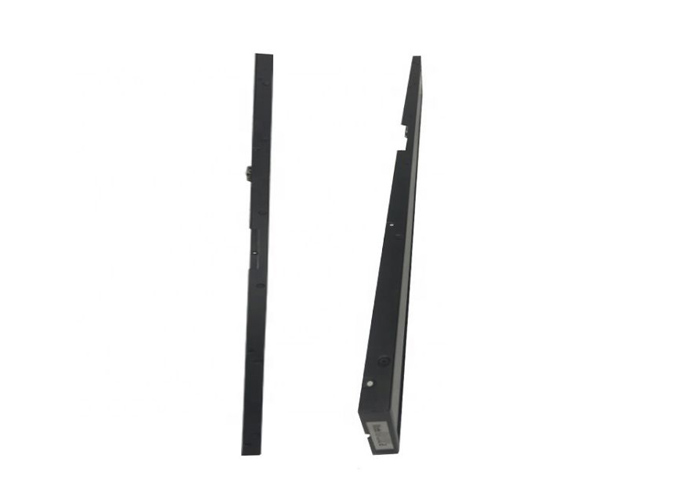

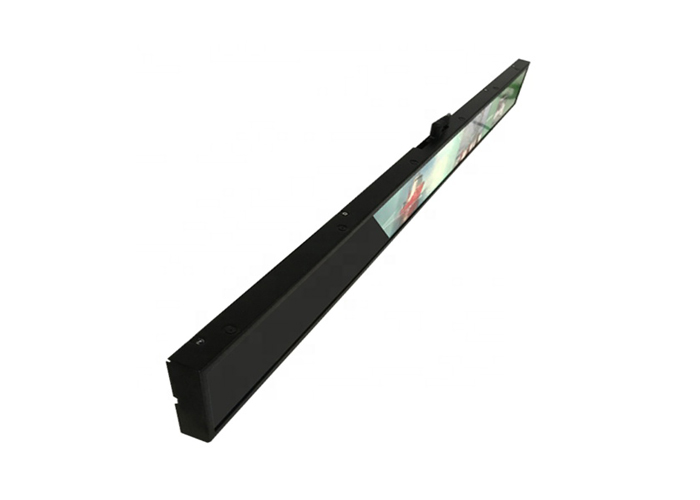

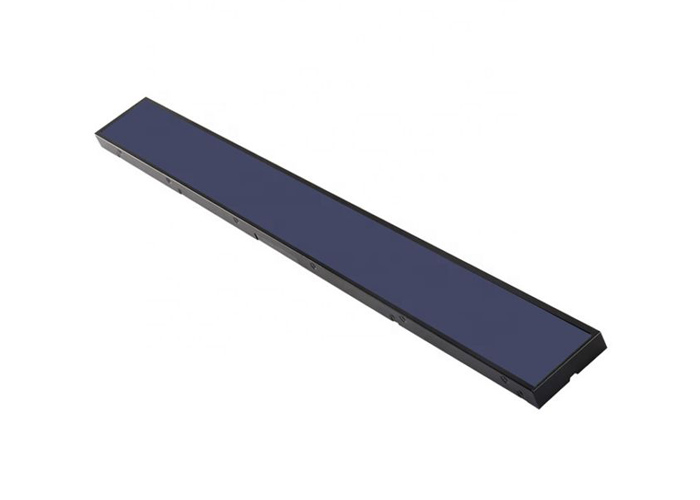

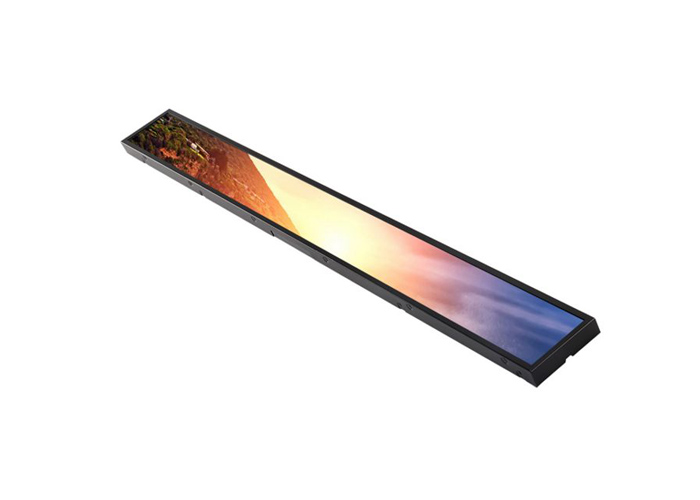

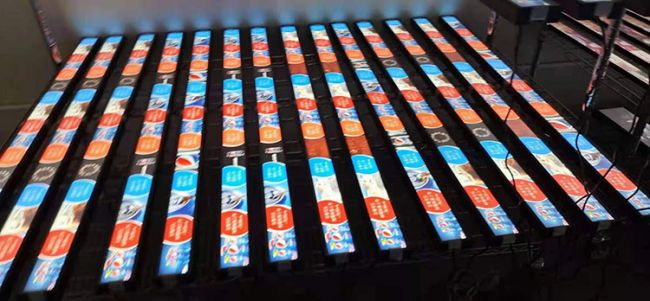

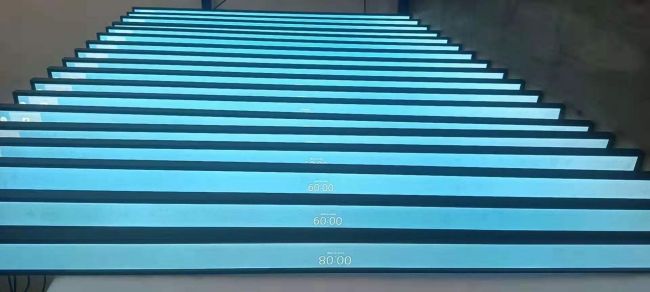

The physical photo as follows :

If you would like to discuss your requirement or need any additional information on our 46.6 inch stretched bar display for retail shelf, then please do not hesitate to contact our sales team.
