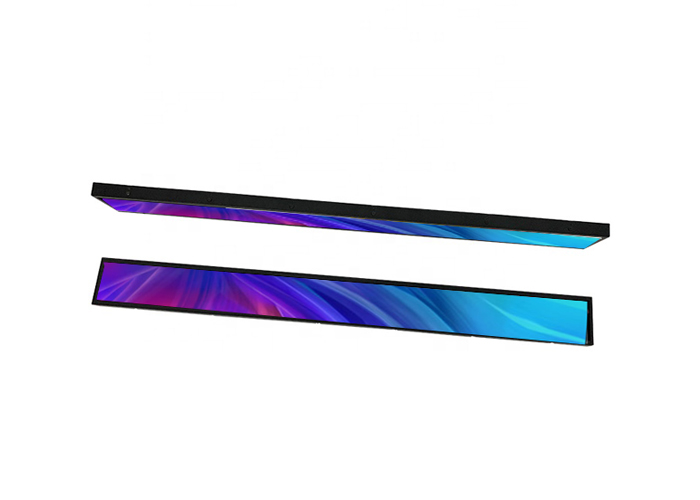

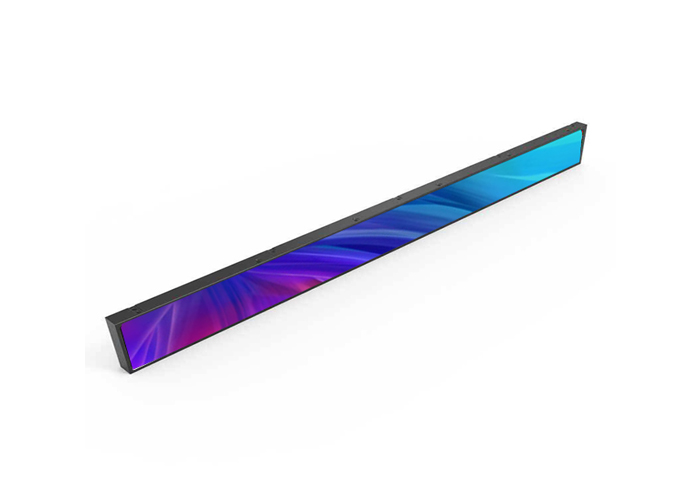

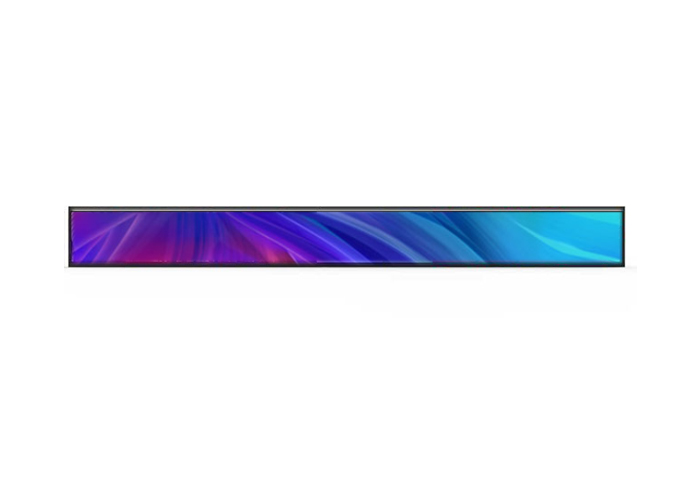

37.8 inch Android Stretched Bar LCD Display for supermarket shelf

1)Resolution : 2880(RGB) X 158 ; 2)Active screen size: 964.84(L) x 58.41(W)mm ; 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) ; 4)Display colors : 16.7M ; 5)Contrast ratio : 1000:1 ; 6)Response Time : 9.5ms ; 7)Brightness: 700 cd/㎡(Typ.) ; 8) Power & Consumption : DC 12V 2A, 20w ; 9) Installation : Embedded, wall- mounted ; 10) CPU : T972 A55 processer; ; 11) RAM : 2GB ; ROM : 8GB ; 12) OS Version : Android 9.0 ; 13)Outline dimension:979.04(L)*72.61(W)X20(D)mm ;

Description Package Information Inquiry

Product Features :

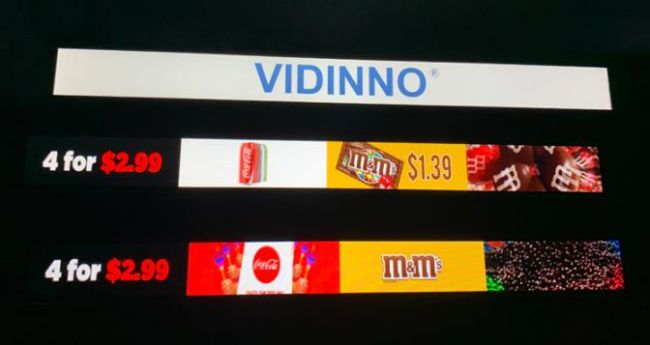

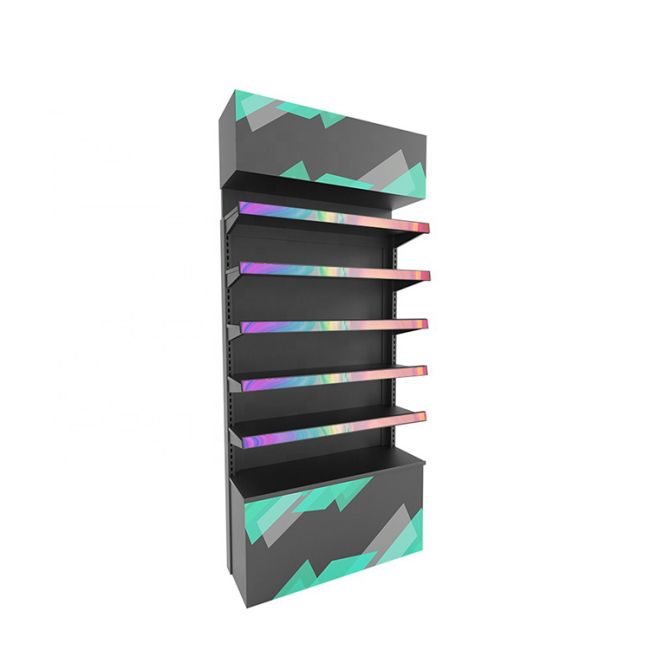

1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.

2.Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.

3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol .

4.Remotely report system utilization and memory usage.

5.Content plays automatically upon set up of schedule.

6.Control, monitor and design screen layouts remotely by the remote control office.

7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.

8.Brands of LCD screen for Samsung, LG, Chime, HSD, AU, Toshiba etc, A Class 335 standard, full new and factory original packing screen.

9.Fixing method: wall mounting or ceiling fixing.

10.Easy connection to wifi.

bar lcd display.jpg

The specification
Model No	Product model	ZXTLCD-BAR378AHMJ
LCD Screen Panel	Screen size	37.8" LCD Panel
	Active display area	964.84(H) X 58.41(V)mm
	Resolution	2880(V) X 158(H)
	Brightness	700cd/m2
	Contrast ratio	1000:1
	Display color	16.7M
	Backlight type	LED
	Viewing angles	89/89/89/89 (Typ.)(CR≥10)
	Response time	9.5ms
	Lifespan	Above 60000 hours
Main board	CPU	T972 ,Quad core A35
	RAM	2gb
	ROM	8gb EMMC
	System	Android 9.0
	Network support	10M/100M Auto-adjust Gigabit Ethernet , WIFI
	RTC real time clock	Support timing on / off function
	Interfaces	1*USB2.0
		1*OTG USB
		1*RJ45
	Video formats	wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
	Photo formats	BMP、JPEG、PNG、GIF
machine specification	Operating voltage	DC 12V / 2A
	Power consumption	≤20W
	Product size	979.04(H)X72.61(V)X20(D）mm
	Speaker	no
	Installation	wall-mounted
	Apperance material	Metal shell
	Net weight	≤2.5KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-10℃～55℃
	Storage Environment	Humidity：10%～60% Non-Condensing
	Working Environment	Temperature：0℃～45℃
	Working Environment	Humidity：≤ 90℃ Non-Condensing
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

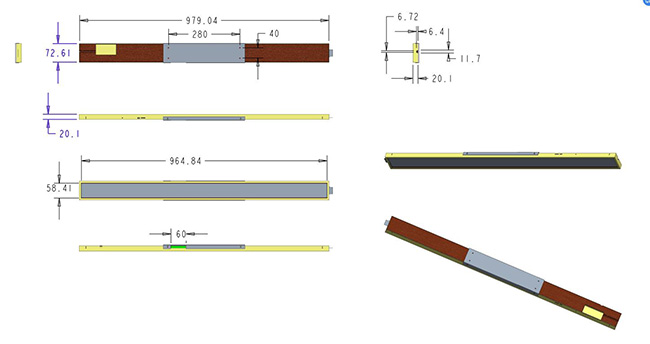

The design drawing as follows

stretched bar.jpg

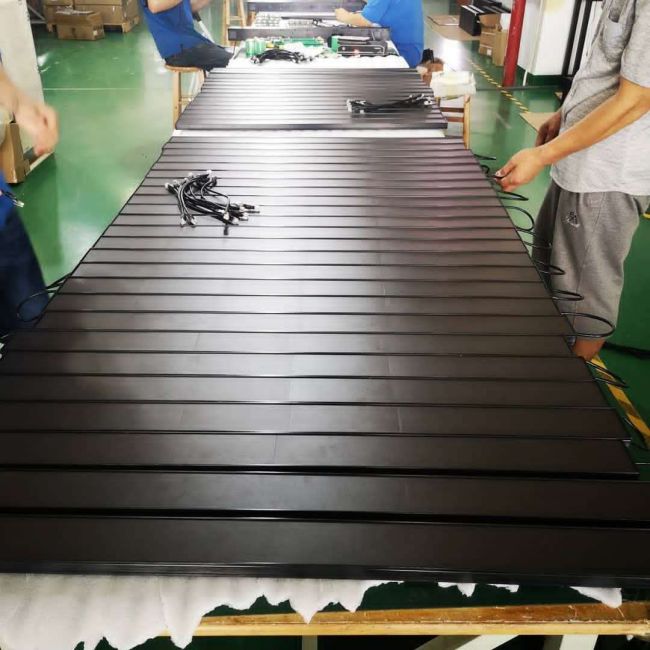

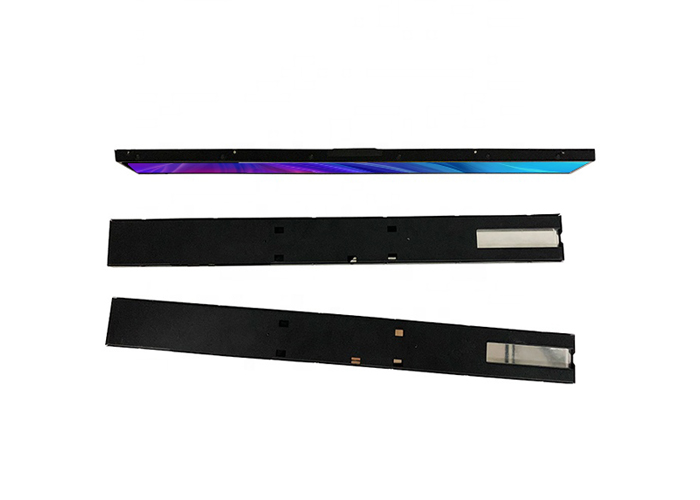

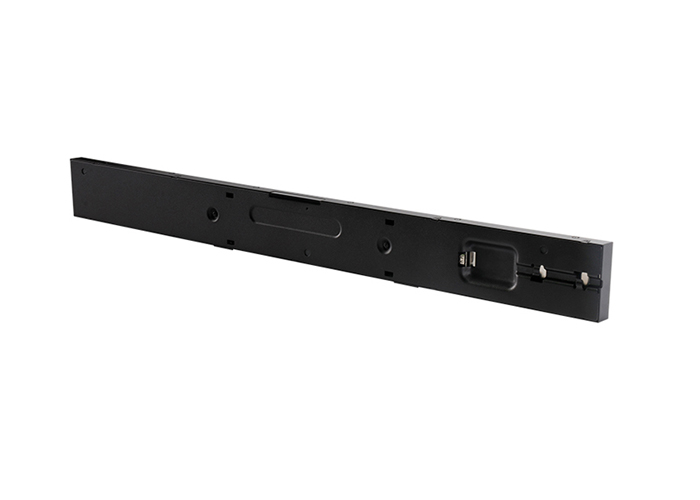

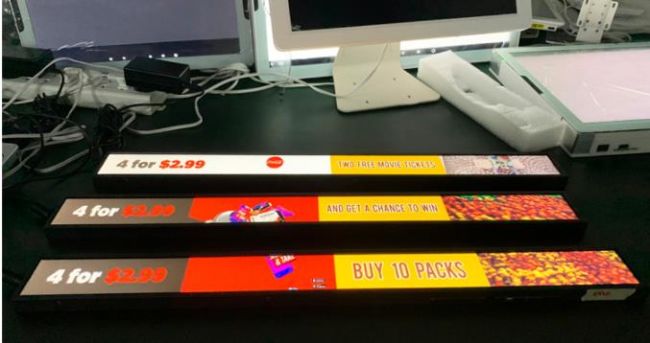

The physical photo as follows:

If you would like to discuss your requirement or need any additional information on our 37.8 inch Android Stretched Bar LCD Display, then please do not hesitate to contact our sales team.
