43.8 inch 4K bar lcd screen for supermarket

1)Resolution : 3840 X 1080 ; 2)Active screen size: 1071.36(L) x 301.32(W)mm ; 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) ; 4)Display colors : 16.7M ; 5)Contrast ratio : 2000:1 ; 6)Response Time : 9ms ; 7)Brightness: 500 cd/㎡(Typ.) or higher brightess optional ; 8)Contrast ratio : 2000:1 ; 9) Power & Consumption : 100-240V(50/60Hz), 60W ; 10) Installation : Flush mounted or wall-mounted optional ; 11) CPU : T972 ,Quad core Processor ; 12) RAM : 2GB ; ROM : 8GB, 13) OS Version : Android 9.0 ; 14)Outline dimension:1122.38(L)X350.6(W)X50(D)mm

Description Package Information Inquiry

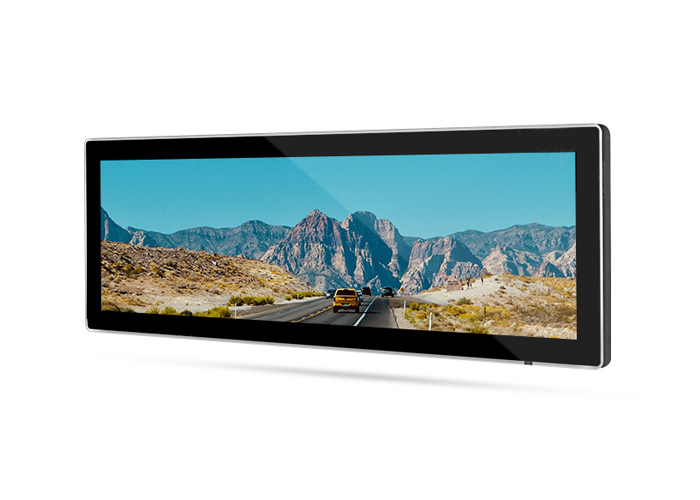

43.8 inch 4K bar lcd screen is designed for super market shelf or other part which don't need standard 16:9 screens, with it's super slim and ultra width design, attracted more and more attentions, comparing to LED, it's displaying is more clear and lighter in weight.

stretch screen.jpg

The specification
Model No	Product model	ZXTLCD-BAR438AHMJ4K
LCD Screen Panel	Screen size	43.8" LCD Panel
	Active display area	1071.36(H) X 301.32(V)mm
	Resolution	3840(V) X 1080(H)
	Brightness	400cd/m2 or higher brightness optional
	Contrast ratio	2000:1
	Display color	16.7M 68%NTSC
	Backlight type	WLED
	Viewing angles	85/85/85/85 (Typ.)(CR≥10)
	Response time	10ms
	Lifespan	50000 hours
Monitor PCB Board	CPU	T972 ,Quad core A35
	RAM	2gb
	ROM	8gb EMMC
	System	Android 9.0
	Network support	10M/100M Auto-adjust Gigabit Ethernet , WIFI
	RTC real time clock	Support timing on / off function

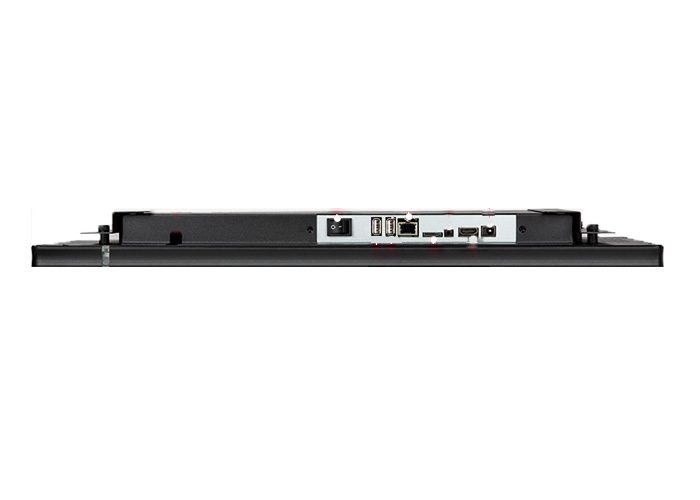

	Interfaces	1*USB2.0
		1*OTG USB
		1*RJ45
	Video formats	wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
	Photo formats	BMP、JPEG、PNG、GIF
machine specification	Operating voltage	100-240V(50/60Hz)
	Power consumption	≤60W
	Product size	1122.38(H)X350.6(V)X50(D)mm
	Installation	wall-mounted or Flush mounted optional
	Enclosure material	Metal structure shell + Tempered glass or Aluminum profile + Tempered glass optional
	Net weight	≤12.5KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-20℃～60℃
		Humidity：5%～95%
		Atmospheric Pressure：86kPa～104kPa
	Working Environment	Temperature：-10℃～50℃
		Humidity：10%～85%
		Atmospheric Pressure：86KPa～104KPa
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

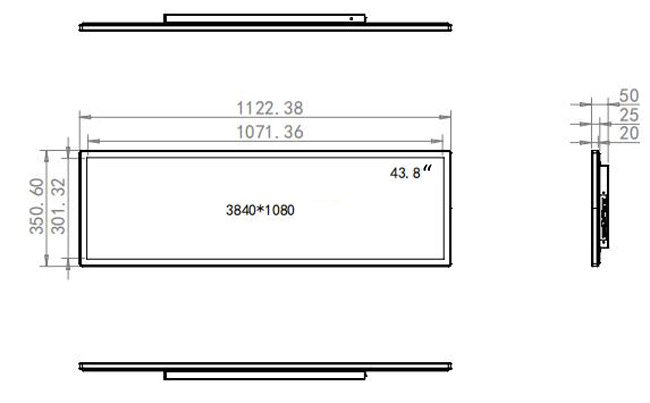

The design drawing as follows

The design drawing of 43.8 inch 4K stretched lcd.jpg

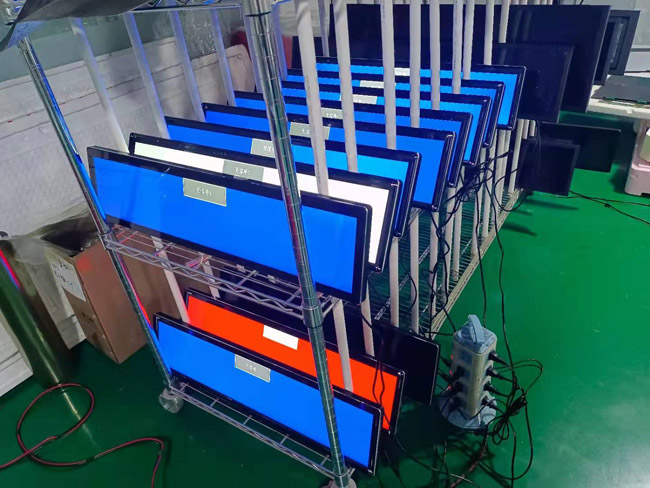

We will default Aluminum profile + Tempered glass as the enclosure appearance, the Physical Photo as follows :

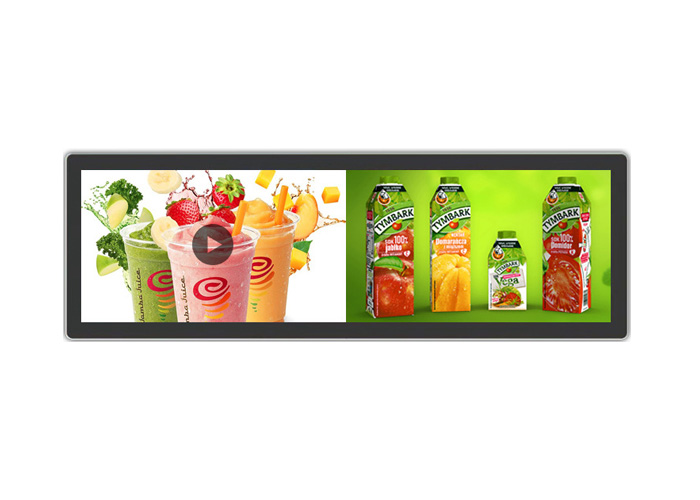

bar lcd display.jpg

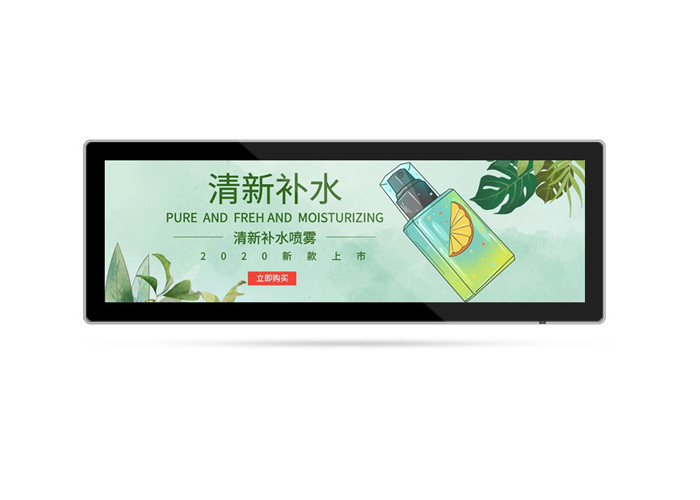

bar lcd panel.jpg

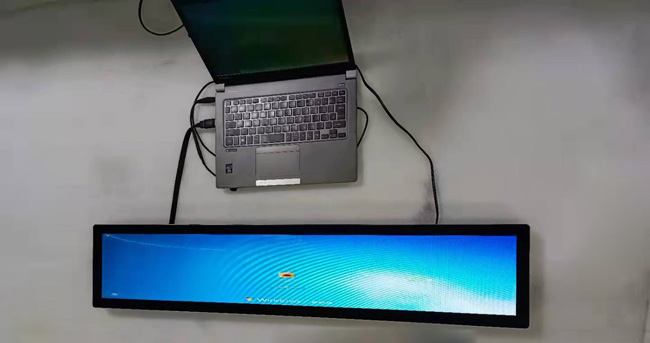

The video for 43.8 inch 4K bar lcd screen for supermarket with Aluminum profile + Tempered glass as follows :

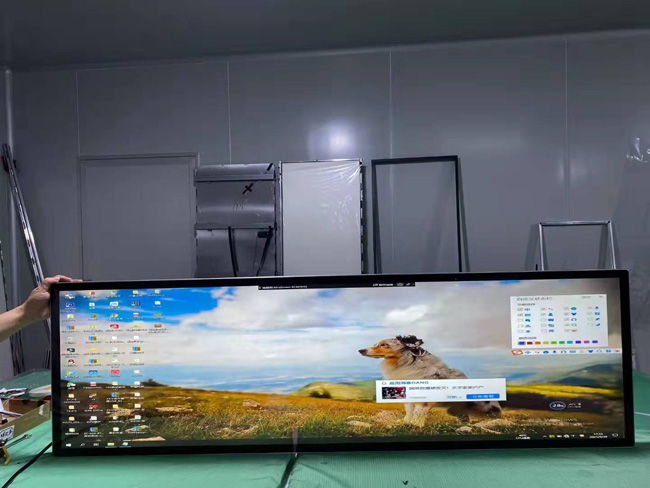

stretched lcd display.jpg

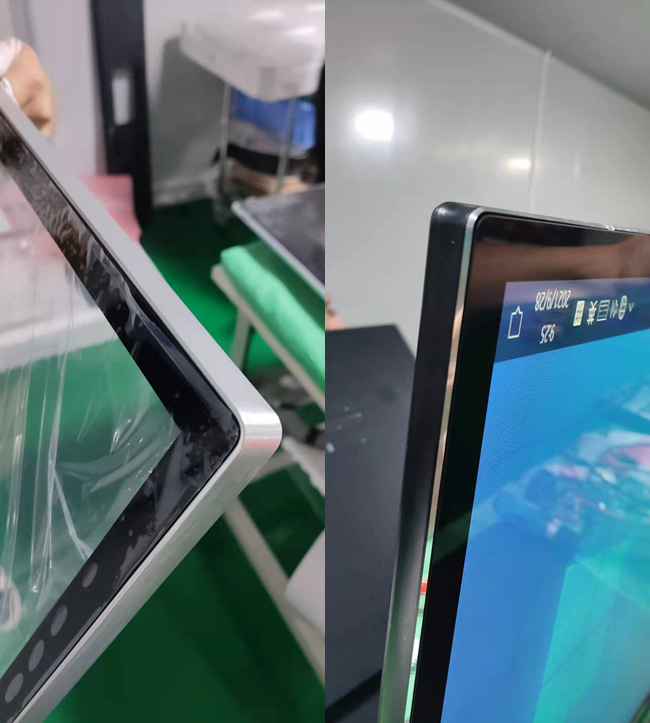

If you don't like Aluminum profile + Tempered glass as the enclosure appearance, we also offer Metal structure shell + Tempered glass for choice, the physical photo as follows :

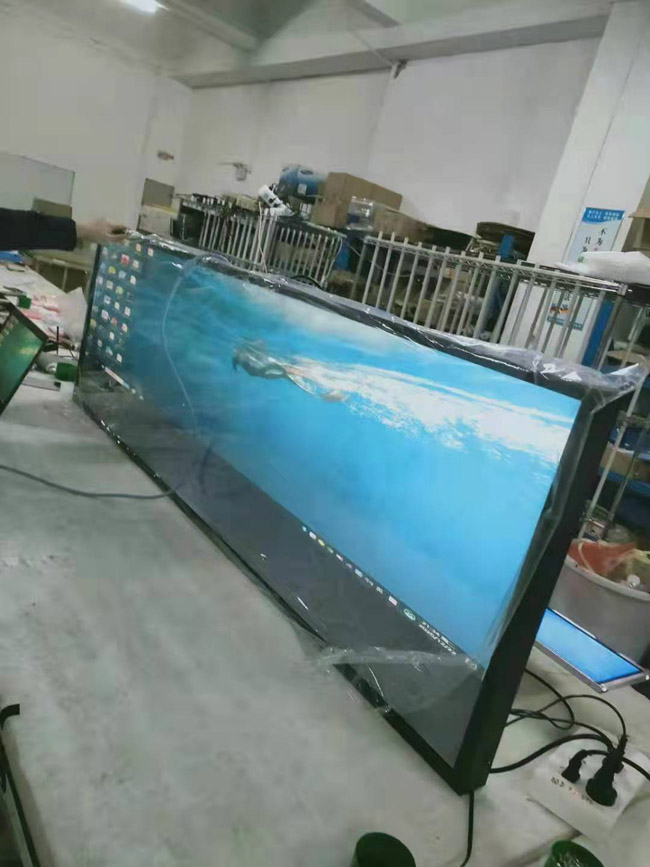

stretch monitor.jpg

shelf stretched bar.jpg

If you would like to discuss your requirement or need any additional information on our 43.8 inch 4K bar lcd screen , then please do not hesitate to contact our sales team.

Packing List
Net weight	12kg
Inner standard package size	1175405150mm

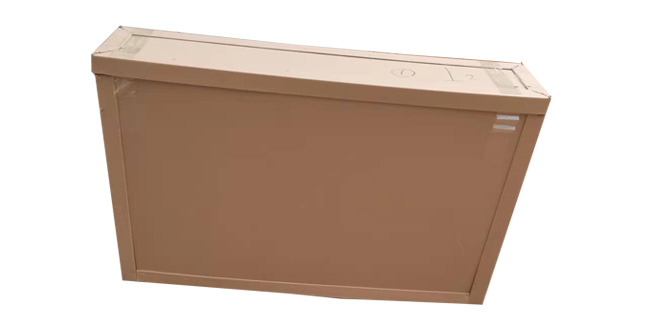

Outer package soloution A - Customized honeycomb Carton Box Package

Packing List
Gross weight	20kg per unit
Honeycomb Carton box	122X43X15cm

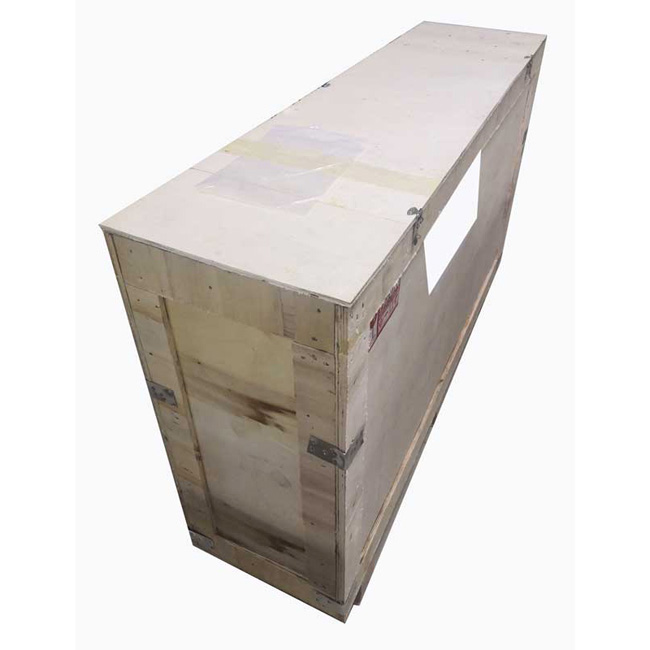

Outer package soloution B - Customized wooden Box Package

Packing List
Gross weight	25kg per unit
Honeycomb Carton box	125X55X15cm
