19 inch Stretched Bar lcd touch screen monitors all in one display

1) Resolution : 1920(RGB) X 540 ; 2) Active screen size: 476.60(L) x 80(W)mm ; 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) ; 4) Display colors : 16.7M ; 5) Contrast ratio : 1200:1 ; 6 ) Response Time : 9.5ms ; 7) Brightness: 400 cd/㎡(Typ.) ; 8) Power & Consumption : USB 12V/2A, 25w ; 9) Installation : Embedded, wall-mounted ; 10) CPU : MSTAR V56(TSUMV56RUU) ; 11) Intweface : HDMI*2/USB/AV/TF/Audio/DC IN ; 12) Touch type : 10 points projected capacitive touchscreen ; 13) Outline dimension:522.64(L)*126(W)X42.66(D)mm

Description Package Information Inquiry

ZXTLCD are a specialist in stretch Bar lcd touch screen and have solutions in a variety of sizes and aspect ratios. High brightness sunlight readable options are available and touch overlays can be integrated for an interactive solution.

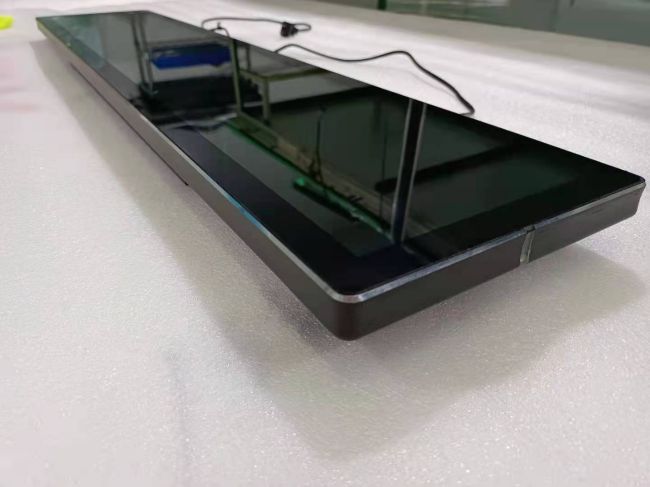

stretched bar lcd.jpg

The specification
Model No	Product model	ZXTLCD-BAR190MTQSP
LCD Screen Panel	Screen size	19" LCD Panel
	Active display area	476.64(H) X 80(V)mm
	Resolution	1920(V) X 540(H)
	Brightness	500cd/m2
	Contrast ratio	1200:1
	Display color	16.7M
	Backlight type	WLED
	Viewing angles	89°/89°/89°/89°(U/D/L/R)
	Response time	9.5ms
	Lifespan	50000 hours
Main board	CPU	MSTAR V56(TSUMV56RUU)
	Interfaces	USB2.0
		HDMI*2
		TF/Audio/DC IN
Touchscreen	Touch type	10 points Capacitive Touchscreen
machine specification	Operating voltage	USB 12V/2A
	Power consumption	≤25W
	Product size	522.64(H)X126(V)X42.66(D)mm
	Installation	Embedded, wall-mounted
	Appearance material	Metal shell
	Net weight	≤3.8KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-20℃～60℃
		Humidity：5%～95%
		Atmospheric Pressure：86kPa～104kPa
	Working Environment	Temperature：-10℃～50℃
		Humidity：10%～85%
		Atmospheric Pressure：86KPa～104KPa
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs

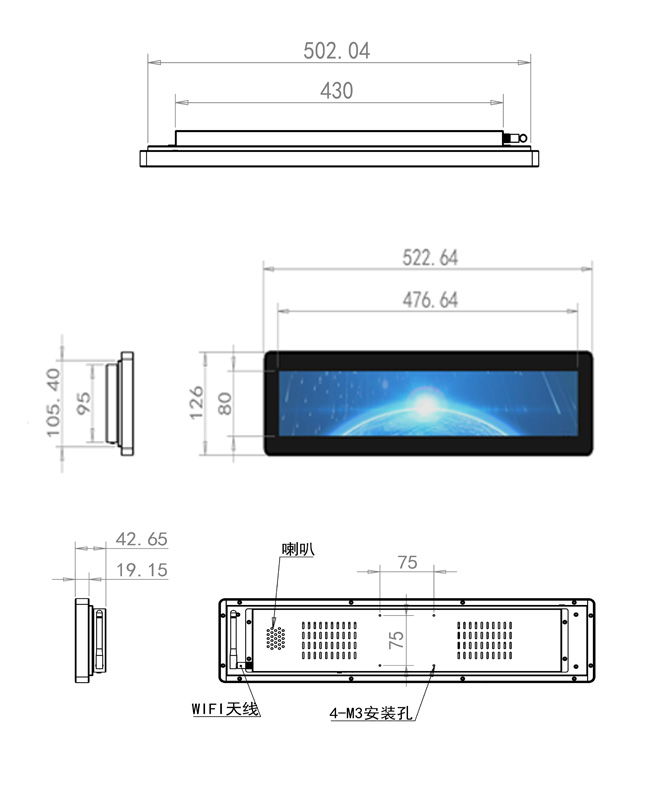

The design drawing as follows

Bar lcd display.jpg

If you would like to discuss your requirement or need any additional information on our 19 inch Stretched Bar lcd touch screen monitors all in one display, then please do not hesitate to contact our sales team
