24.5 inch Stretched bar touch screen lcd monitors
24.5 inch Stretched bar touch screen lcd monitors
24.5 inch bar touch screen is a commercial display product with an ultra wide Touchscreen LCD screen. In order to meet different needs, it has various of display ratios of length and width. Based on common usage and customer requirements, ZXTLCD provides dozens of all-in-one digital signage stretched displays and stretched lcd monitors, as a way to offer cost-effective overall solutions, while remaining open to more possibilities.
The specification | ||
Model No | Product model | ZXTLCD-BAR245MTQSP |
LCD Screen Panel | Screen size | 24.5" LCD Panel |
Active display area | 598(H) X 168(V)mm | |
Resolution | 1920(V) X 360(H) | |
Brightness | 500cd/m2 | |
Contrast ratio | 1200:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89°/89°/89°/89°(U/D/L/R) | |
Response time | 9.5ms | |
Lifespan | 50000 hours | |
Main board | CPU | MSTAR V56(TSUMV56RUU) |
Interfaces | USB2.0 | |
HDMI*2 | ||
TF/Audio/DC IN | ||
Touchscreen | Touch type | 10 points projected capacitive touchscreen |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤30W | |
Product size | 634(H)X204(V)X22(D)mm | |
Installation | Embedded, wall-mounted | |
Appearance material | Metal shell | |
Net weight | ≤3.8KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

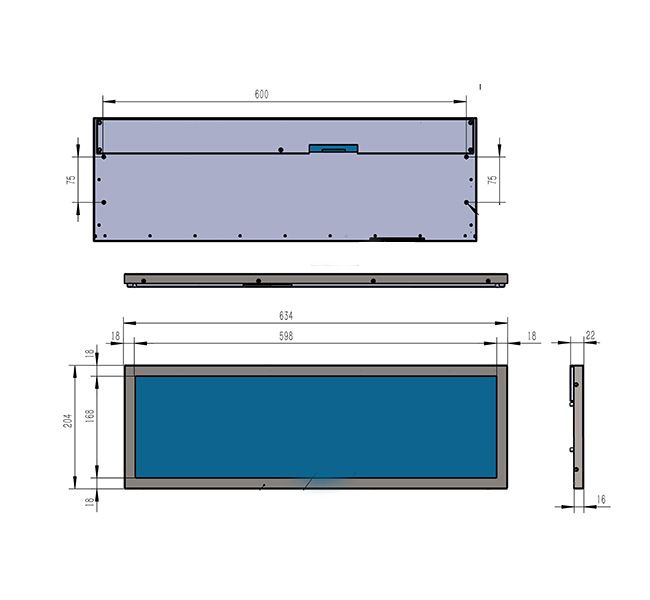

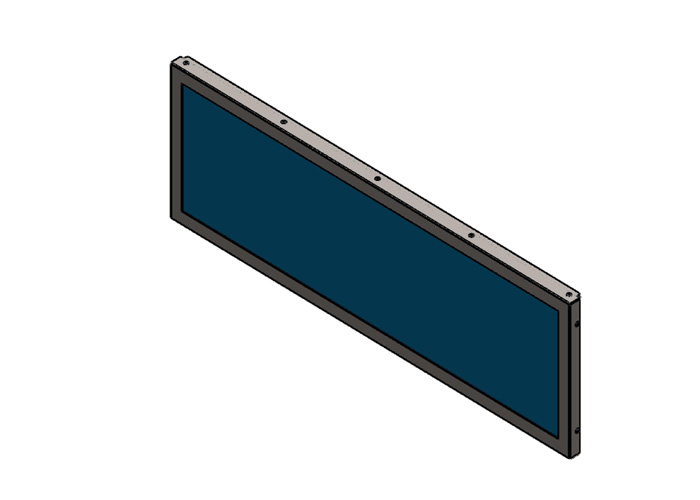

The design drawing as follows | ||

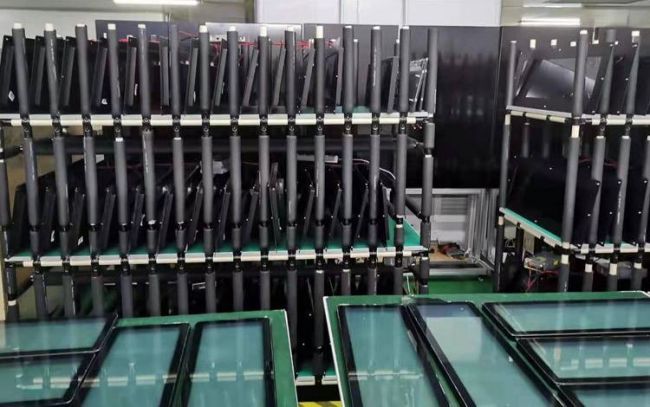

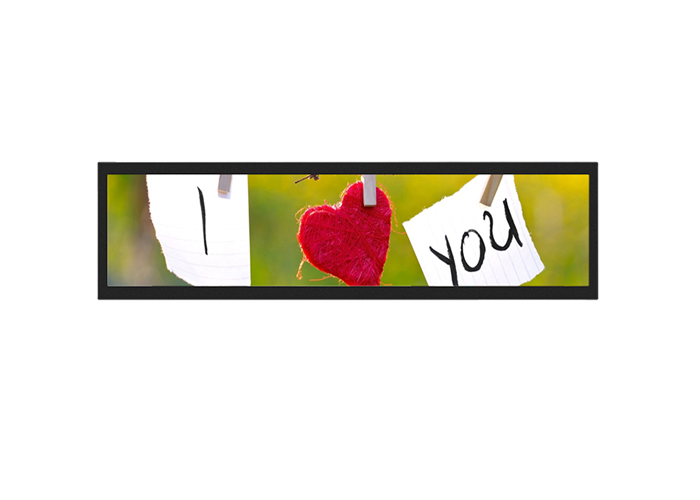

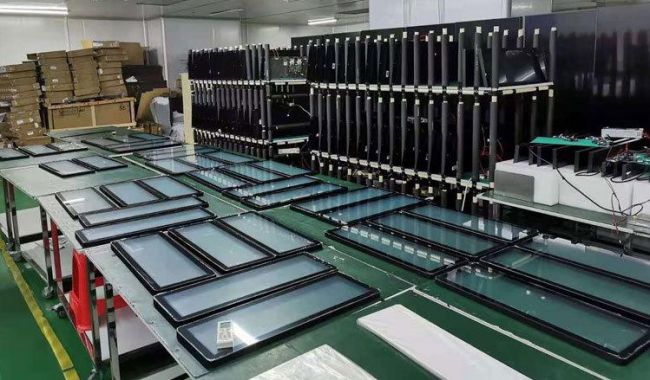

Physical Photo
If you would like to discuss your requirement or need any additional information on our 24.5 inch Stretched bar touch screen lcd monitors, then please do not hesitate to contact our sales team.
