28 inch Stretched touch bar display with HDMI/USB input
28 inch Stretched touch bar display with HDMI/USB input
ZXTLCD are a specialist in stretch touch bar display and have solutions in a variety of sizes and aspect ratios. High brightness sunlight readable options are available and touch overlays can be integrated for an interactive solution.
The specification | ||
Model No | Product model | ZXTLCD-BAR280MTQSP |
LCD Screen Panel | Screen size | 28" LCD Panel |
Active display area | 698.40(H) X 129.86(V)mm | |
Resolution | 1920(V) X 463(H) | |
Brightness | 400cd/m2 | |
Contrast ratio | 1200:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89°/89°/89°/89°(U/D/L/R) | |
Response time | 9.5ms | |
Lifespan | 50000 hours | |
Main board | CPU | MSTAR V56(TSUMV56RUU) |
Interfaces | USB2.0 | |
HDMI*2 | ||
TF/Audio/DC IN | ||
Touchscreen | Touch type | 10 points projected capacitive touchscreen |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤30W | |
Product size | 737(H)X168.5(V)X40.5(D)mm | |
Installation | Embedded, wall-mounted | |
Appearance material | Metal shell | |
Net weight | ≤4.1KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

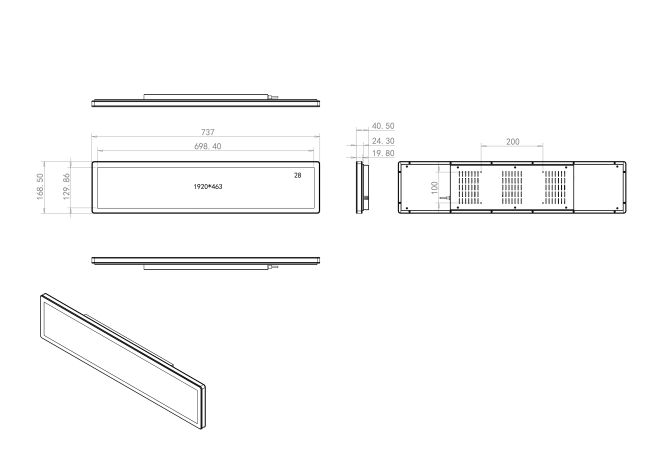

The design drawing as follows | ||

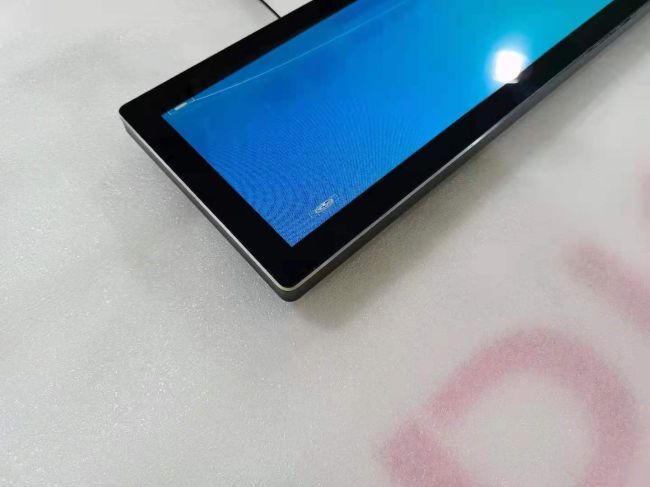

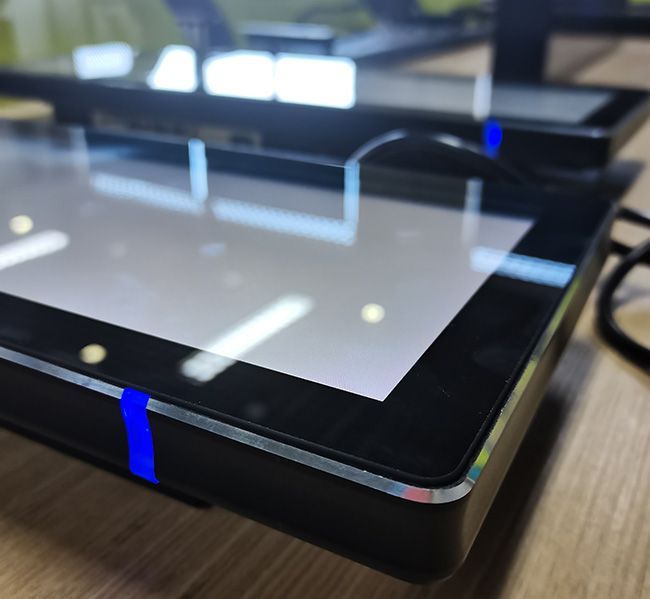

The physical Photo as follows :
If you would like to discuss your requirement or need any additional information on our 28 inch Stretched touch bar display, then please do not hesitate to contact our sales team.
