28.6 inch screen touch bar stretched lcd display with hdmi/usb input
28.6 inch screen touch bar stretched lcd display with hdmi/usb input
28.6 inch screen touch bar stretched lcd display can come as a Touchscreen Monitor with HDMI and connections to connect it just with a Android media player box or mini PC.
The specification | ||
Model No | Product model | ZXTLCD-BAR286MTQSP |
LCD Screen Panel | Screen size | 28.6" LCD Panel |
Active display area | 698.40(H) X 196.43(V)mm | |
Resolution | 1920(V) X 540(H) | |
Brightness | 400cd/m2 | |
Contrast ratio | 1200:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89°/89°/89°/89°(U/D/L/R) | |
Response time | 9.5ms | |
Lifespan | 50000 hours | |
Main board | CPU | MSTAR V56(TSUMV56RUU) |
Interfaces | USB2.0 | |
HDMI*2 | ||
TF/Audio/DC IN | ||
Touchscreen | Touch type | 10 points Projected Capacitive touchscreen |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤30W | |
Product size | 743.99(H)X242(V)X59.5(D)mm | |
Installation | Embedded, wall-mounted | |
Appearance material | Metal shell | |
Net weight | ≤4.5KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

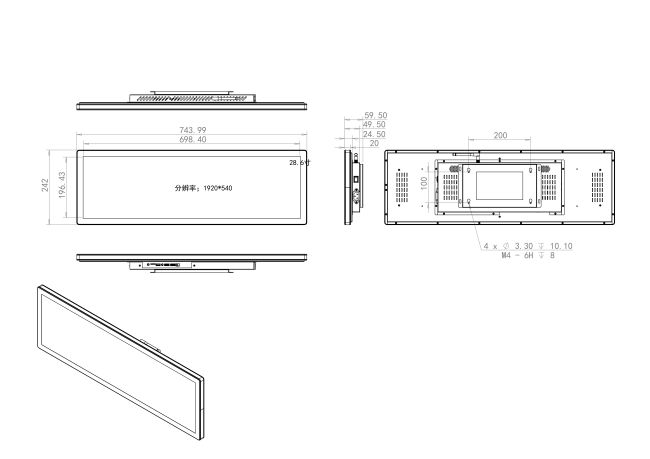

The design drawing as follows | ||

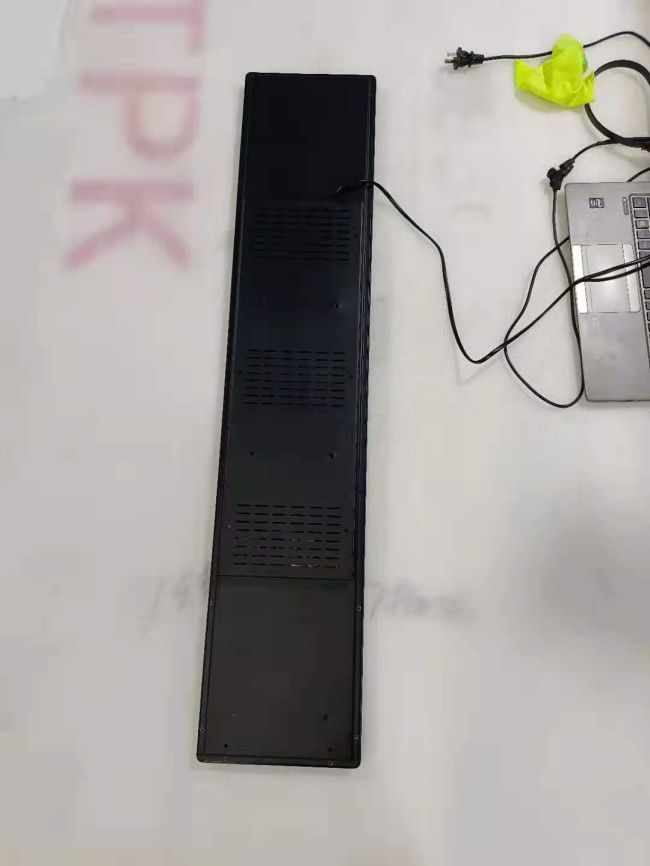

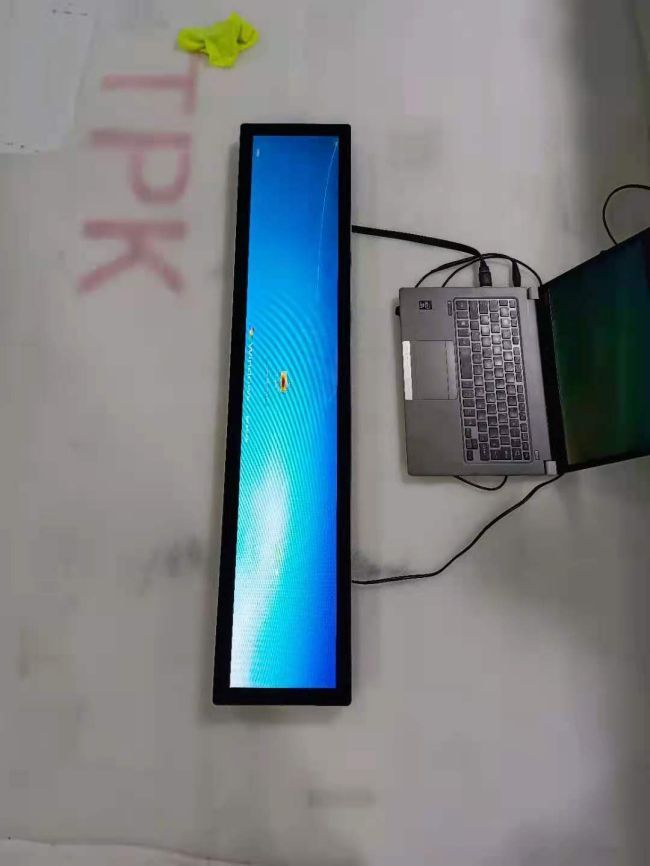

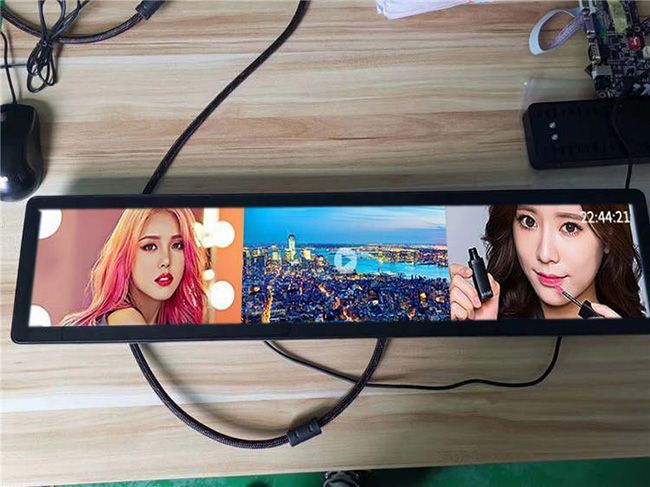

The physical photo as follows :
If you would like to discuss your requirement or need any additional information on our 28.6 inch screen touch bar stretched lcd display , then please do not hesitate to contact our sales team.
