35.5 inch Stretched Touchscreen Displays
35.5 inch Stretched Touchscreen Displays
ZXT LCD provide innovative Ultra-wide Stretched Touchscreen Displays, also known as BAR / bar type / bar top displays with touchscreen. The ultra-wide aspect ratio is perfect for grabbing your audience’s attention, and the high brightness display gives perfect visual performance in a wide variety of applications.
The specification | ||
Model No | Product model | ZXTLCD-BAR335MTQSP |
LCD Screen Panel | Screen size | 33.5" LCD Panel |
Active display area | 885.60(H) X 145(V)mm | |
Resolution | 1920(V) X 315(H) | |
Brightness | 400cd/m2 | |
Contrast ratio | 1200:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89°/89°/89°/89°(U/D/L/R) | |
Response time | 9.5ms | |
Lifespan | 50000 hours | |
Main board | CPU | MSTAR V56(TSUMV56RUU) |
Interfaces | USB2.0 | |
HDMI*2 | ||
TF/Audio/DC IN | ||
Touchscreen | Touch type | 10 points Projected Capacitive touchscreen |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤60W | |
Product size | 931.60(H)X191(V)X47.7(D)mm | |
Installation | Embedded, wall-mounted | |
Appearance material | Metal shell | |
Net weight | ≤4.8KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

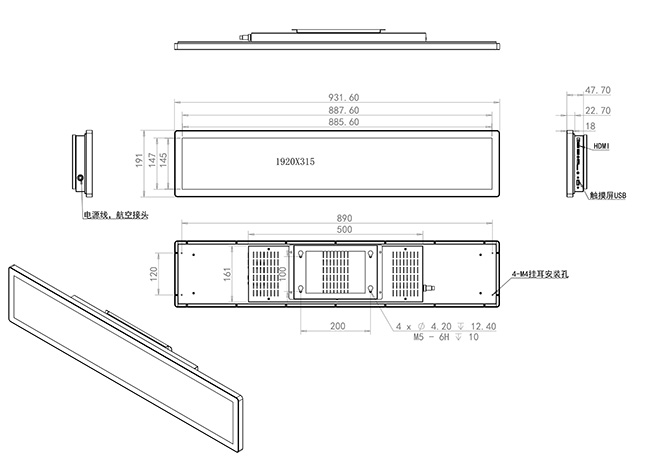

The design drawing as follows | ||

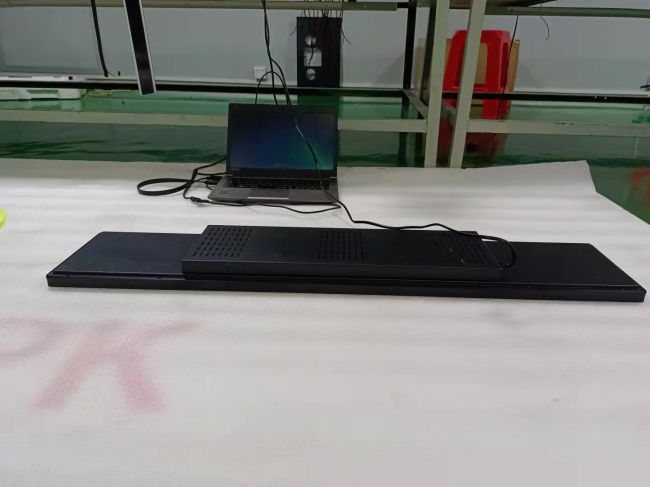

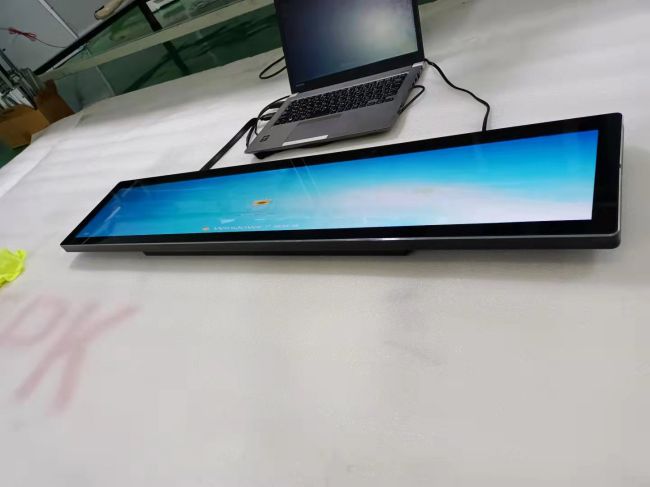

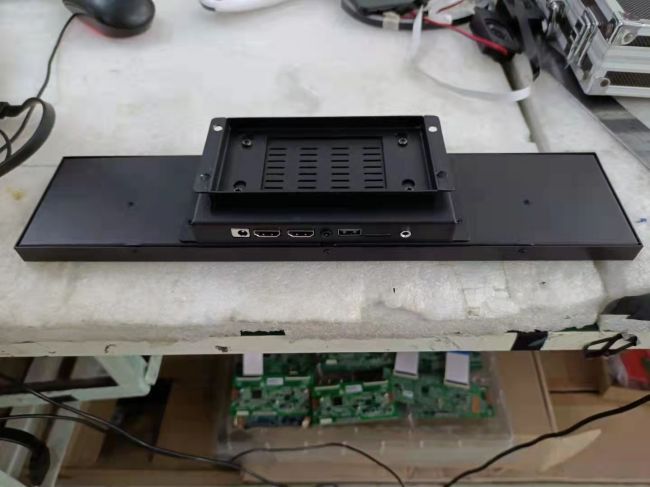

The physical photo as follows :
If you would like to discuss your requirement or need any additional information on our 35.5 inch Stretched Touchscreen Displays for advertisement, then please do not hesitate to contact our sales team.
