49.5 Inch 1000 Nits Super Bright Stretched Bar lcd ultra wide display

1)Resolution : 1920(RGB) X540 2)Active screen size: 1209.6(L) x 340.2(W)mm 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) 4)Display colors : 16.7M 5)Contrast ratio : 1500:1 6)Response Time : 10ms 7)Brightness: 400 cd/㎡(Typ.) 8) Power & Consumption : 100-240V(50/60Hz), 50w 9) Installation : Wall mounted 10) CPU : RK3288, Quad core processer; 11) RAM : 2GB ; ROM : 16GB 12) OS Version : Android 7.1 11)Outline dimension:1241.6(L)*372.2(W)X50(D)mm

Description Package Information Inquiry

ZXTLCD sunlight readable Stretched Bar lcd ultra wide display deliver unrivalled visual experiences in high bright applications such as in the outdoors. Featuring brightness levels over 1000 nit, these BAR displays deliver the richest images regardless of the ambient light condition. Where glare might be an issue, ZXTLCD can configure these stretched displays with and anti-glare glass panel giving you the confidences that your content will look great in any location.

bar digital signage 19.jpg

The specification

The specification
Model No	Product model	ZXTLCD-BAR495AHMJ
LCD Screen Panel	Screen size	49.5" LCD Panel
	Active display area	1209.6(H) X 340.2(V)mm
	Resolution	1920(V) X 540(H)
	Brightness	400cd/m2
	Contrast ratio	1500:1
	Display color	16.7M
	Backlight type	LED
	Viewing angles	89/89/89/89 (Typ.)(CR≥10)
	Response time	9.5ms
	Lifespan	>30000 Hrs（24Hrs*7)
Main board	CPU	RK3288, Quad core processor
	RAM	2gb
	ROM	16gb EMMC
	System	Android 7.1
	Network support	Support 2.4G WIFI connection
	RTC real time clock	Support timing on / off function
	Interfaces	2*USB2.0
	Interfaces	1*RJ45
	Video formats	AVI,H.264 ,MKV,MP4,MPEG etc.
	Audio formats	MP4、WAV、APE、FLAC、AAC etc.
	Photo formats	PG, JPEG, BMP, PNG, GIF,
machine specification	Operating voltage	AC 100~220V(50/60Hz)
	Power consumption	≤50W
	Product size	1241.6(H)X372.2(V)X50(D)mm
	Speaker	no
	Installation	wall-mounted
	Appearance material	Metal shell
	Net weight	≤7.5KG
	Surface treatment	Black metal paint
Environmental	Storage Environment	Temperature：-10℃～55℃
	Storage Environment	Humidity：10%～60% Non-Condensing
	Working Environment	Temperature：0℃～45℃
	Working Environment	Humidity：≤ 90℃ Non-Condensing
Packing list	Bar lcd display	1pcs
Packing list	Power Cable	1Pcs
Support special requirements customization

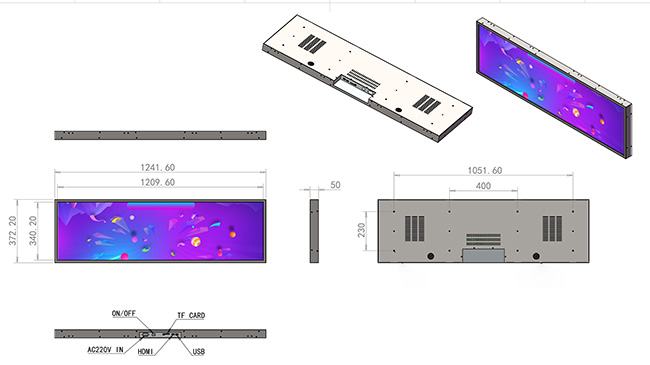

The design drawing as follows:

ultra wide lcd screen.jpg

Want To Get In Touch?

If you would like to discuss your requirement or need any additional information on our Stretched Bar lcd ultra wide display, and then please do not hesitate to contact our sales team.

Packing list
Product size	1241.6(H)X372.2(V)X50(D)mm
Net weight	7.5kg
Outer Package size	135X43X12cm
Gross weight	15kg
