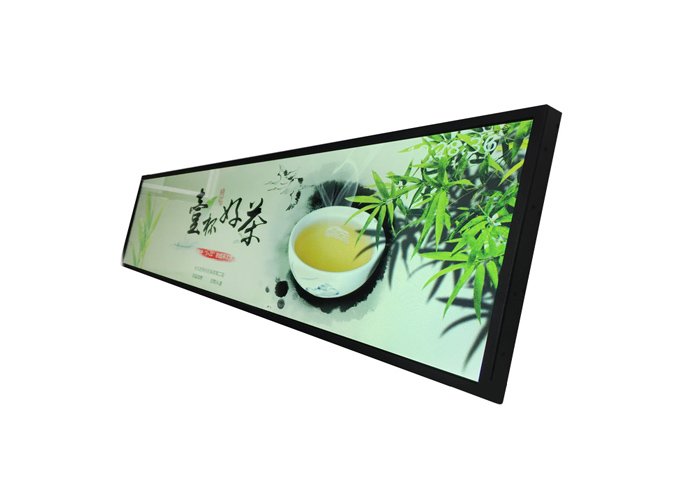

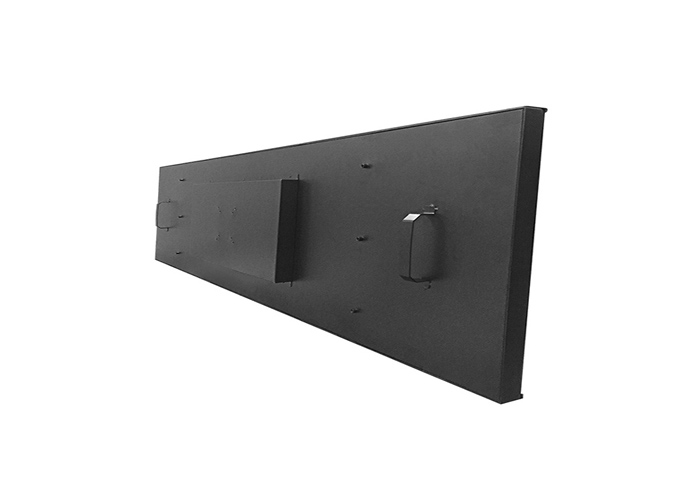

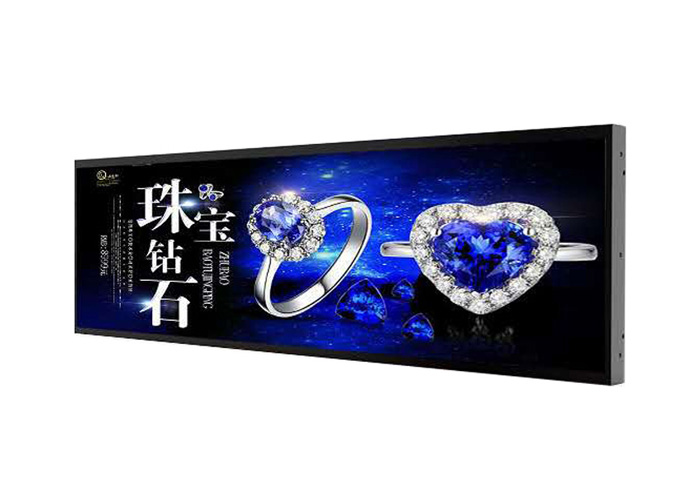

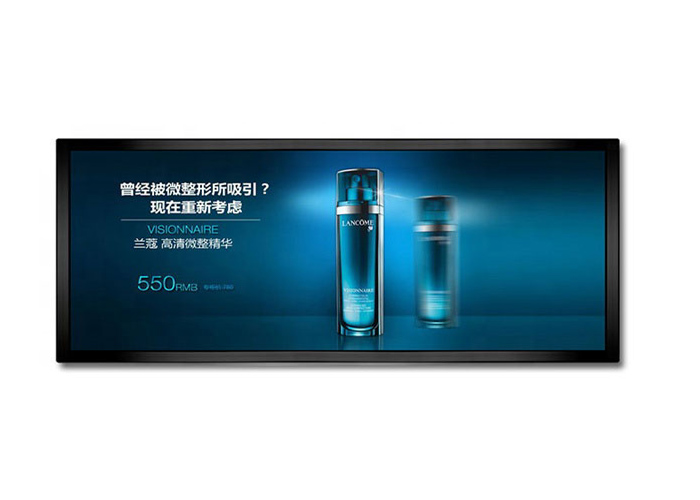

86 inch 4K Ultra Wide Stretched Bar LCD Monitors with HDMI input
86 inch 4K Ultra Wide Stretched Bar LCD Monitors with HDMI input
ZXT LCD provide innovative Ultra Wide Stretched Bar LCD Monitors, also known as BAR / bar type / bar top displays. The ultra-wide aspect ratio is perfect for grabbing your audience’s attention, and the high brightness display gives perfect visual performance in a wide variety of applications.
The specification | ||
Model No | Product model | ZXTLCD-BAR860MHMJ |
LCD Screen Panel | Screen size | 86" LCD Panel |
Active display area | 2148.48(H) X 598.32(V)mm | |
Resolution | 3840(V) X 1080(H) | |
Brightness | 700cd/m2 | |
Contrast ratio | 1000:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 178°(H) X 178°(V) | |
Response time | 9ms | |
Lifespan | 50000 hours | |
Monitor PCB Board | CPU | MSTAR V56(TSUMV56RUU) |
Interfaces | USB2.0 | |
HDMI*2 | ||
TF/Audio/DC IN | ||
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤70W | |
Product size | 2158.3(H)X611.2(V)X84.5(D)mm | |
Installation | Embedded, wall-mounted | |
Apperance material | Metal shell | |
Net weight | ≤18KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature：-20℃～60℃ |
Humidity：5%～95% | ||
Atmospheric Pressure：86kPa～104kPa | ||
Working Environment | Temperature：-10℃～50℃ | |
Humidity：10%～85% | ||
Atmospheric Pressure：86KPa～104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |

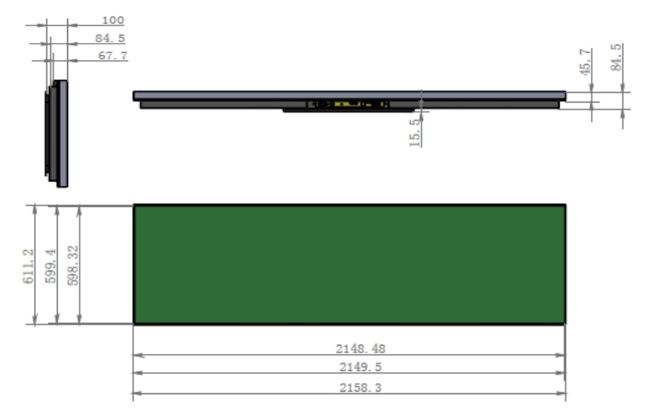

the design drawing as follows | ||

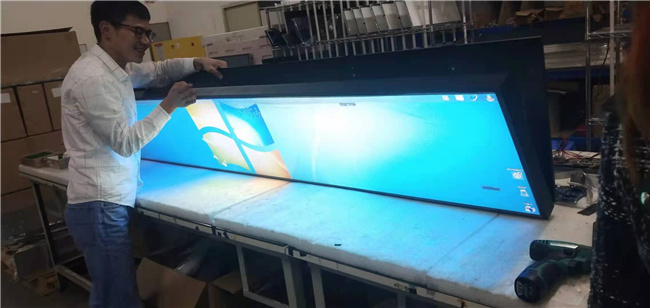

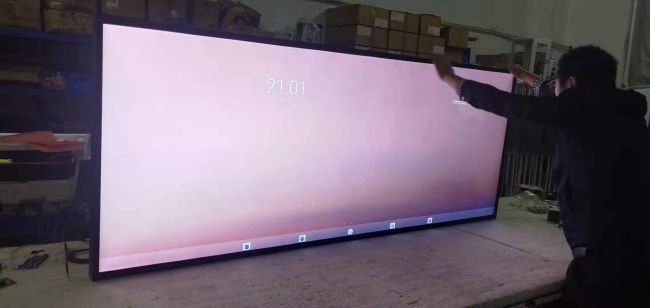

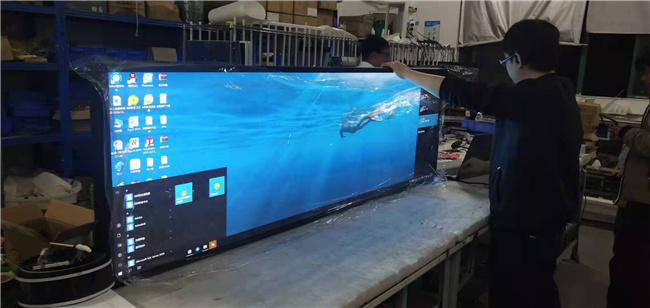

Physical Photo
Want To Get In Touch?
If you would like to discuss your requirement or need any additional information on our 86 inch 4K Ultra Wide Stretched Bar LCD Monitors, and then please do not hesitate to contact our sales team.
