70 inch Ultra-wide Stretched Digital Displays

1)Resolution : 3840(RGB) X1350 FHD 2)Active screen size: 541(Length) x 1538(Width)mm 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) 4)Display colors : 16.7M 5)Contrast ratio : 2000:1 6)Response Time : 9ms 7)Brightness: 500 cd/㎡(Typ.) 8) Power & Consumption : 100-240V(50/60Hz), 60w 9) Installation : standing 10) CPU : T972 A55 processer; 11) RAM : 2GB ; ROM : 8GB 12) OS Version : Android 9.0 13)Outline dimension:1648.48(L)*601(W)X30(D)mm
Description Package Information Inquiry

70 inch Ultra-wide Stretched Digital Displays


        The most popular utility for Ultra-wide Stretched Digital Displays is in public transportation displays, consisting of path presentations onboard trains, streetcars, and busses, advertising presentations in airports, bus stations, and train stations, and in numerous cases they may be hooked up on pinnacle of taxi cabs as mobile advert space.

lcd stretched display.jpg

The specification

Model No

Product model

ZXTLCD-BAR700AJSY

LCD Screen Panel

Screen size

70" LCD Panel

Active display area

541(H) X 1538(V)mm

Resolution

3840(V) X 1350(H)

Brightness

500cd/m2

Contrast ratio

2000:1

Display color

16.7M

Backlight type

WLED

Viewing angles

89/89/89/89 (Typ.)(CR≥10)

Response time

9ms

Lifespan

50000 hours

Monitor PCB Board

CPU

T972 ,Quad core A35

RAM

2gb

ROM

8gb EMMC

System

Android 9.0

Network support

10M/100M Auto-adjust Gigabit Ethernet , WIFI

RTC real time clock

Support timing on / off function

Interfaces

1*USB2.0

1*OTG USB

1*RJ45

Video formats

wmvaviflvrmrmvbmpeg tsmp4

Photo formats

BMPJPEGPNGGIF

machine specification

Operating voltage

100-240V(50/60Hz)

Power consumption

60W

Product size

1648.48(H)X601(V)X30(D)mm

Installation

Embedded, wall-mounted

Apperance material

Metal shell

Net weight

36KG

Surface treatment

Black metal paint

Environmental

Storage Environment

Temperature-20℃60℃

Humidity5%95%

Atmospheric Pressure86kPa104kPa

Working Environment

Temperature-10℃50℃

Humidity10%85%

Atmospheric Pressure86KPa104KPa

Packing list

Bar lcd display

1pcs

Power Cable

1Pcs

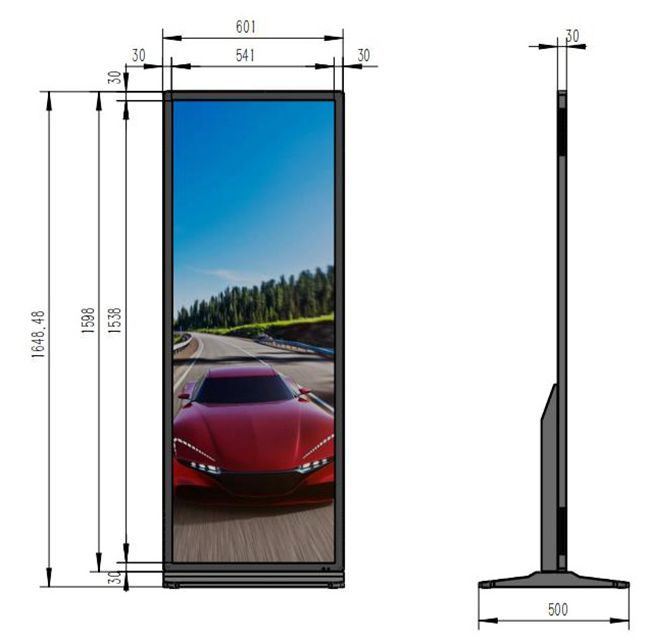

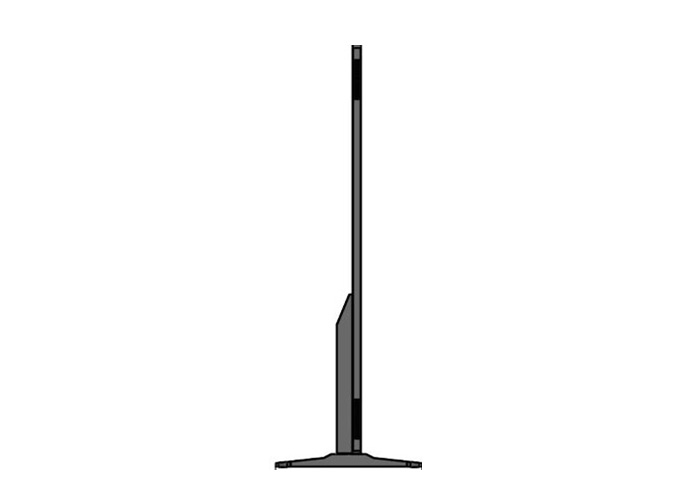

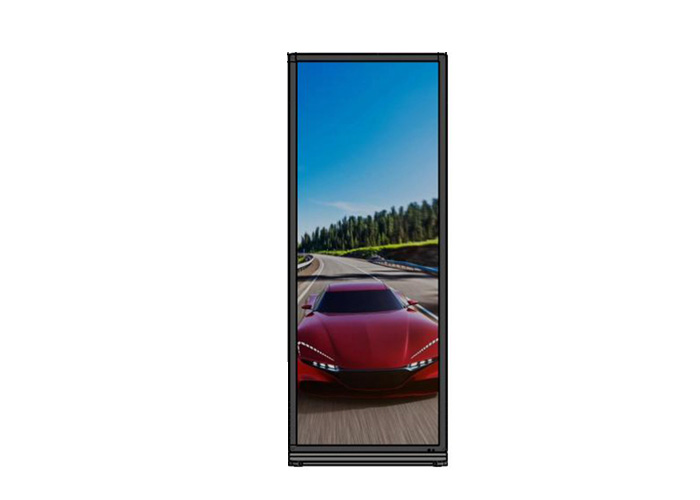

The design drawing as follows

bar type screen.jpg

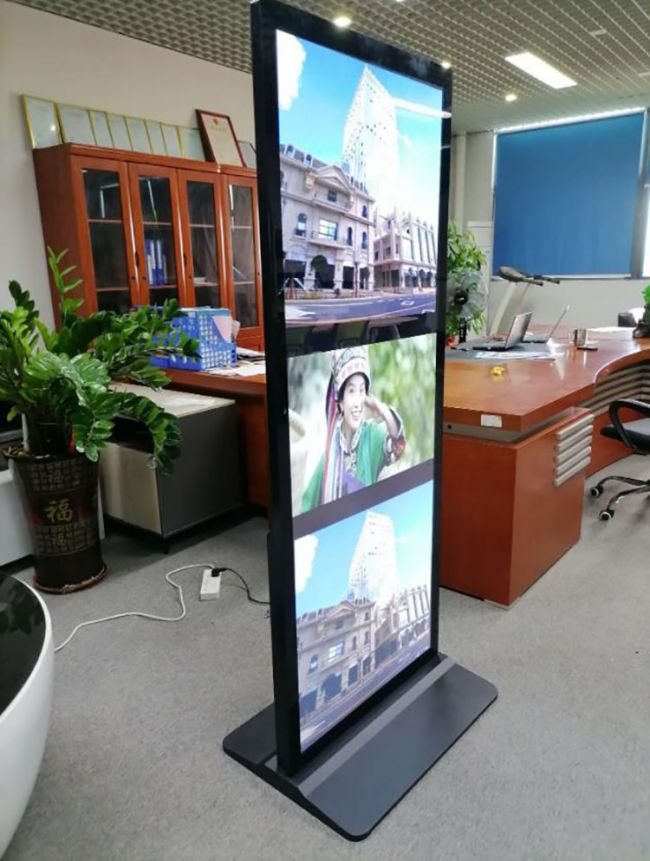

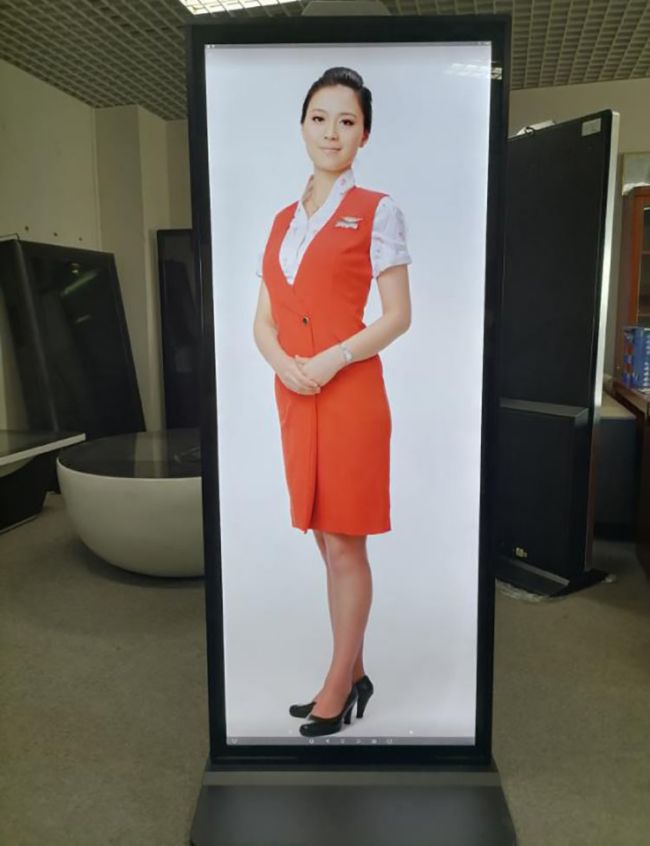

Physical photo for reference

stretched lcd panel.jpg

High brightness is local on many models, and is an choice for maximum different fashions making these presentations suitable for outside packages where sunlight readability is essential.Bar type Lcd Display

stretch lcd screen.jpg

Want To Get In Touch?

If you would like to discuss your requirement or need any additional information on our 70 inch Ultra-wide Stretched Digital Displays, and then please do not hesitate to contact our sales team.
