33.1 inch Capacitive Touchscreen Square LCD Display with HDMI input

1)Resolution : 942(RGB) X 942 2)Active screen size: 594(Length) x 594(Width)mm 3) Visual angle : 89/89/89/89 (Typ.)(CR≥10) 4)Display colors : 16.7M 5)Contrast ratio : 4000:1 6)Response Time : 9.5ms 7)Brightness: 400 cd/㎡(Typ.) 8) Power & Consumption : AC100 ~ 230V, 40w 9) Installation : Embedded, wall-mounted 10) CPU : Intel I5 processor, 4gb Ram and 64GB EMMC 11) Intweface : DC/HDMI/Audio/VGA/USB*2/LAN 12) Touchscreen : 10 points Projected Capacitive Touchscreen 13)Outline dimension:647(L)*647(W)X49.5(D)mm
Description Package Information Inquiry

33.1 inch Capacitive Touchscreen Square LCD Display with HDMI input

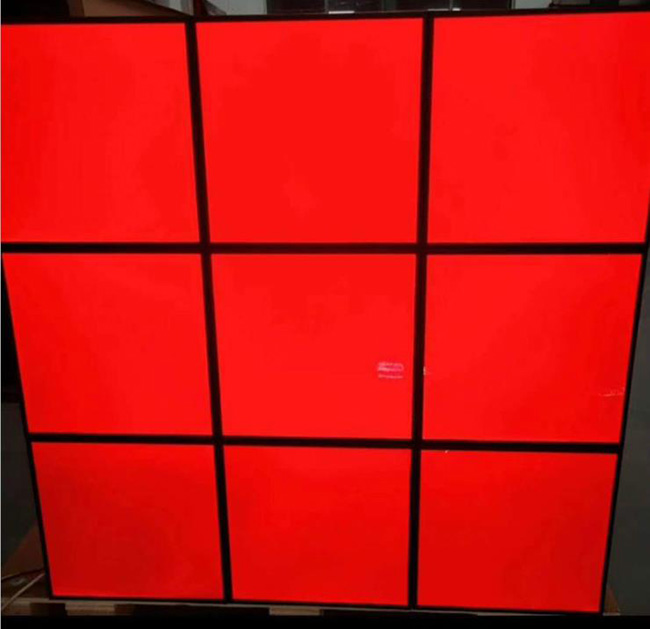

        33.1 inch Capacitive Touchscreen Square LCD Display can come as a Touchscreen Monitor with HDMI and LAN connections to daisy chain as a videowall or connect it just with a mediaplayer.

stretched bar touch screen.jpg

This model can also come with internal Android OS player, with Wi-Fi and LAN connection for internet connection, so yo can add online digital signage software to it.


It's easy to use as an advertisment tool. Make nice setups with many screens to have a high attention the digital presetation in your area.


The specification

Model No

Product model

ZXTLCD-BAR331MHMJ

LCD Screen Panel

Screen size

33.1" LCD Panel

Active display area

594(H) X 594(V)mm

Resolution

942(V) X 942(H)

Pixel Pitch

0.63X0.63mm

Aspect Ratio

1 : 1

Brightness

400cd/m2

Contrast ratio

4000:1

Display color

1.07B, 68% NTSC

Backlight type

a-Si TFT-LCD

Viewing angles

89/89/89/89 (Typ.)(CR≥10)

Response time

8 (Typ.)(G to G) ms

Lifespan

>30000 Hrs24Hrs*7)

Touchscreen

Touch type

10 points Projected Capacitive touchscreen

Main board

CPU

Intel I5 processor

Ram

4GB DDR4

Flash memory

64GB EMMC

Interfaces

DC/HDMI/Audio/VGA/USB*2/LAN

machine specification

Operating voltage

AC100 ~ 230V

Power consumption

40W

Product size

647(H)X647(V)X49.5(D)mm

Speaker

Speaker*2

Installation

Wall hanging

Appearance material

Metal shell

Net weight

9KG

color

White or Black

Environmental

Storage Environment

Temperature-10℃50

Humidity10%60% Non-Condensing

Working Environment

Temperature-2060

Humidity 90 Non-Condensing

Packing list

Squad lcd Monitor

1pcs

Power Cable

1Pcs

Package size and weight

Carton size

75*75*25cm

Number of boxes

2pcs/Carton

Carton weight

20kg

Support special requirements customization

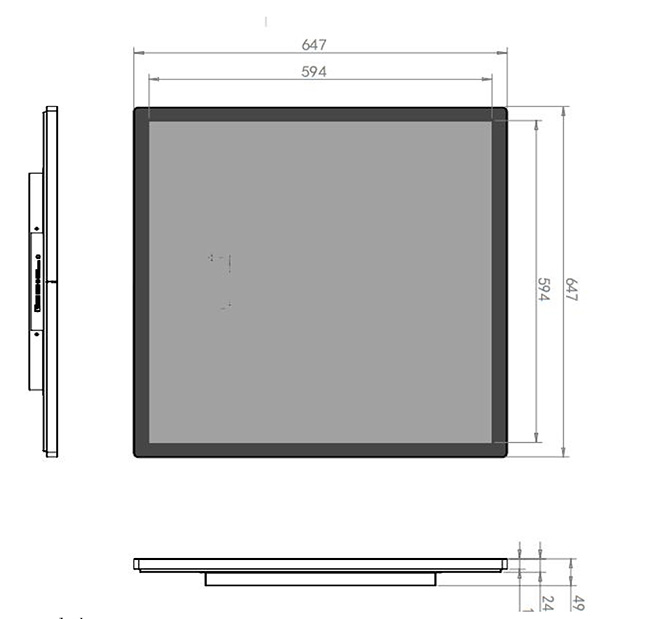

The design drawing as follows:

touch bar display.jpg

This Touchscreen Square LCD Display is mainly used in Museum, Exhibition halls, Shopping malls and Supermarkets.

screen touch bar.jpg

We can also supply other square sizes, such as 26,5 / 29,4 / 18.9 inch models.

touch bar screen.jpg

If you would like to discuss your requirement or need any additional information on our 33.1 inch Capacitive Touchscreen Square LCD Display, then please do not hesitate to contact our sales team.
